7251 / 7351 Slide Gate Operator
INSTALLATION AND PROGRAMMING MANUAL
18

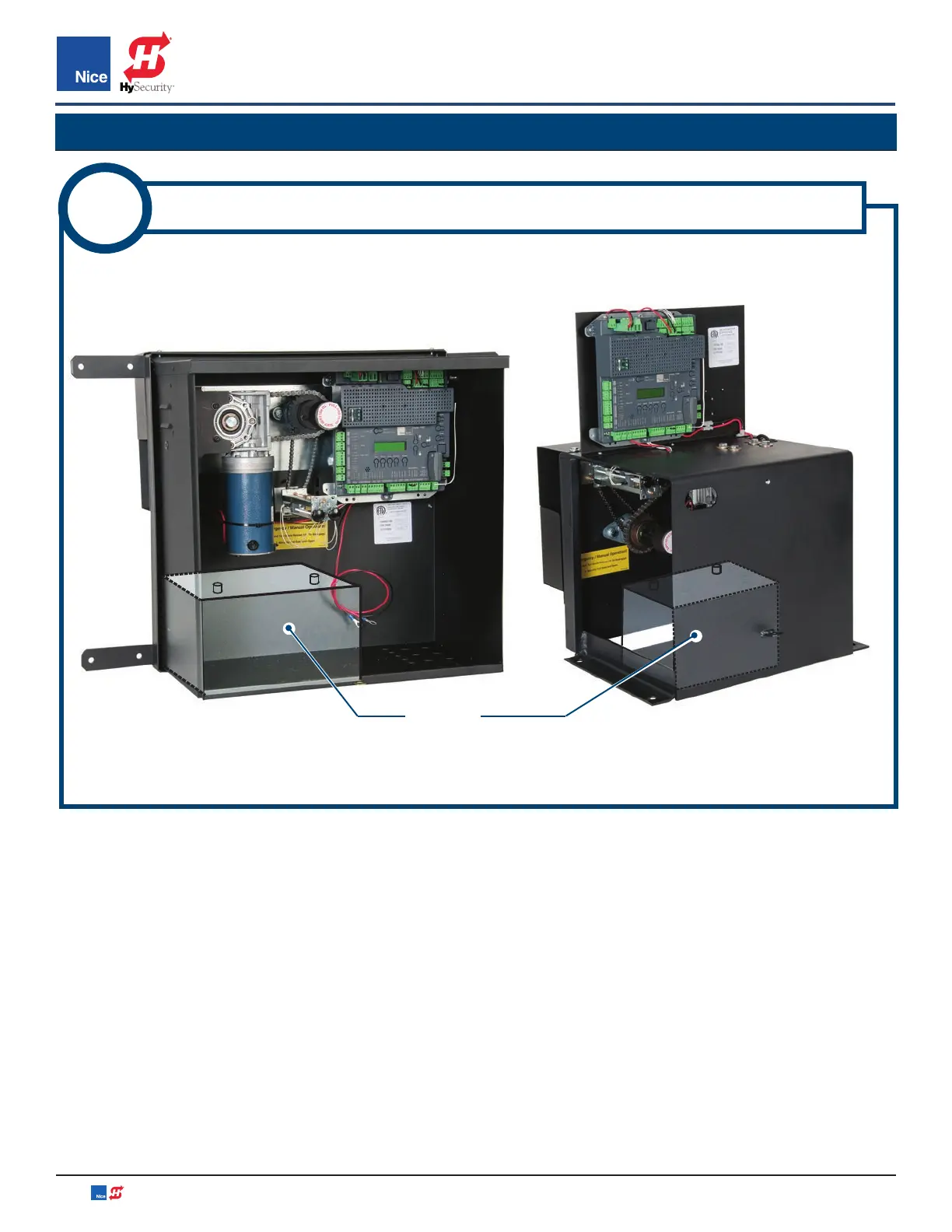

IMAGE 4-1: BATTERY POSITION IN OPERATOR CHASSIS
4
MOUNT BATTERY IN CONTROL BOX CHASSIS
Place battery in the operator chassis as shown below. For 7351, position battery terminals toward opening.
7251
CHASSIS
7351
CHASSIS
BATTERY
