7251 / 7351 Slide Gate Operator
INSTALLATION AND PROGRAMMING MANUAL
20
5A: 7251
-
CONTROL BOARD WIRING (CONT.)
NOTE: Gate
view is from
secure side.
WHITE: Close Limit
ORANGE: Open Limit
GREEN: Limit Common
MOTOR 1 MOTOR 2
WHITE
ORANGE
GREEN
GREEN
WHITE
DO NOT USE
7251 DUAL MOTOR
RED
BLACK
BLACK
RED
7251
LIMITS
LEFT-HAND
7251
LIMITS
RIGHT-HAND
7251
MOTOR
LEADS
7251
MOTOR
LEADS
ORANGE

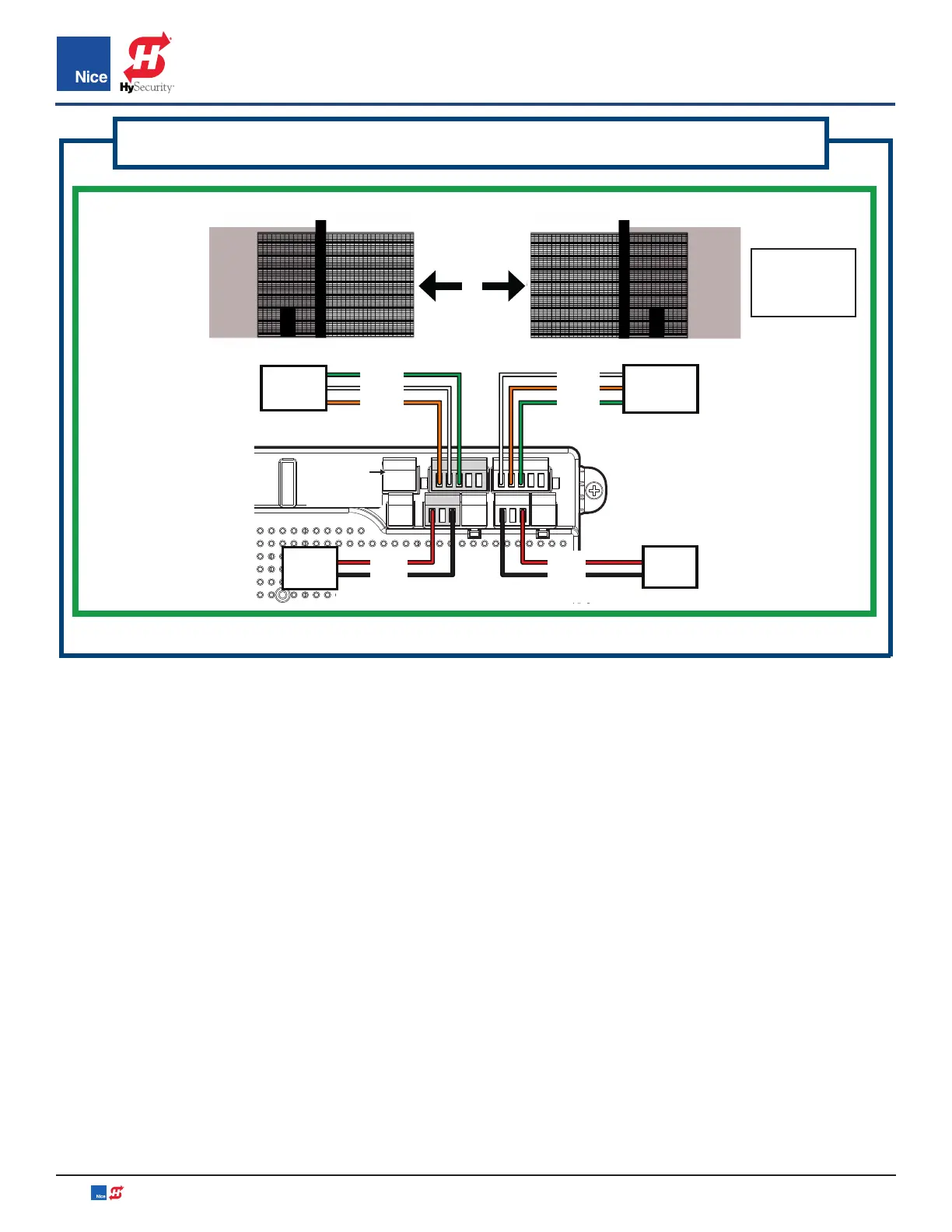

IMAGE 5A-3: DUAL GATE WIRING
MOTOR 2MOTOR 1
OPEN
LEFT/RIGHT
DUAL GATE
