9.4 CONNECTING AN SM-TYPE RADIO RECEIVER
The control unit has a slot for mounting radio receivers with SM
connector (optional accessories) belonging to the SMXI, OXI,
etc. families, which can be used to remotely control the control
unit through transmitters that intervene on the unit’s inputs.
f
Before installing a receiver, disconnect the power
supply to the control unit.

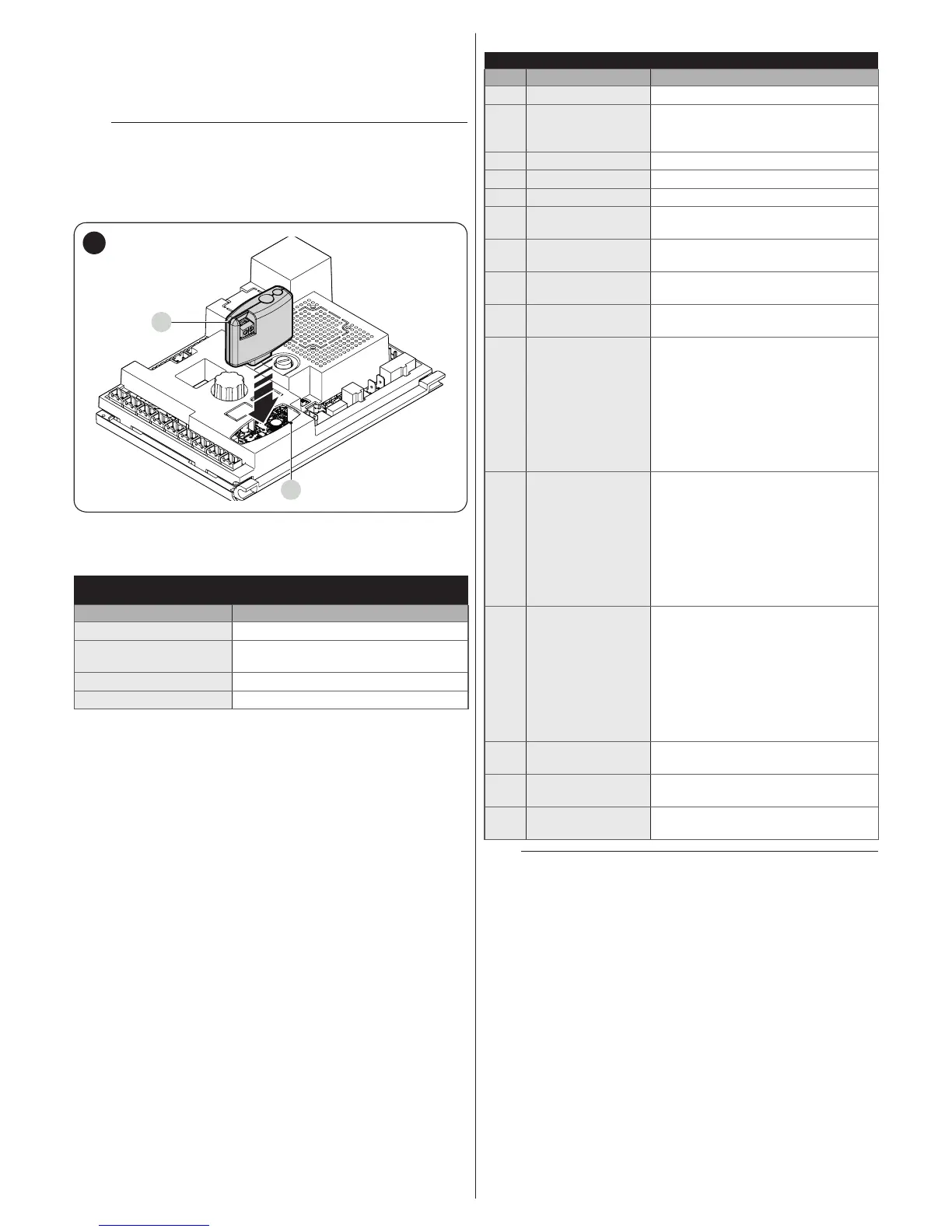

To install a receiver (“Figure 48”):
1. insert the receiver (A) in the appropriate slot (B) on the
control unit’s electronic board.
A
B
48
The association between the radio receiver output and the com-
mand executed by the motor is shown in “Table 16”:
Table 16
SMXI / SMXIS OR OXI / OXIFM / OXIT / OXITFM IN MODE 1 OR MODE
2
Receiver output Command
Output No. 1
“Step-by-Step”
Output No. 2
“Timer-controlled switching on of the
courtesy light”
Output No. 3
“Open”
Output No. 4
“Close”
If the OXI radio receiver used in “EXTENDED MODE” is installed,
it may send the commands shown in “Table 17“.
Table 17
OXI / OXIFM /OXIT / OXITFM IN MODE 2 EXTENDED
No. Command Description
1 Step-by-Step
“SbS” (Step-by-Step) command
2
Timer-controlled
switching on of
the courtesy light
“Timer-controlled switching on of the
courtesy light” command
3 Open
“Open” command
4 Close
“Close” command
5 Stop
Stops the manoeuvre
6
Condominium
Step-by-Step
Command in condominium mode
7
High priority Step-
by-Step
Commands also with the automation
locked or the commands enabled
8 Unlock and Open
Unlocks the locked automation and
carries out an opening manoeuvre
9 Unlock and Close
Unlocks the locked automation and
carries out a closing manoeuvre
10
Opens and locks
the automation
Triggers an opening manoeuvre
and, once this terminates, locks the
automation; the control unit will not
accept any command other than
“High priority Step-by-Step” and
automation “Unlock”, or (only from
Oview) the following commands:
“Unlock and close” and “Unlock and
open”
11
Closes and locks
the automation
Triggers a closing manoeuvre and,
once this terminates, locks the
automation; the control unit will not
accept any command other than
“High priority Step-by-Step” and
automation “Unlock”, or (only from
Oview) the following commands:
“Unlock and close” and “Unlock and
open”
12 Lock automation
Triggers the stoppage of the
manoeuvre and locks the
automation; the control unit will not
accept any command other than
“High priority Step-by-Step” and
automation “Unlock”, or (only from
Oview) the following commands:
“Unlock and close” and “Unlock and
open”
13
Release
automation
Triggers unlocking of the automation
and restores normal operation
14
MASTER barrier
Step-by-Step
“SbS” (Step-by-Step) command for
the MASTER barrier
15
SLAVE barrier
Step-by-Step
“SbS” (Step-by-Step) command for
the SLAVE barrier
l
For further information, consult the specic manual
of the receiver.
