Nice M5BAR Instructions And Warnings For Installation And Use

ENGLISH – 5

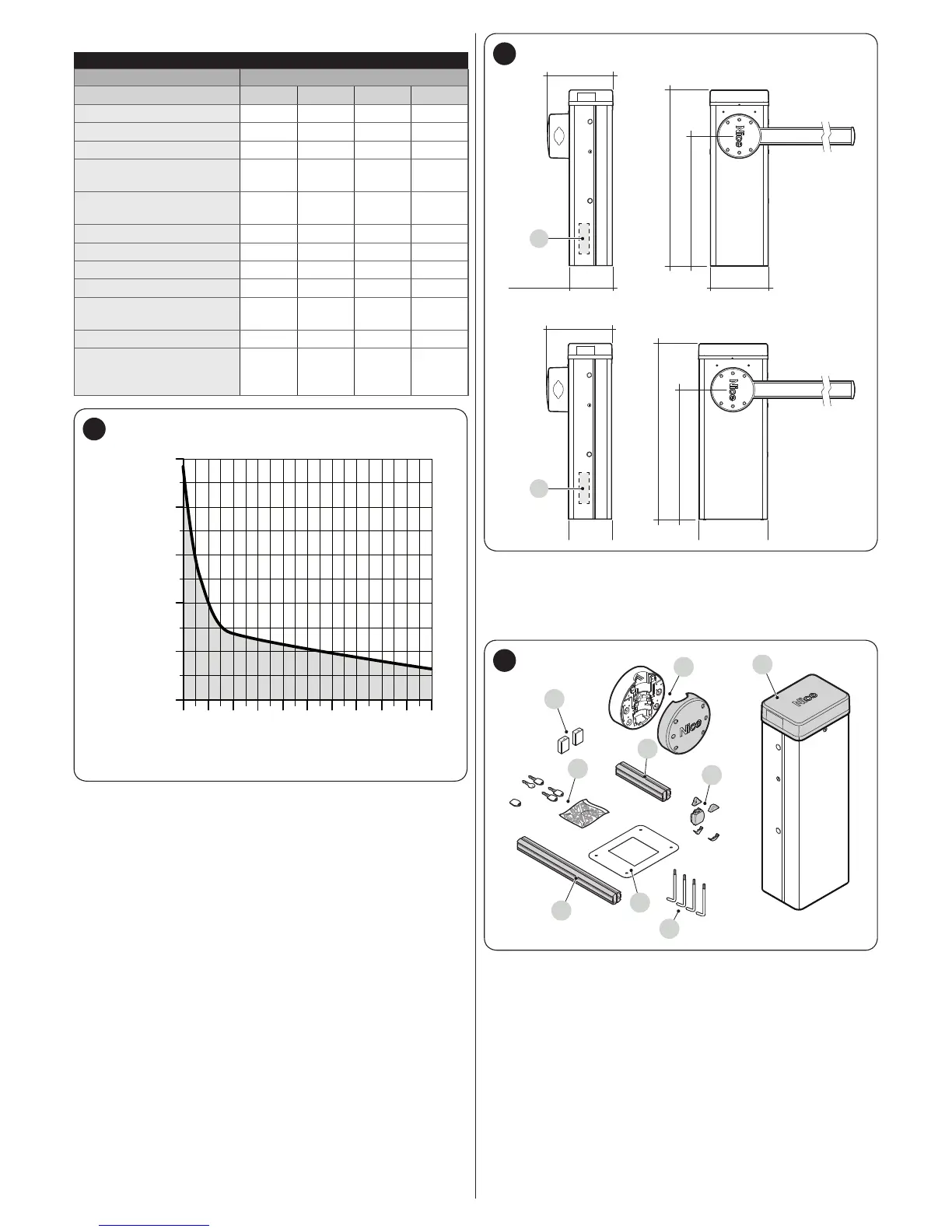

Table 2
PRODUCT DURABILITY
Severity index
M3BAR M5BAR M7BAR L9BAR
Joint for boom (XBA11)
20 15 - -
Level 3 speed
15 10 15 15
Level 2 speed
0 0 10 10
Manoeuvre interrupted
by photocell > 10%
15 10 15 15
Manoeuvre interrupted
by Stop > 10%
10 10 15 15
Mobile support (WA12)
- 10 10 10
Force equal to 5 or 6
10 10 10 10
Force equal to 4 or 5
5 5 5 5
Presence of salinity
10 10 10 10
Presence of dust and
sand
5 5 5 5
Aluminium skirt
- 5 5 5
Ambient temperature
above 40°C and below
0°C
5 5 5 5
100 20 30 40 50 60 70 80 90 100
Durability in cycles (No.)
Severity index (%)
400.000
0
800.000
1.200.000
1.600.000
2.000.000
2
3.3 PRODUCT IDENTIFICATION AND OVERALL
DIMENSIONS
The overall dimensions and the label (A), which allows for iden-
tifying the product, are shown in “Figure 3”.
464,5 mm
M-BAR
L-BAR
298,5 mm
464,5 mm
298,5 mm
500 mm
1219,5 mm
900 mm
1219,5 mm
900 mm
400 mm
A
A
3
3.4 RECEIPT OF THE PRODUCT
All the components contained in the product’s packaging are
illustrated and listed below.
A
B
C
F
G
I
H
D
E
4
A Boom gate with integrated control unit
B Boom cover and support
C 2 photocell boxes
D Aluminium connector 300 mm long (only present on
M3BAR, M5BAR, M5BAR)
E Fixed boom cap; 2 connectors for rubber impact protec-
tors; 2 connectors without rubber impact protectors
F Keys for manually locking and unlocking the boom; key
for the cover lock; metal smallware (screws, washers,
etc.)
G Foundation plate
H 4 anchor bolts
I Aluminium connector 700 mm long (only present on
L9BAR)
