Nice M5BAR Instructions And Warnings For Installation And Use

ENGLISH – 9

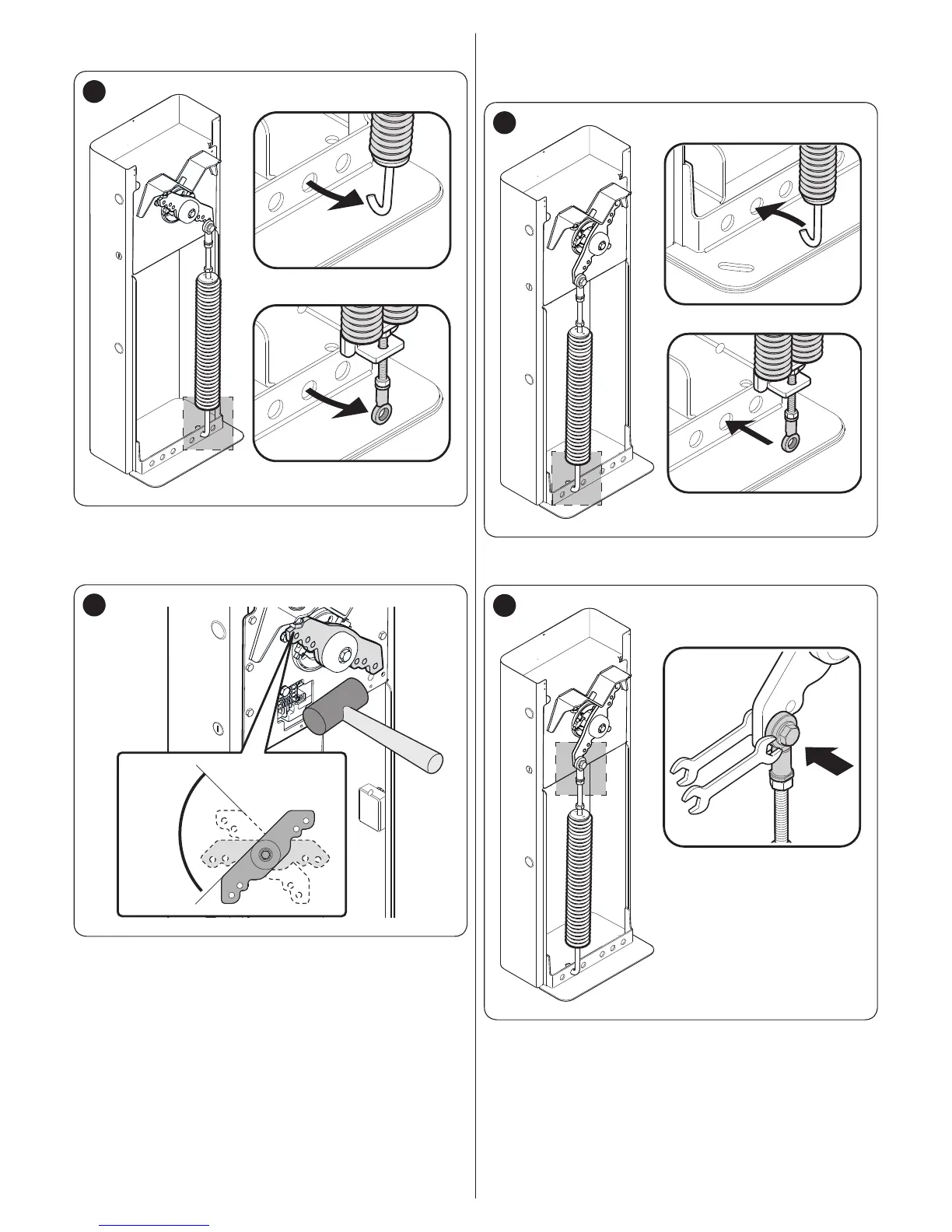

5. remove the spring from the drilled plate, located at the
base of the cubicle
M3BAR-M5BAR
M7BAR-L9BAR
11
6. to set the boom’s closing manoeuvre on the right of the
cubicle, unlock the gearmotor (refer to the “Manually
unlocking and locking the gearmotor” paragraph) and
turn the balancing lever by 90°
90°
12
7. with the help of “Figure 6”, identify the new holes to which
to attach the two ends of the spring
8. fasten the spring to the drilled plate, located at the base
of the cubicle
M3BAR-M5BAR
M7BAR-L9BAR
13
9. fasten the spring’s eyelet to the balancing lever, tighten-
ing the bolt vigorously
M3BAR-M5BAR-M7BAR
L9BAR
14
10. if the gearmotor was previously unlocked, lock it again.
