Mercury 310 Automated Gate System
Installation and Programming Manual
1717

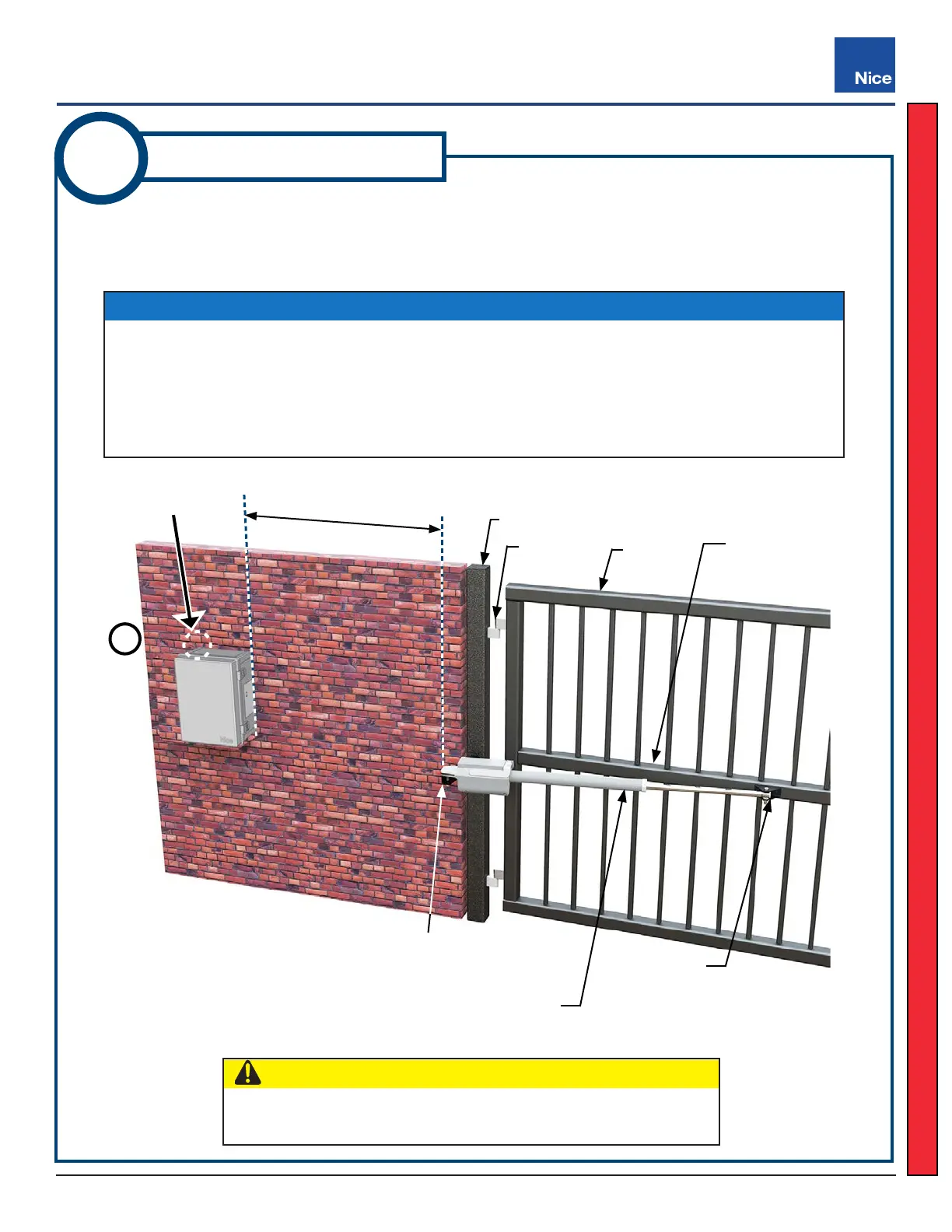

ACBOX310 Installation Location
2
Install ACBOX310
Mount control box on same side as primary actuator (for dual gate systems, the same side as the actuator
with shorter harness) and at least six feet away from pivot arm or any moving part of the gate (see image
below).
CAUTION
Do not mount the control box where the person using the control
box to operate the gate can come in contact with the gate!
NOTICE
’ This image shows a typical installation. The control box may be installed on either side of the
wall depending on which direction the gate opens or where a person monitoring the gate will
be located.
’ Hardware for the control box is NOT included. Drill holes as needed in mounting surface and use
hardware capable of supporting the weight of the control box (approximately 26.4 lbs [11 kg]).
ACBOX310
Control Control
BoxBox
WallWall
Gate
Hinge Post
Gate
Hinge
Structural Gate
Support
1.
Pivot Arm Location
(in line with structural
support on gate)
Linear Actuator
Gate Bracket
6 Foot Minimum
Mounting Feet x4
(see Instruction 1)
