6.1 TESTING
To run the test:
1. verify that all the instructions stated in the “GENERAL
SAFETY WARNINGS AND PRECAUTIONS” chapter have
been strictly observed
2. unlock the gearmotor as indicated in the “Manually un-
locking and locking the gearmotor” paragraph
3. make sure that the leaf can be moved manually during both
the opening and closing phases with a force not exceeding
225N (roughly 51 lb (23 Kg))
4. lock the gearmotor
5. using the control devices (selector, radio transmitter, etc.),
test the door opening, closing and stoppage phases, en-
suring that the movement matches the specications. Run
several tests to check that the door moves smoothly and
check for any defects in the assembly or adjustment and any
possible points of friction
6. To check the operation of the photocells and ensure that
there is no interference with other devices, pass a cylinder
(2in (5 cm) diameter, 12in (30 cm) length) on the optical axis,
rst near the “TX” photocell then near “RX” photocell and,
lastly, at the mid-point between the two and verify that in
all these cases the device is triggered, switching from the
active to the alarm status and vice-versa; make sure that it
triggers the intended action in the control unit; for example,
that it triggers the reversal of movement during the closing
manoeuvre.
7. check, one-by-one, that all safety devices mounted on the
system (photocells, sensitive edges, etc.) work properly.
Each time a device intervenes, the “Bluebus” LED on the
control unit will emit two faster ashes to conrm the rec-
ognition
8. if potentially dangerous situations due to the movement of
the leaves have been prevented by limiting the impact force,
the latter must be measured according to the EN 12445
standard and, if the “motor force” control is used to aid the
system in reducing the impact force, it is necessary to test
various adjustments to nd the one that gives the best re-
sults.
6.2 COMMISSIONING
a
Commissioning can only be performed after all
testing phases have been successfully completed.
a
Before commissioning the automation, ensure that
the owner is properly informed of all residual risks
and hazards.
a
The gate cannot be commissioned partially or un-
der “temporary” conditions.
To commission the automation:
1. compile the automation’s technical le, which must include
the following documents: overall drawing of the automa-
tion, wiring diagram, risk assessment and relative solutions
adopted, the manufacturer’s declaration of conformity for all
devices used and the declaration of conformity compiled by
the installer

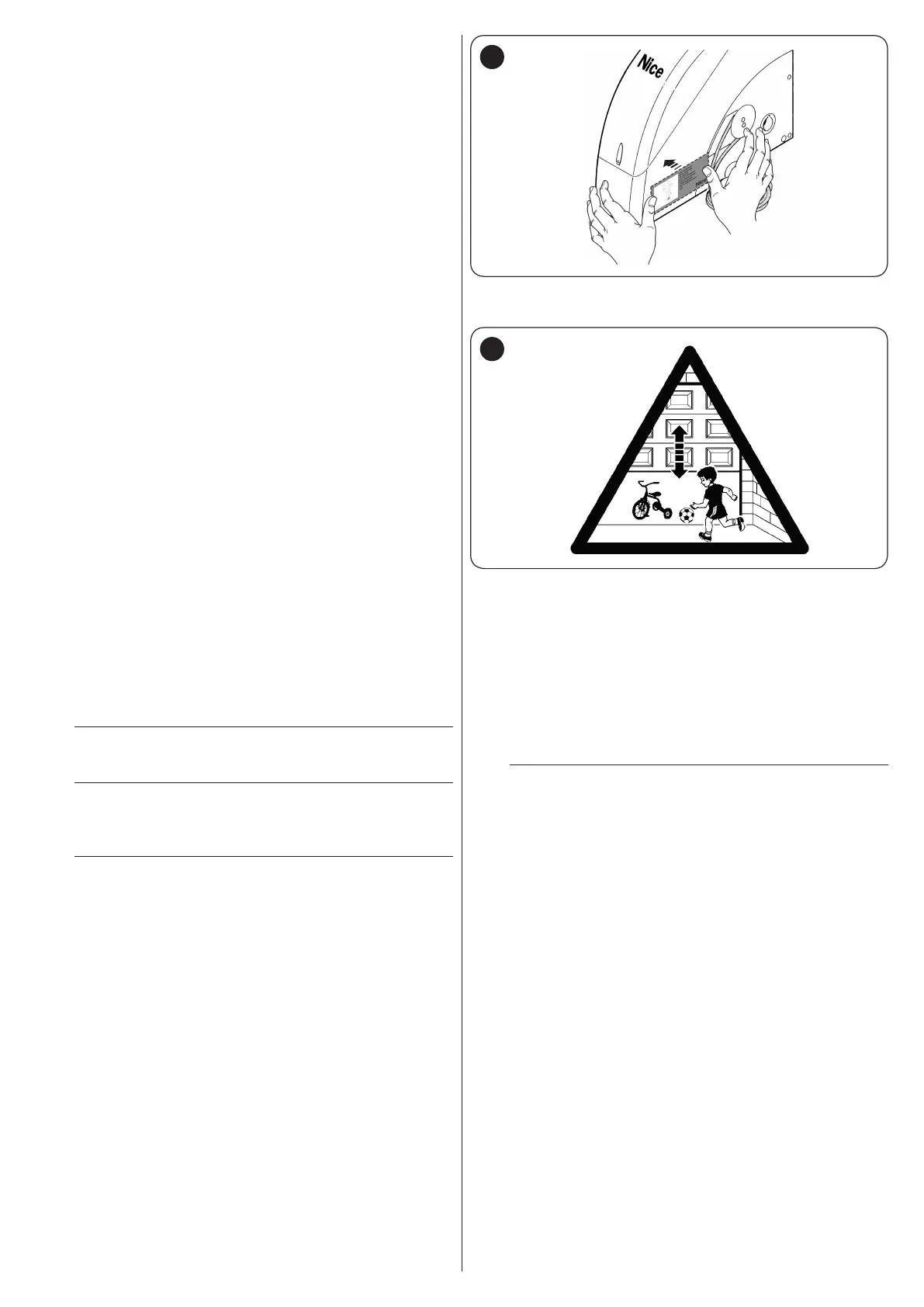

2. permanently afx a label or plate in the vicinity of the door,
indicating the operations for the door unlocking and manual
manoeuvres “Figure 21“
21
3. permanently afx a label or sign to the door with the follow-
ing image (minimum height 2in 3/8 (60 mm)) “Figure 22“
22
4. afx a label to the door containing at least the following data:
type of automation, name and address of manufacturer (per-
son responsible for commissioning), serial number, year of
manufacture and the CE mark
5. compile the declaration of conformity of the automation and
hand it to the owner of the automation
6. compile the User Manual of the automation and hand it to
the owner of the automation
7. compile and provide the owner with the automation’s “Main-
tenance schedule”, containing the maintenance instructions
for all the automation’s devices.
l
For all the above-mentioned documentation, Nice –
through its technical assistance service – provides
the following: pre-completed forms.
