TITAN 912L Linear Actuator
Installation Reference Manual
1212
7
SET TITAN 912L OPEN & CLOSE LIMITS
To mechanically “teach” the actuator the rough open and close limits, ensure the machanical release is still
open on the actuator, then move the gate manually as follows:
1. Close gate(s) all the way (Detail A) to desired close limit position.
2. Open gate(s) all the way (Detail B) to desired open limit position.
3. Place gates in mid position (Detail C).
4. CLOSE mechanical release of actuator, but do not lock it yet.
A
B
C

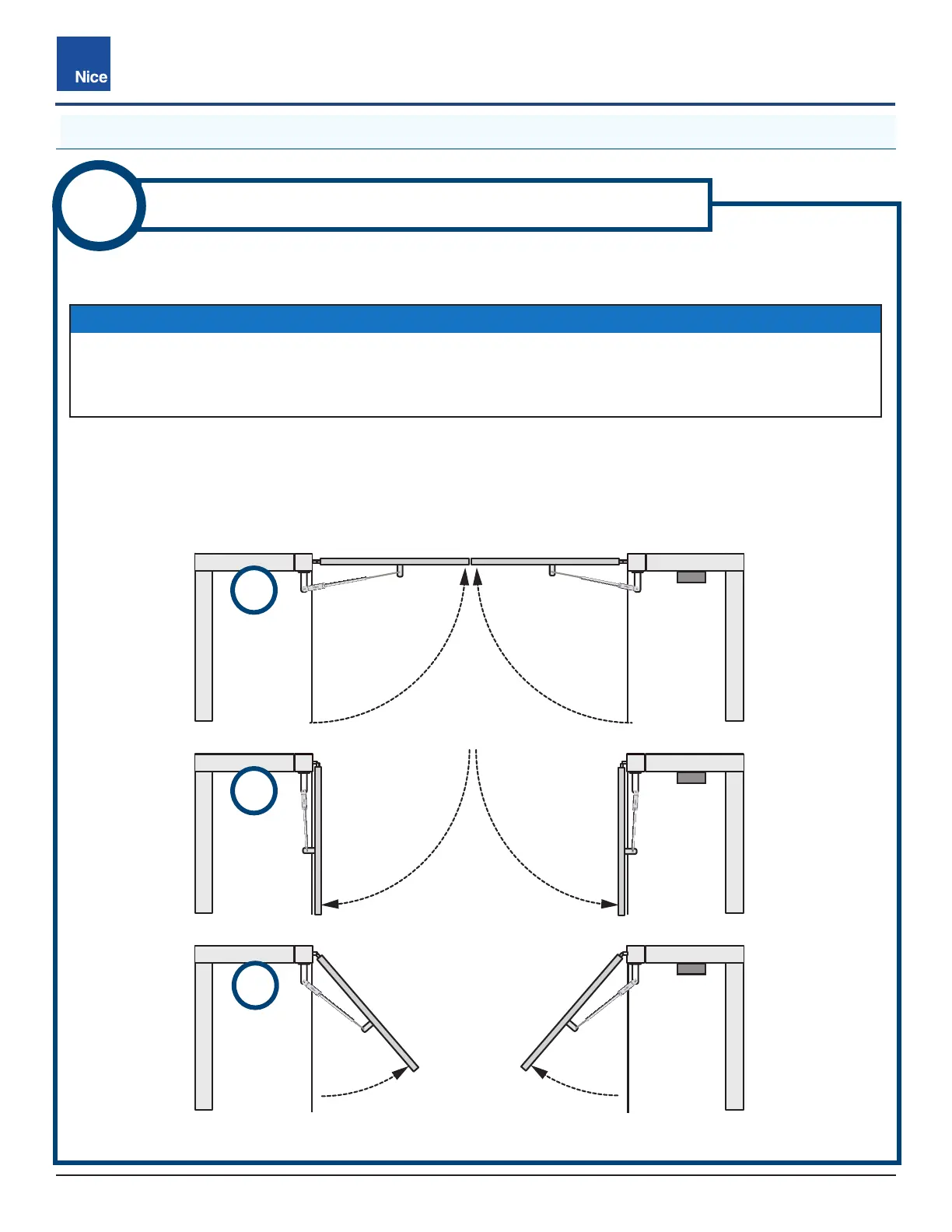

FIG-7: MANUAL SETTING OF CLOSE/OPEN LIMITS (DETAIL A, B, C)
4.1 MANUALLY SET GATE OPEN/CLOSE LIMITS
IMPORTANT!
If done carefully, manually setting the gate limits may not require further adjustment. Do not push the gate
past the desired limits (open an close) or they must be re-adjusted per Fine adjustment INSTRUCTION
10A or 10B in this manual.
