TITAN 912L Linear Actuator
Installation Reference Manual
55
LEFT SIDE VERTICAL VIEW

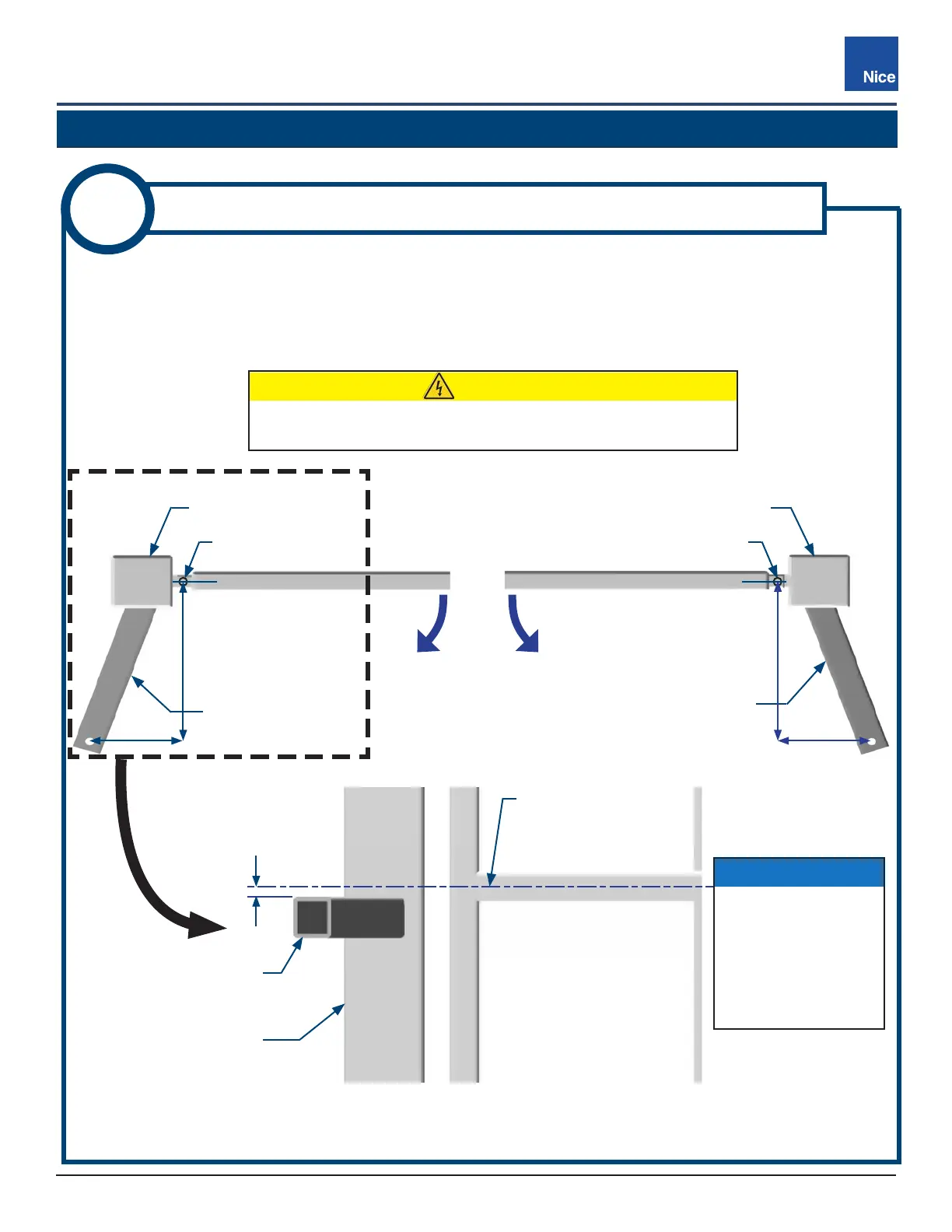

FIG-1A: "PULL TO OPEN" PIVOT ARM INSTALLATION
INSTALL PIVOT ARM TO GATE: PULL-TO-OPEN
1A
1. Securely mount the pivot arm to the hinge post (FIG-1A).
2. If necessary, cut pivot arm for correct placement of the actuator mounting hole. Measurements are
taken from the center of pivot of the gate hinge.
3. It is strongly recommended to weld the pivot arm to the hinge post.
TOP VIEW
6” 6”
13” 13”
SECTION 4: ACTUATOR - MECHANICAL INSTALLATION
PIVOT ARM
PIVOT ARM
PIVOT ARM
1/2”
HINGE POST
CENTER OF HINGE
CENTER LINE OF
ATTACHMENT POINT
FOR GATE BRACKET
CENTER OF HINGE
GATE CLOSED
DIRECTION OF OPENING
HINGE POST HINGE POST
NOTICE
Welding is much
preferred, but Nice
offers an optional
bolt-on pivot arm
(P/N 446) for when
welding is not
possible.
CAUTION
Never weld parts to the gate or posts when the control board
is powered to avoid irrepairable damage to the circuit board!
