TITAN 912L Linear Actuator
Installation Reference Manual
2323

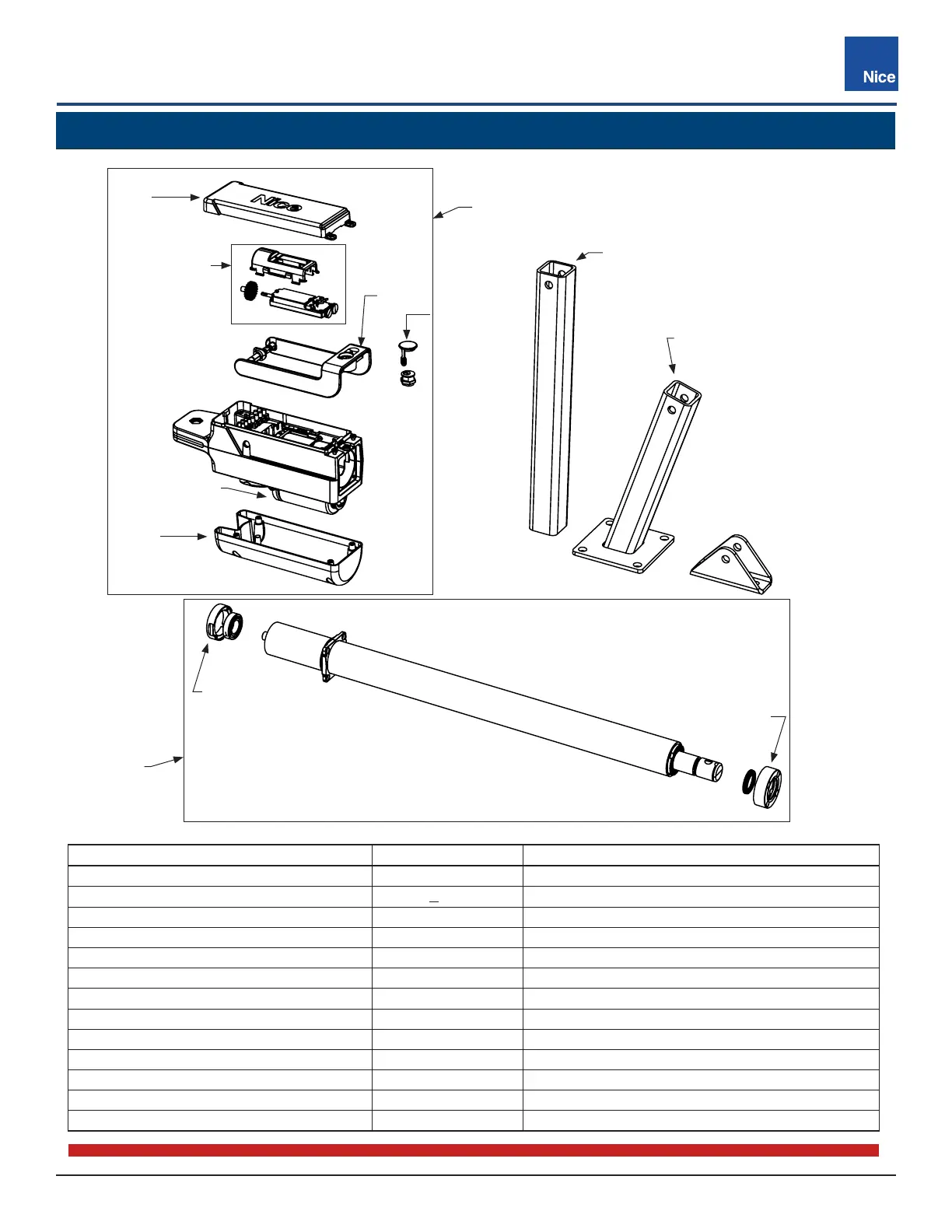

SECTION 8: PART DRAWINGS
Part Name Part Number TITAN12L/12L1 Models
Bearing and Holder SPTA16002 all
Bracket, Gate Attach, 1/4 inch (Black or Anodized)
10025215 or PD0959A0000 all
Bracket, Pivot, Bolt-On 446 all
Bracket, Pivot, Weld-On 1116 all
Cover, Motor, Bottom PD0929A3000 all
Cover, Upper PD0942A3000 all
Lever SPTA16001 all
Limit Switch SPSWLSM-01 all
Lock Cylinder Kit, Key and Latch 10070000 all
Motor, Electric, 12V SPSW912-01 all
Motor, Electric, 12V, Complete SPAMG205A00 all
Seal and Housing SPTA16003 all
Tube, Assembly, 912L SPAMG206A00 all
Limit Switch
Seal and Housing
Motor, Electric, 12V, Complete
Bearing and Holder
Cover, Bottom,
Motor
Cover, Upper,
Motor
Lever
Lock Cylinder Kit,
Key and Latch
Bracket, Pivot, Weld-On
Bracket, Gate Attach
Bracket, Pivot, Bolt-On
Tube, Assembly, 912L
Motor, Electric, 12V
