TITAN 912L Linear Actuator
Installation Reference Manual
66

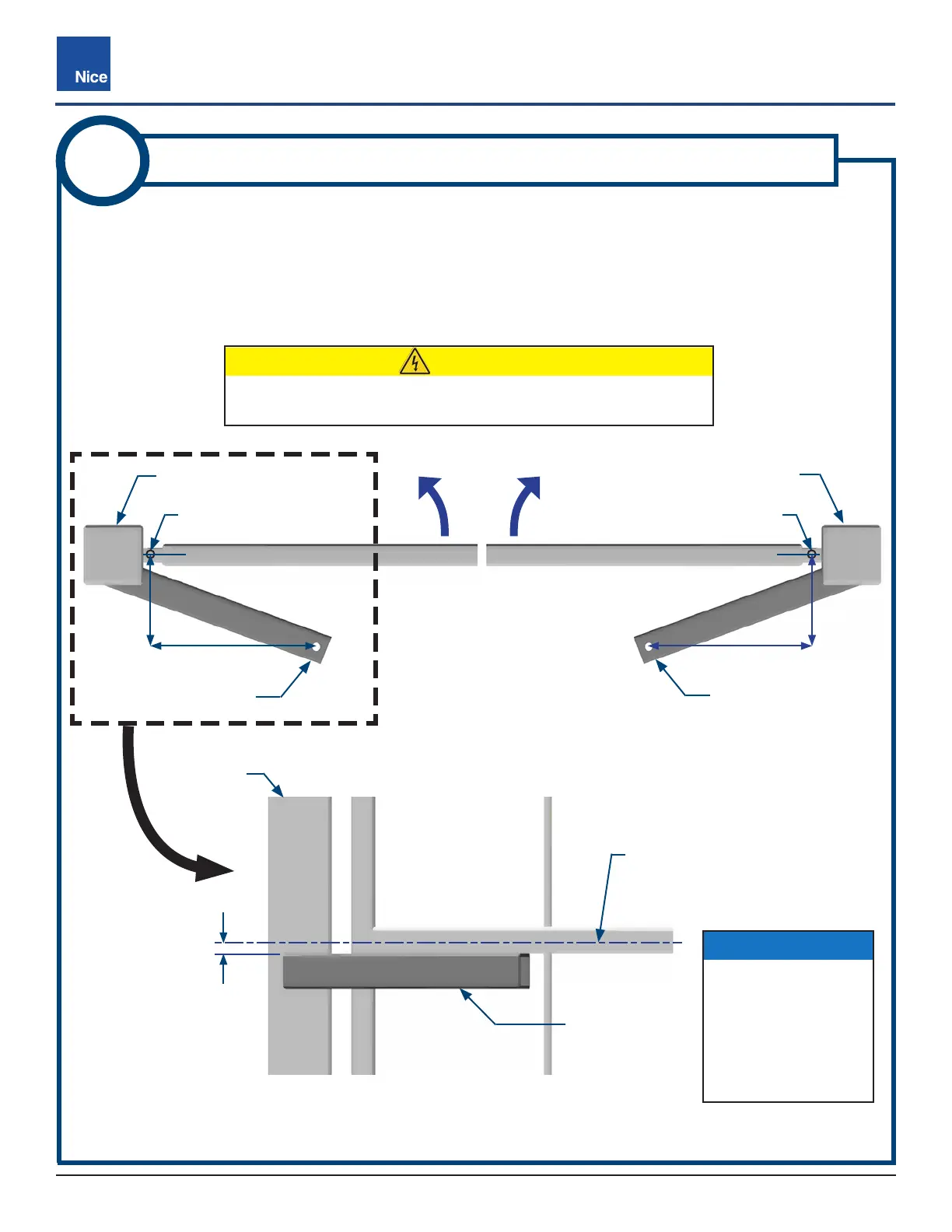

FIG-1B: "PUSH TO OPEN" PIVOT ARM INSTALLATION
1B
1. Securely mount the pivot arm to the hinge post (FIG-1B).
2. If necessary, cut pivot arm for correct placement of the actuator mounting hole. Measurements are
taken from the center of pivot of the gate hinge.
3. It is strongly recommended to weld the pivot arm to the metal post.
INSTALL PIVOT ARM TO GATE: PUSH-TO-OPEN
TOP VIEW
6” 6”
11”
11”
PIVOT ARM
PIVOT ARM
PIVOT ARM
1/2”
HINGE POST
CENTER OF
HINGE
HINGE POST
HINGE POST
CENTER LINE OF
ATTACHMENT POINT
FOR GATE BRACKET
CENTER OF HINGE
GATE CLOSED
DIRECTION OF OPENING
LEFT SIDE VERTICAL VIEW
CAUTION
Never weld parts to the gate or posts when the control board
is powered to avoid irrepairable damage to the circuit board!
NOTICE
Welding is much
preferred, but Nice
offers an optional
bolt-on pivot arm
(P/N 446) for when
welding is not
possible.
www.ApolloGateOpeners.com | (800) 878-7829 | Sales@ApolloGateOpeners.com
