TITAN 912L Linear Actuator
Installation Reference Manual
2121
1. Open the actuator mechanical release, remove two Torx 25 screws, and lift off cover.
2. Remove plastic cap covering the two adjustment wheels (IMAGE 10-1).
3. Press the CLOSE button on the control board. The gate should close until it hits the CLOSE limit switch
(LED = RED).
4. If the CLOSE limit is not acceptable (gate closed too far or not enough), open the gate partially and turn
the RETRACT Adjustment Wheel a few revolutions in “retract more” or “retract less” direction as needed,
then press CLOSE button on the Control Board again to check.
5. Check gate and repeat Steps 4-5 as necessary until CLOSE limit is acceptable.
6. Press the OPEN button on control board. The gate should open until it hits the OPEN limit switch (LED
= GREEN).
7. If the OPEN limit is not acceptable (gate open too far or not open all the way), close the gate partially and
then turn the EXTEND Adjustment Wheel a few revolutions in “extend more” or “extend less” direction
and press OPEN button on the Control Board again to check.
8. Check gate and repeat Steps 7-8 as necessary until OPEN limit is acceptable.
9. When nished, replace plastic cap on switches, afx actuator cover with two screws, engage mechanical
release, and lock.
10B
SETTING ACTUATOR FINE LIMITS: PUSH-TO-OPEN

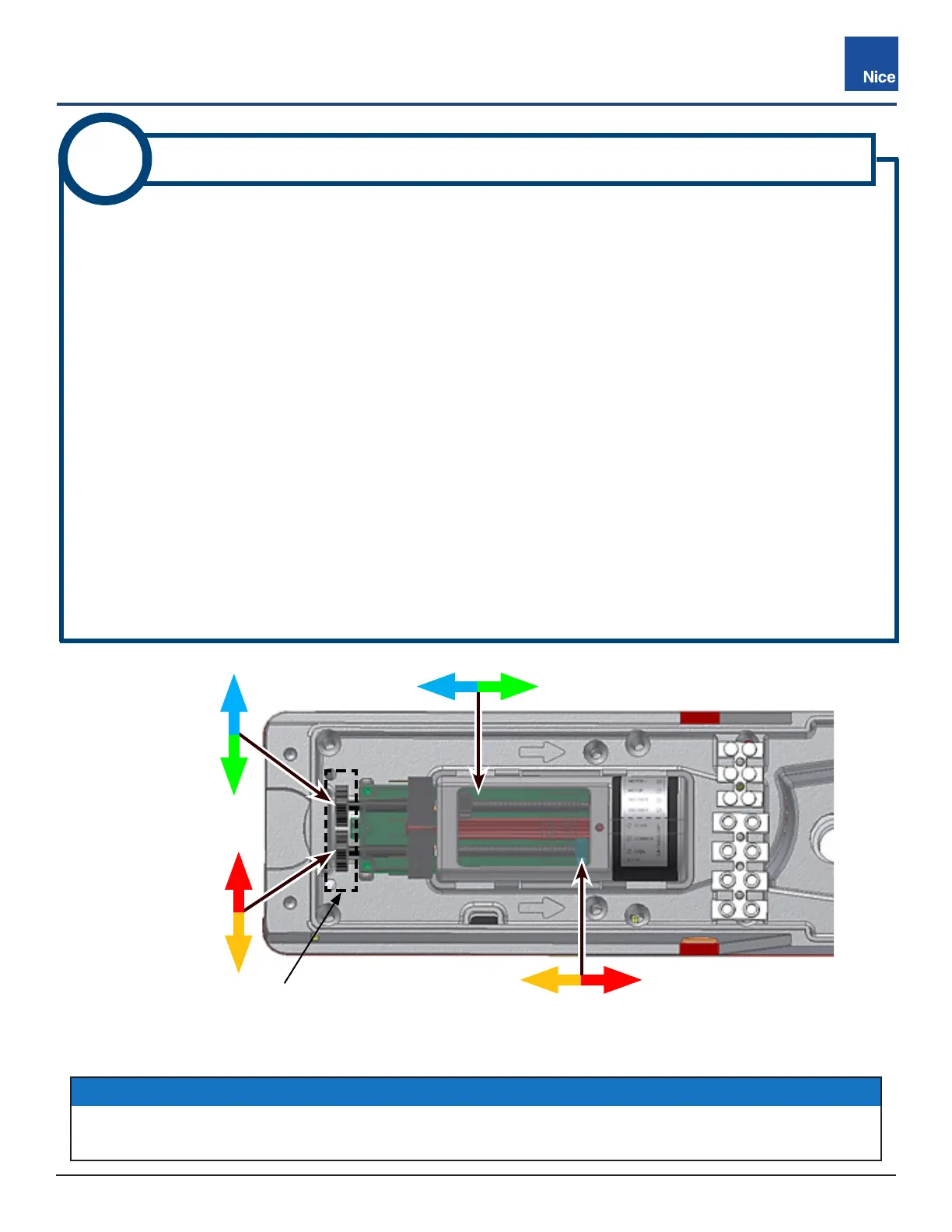

IMAGE 10-1: TITANL1 ACTUATOR LIMIT SWITCH LOCATIONS & FUNCTIONS
RETRACT
WHEEL
RETRACT LESS
RETRACT LESS
RETRACT MORE
RETRACT MORE
RETRACT CAM MOVEMENT
EXTEND CAM MOVEMENT
EXTEND MORE
EXTEND LESS
Remove rubber cap
to expose wheels
EXTEND
WHEEL
EXTEND MORE
EXTEND LESS
IMPORTANT!
The actuator key MUST be left with the customer. The key is necessary to use the mechanical release of
the actuator if the gate must be manually opened in the event of loss of power.
