21 F600 Step By Step Guide

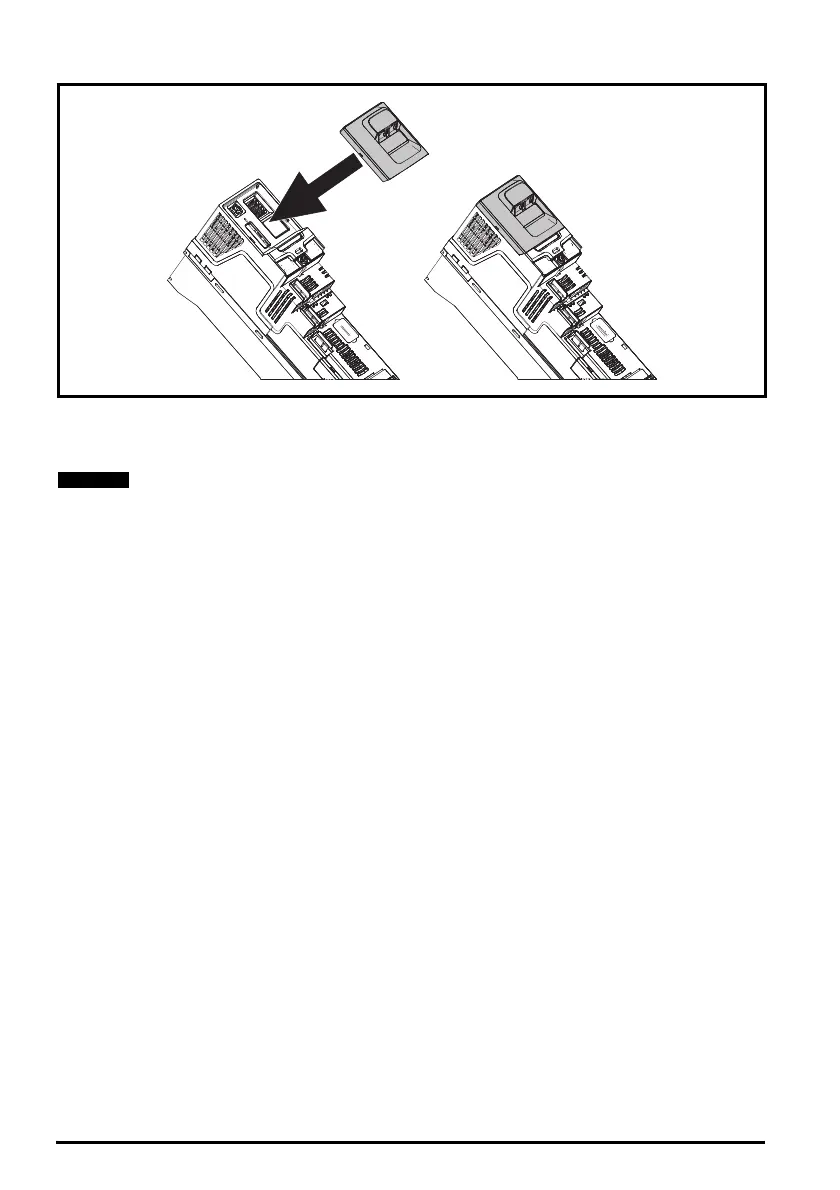

Figure 6-11 KI-485 Adaptor Installation
To install, align the KI-485 Adaptor and press gently in the direction shown until it clicks into position.
To remove, reverse the installation instructions.
When using the Control Techniques converters or any other suitable converter with the drive, it is
recommended that no terminating resistors be connected on the network. It may be necessary to
disconnect the terminating resistor within the converter depending on which type is used.
IEC cable sizes assume Copper conductor, PVC insulation, Installation method B2 and ambient
temperature of 40 °C (104 °F). UL cable sizes assume Copper conductor with insulation rated at 75 °C
(167 °F).
