Nikon D700 - Page 31

,.----8
1---------
2---..
4--- ....
5---
6-------
7-------'
12---0/'
,,----9
,,----10

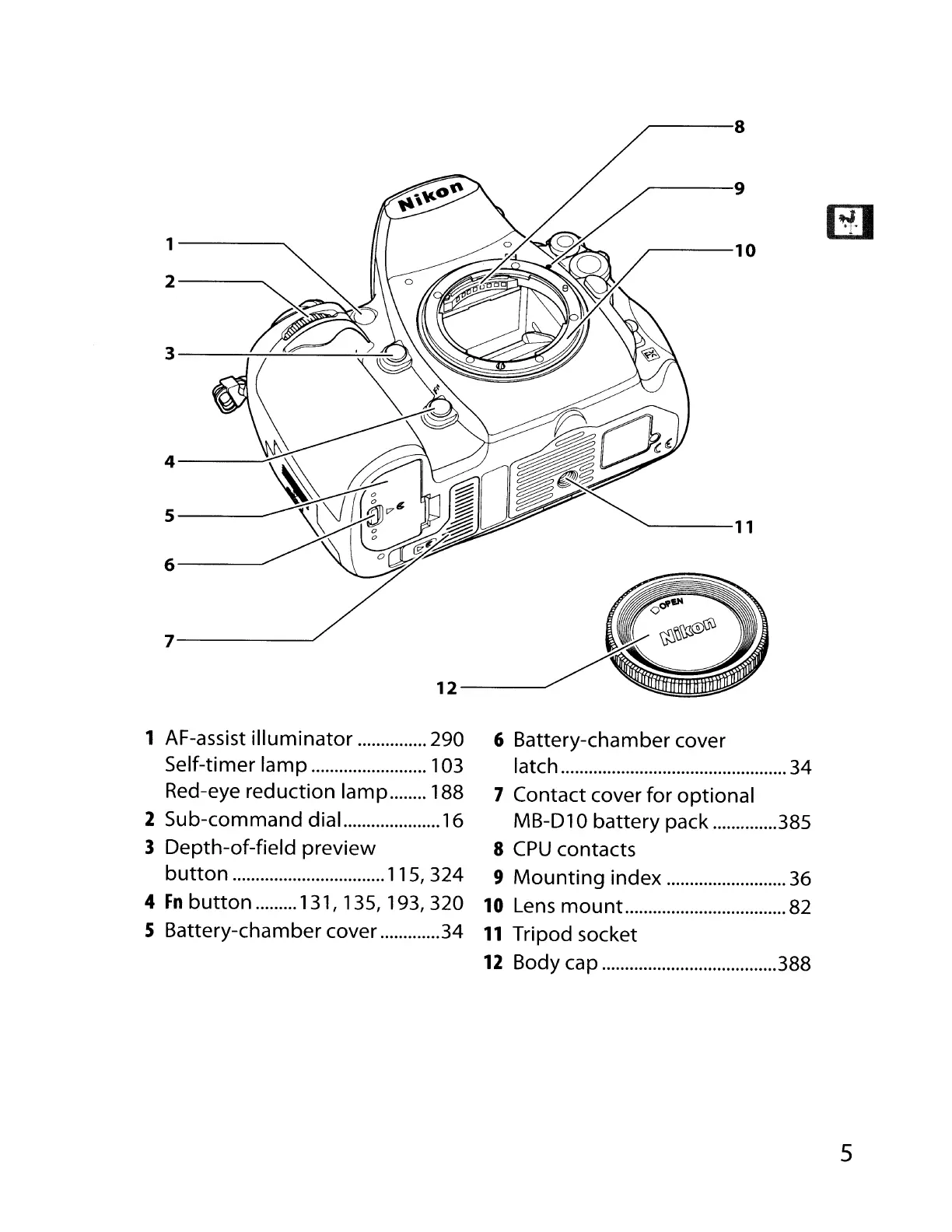

1 AF-assist illuminator 290
Self-timer lamp 103
Red-eye reduction lamp 188
2 Sub-command dial.
16
3 Depth-of-field preview
button 115, 324
4
Fn button 131, 135, 193, 320
5 Battery-chamber cover 34
6 Battery-chamber cover
latch 34
7 Contact cover for optional
MB-Dl0 battery pack .385
8
CPU contacts
9
Mounting index 36
10 Lens mount 82
11 Tripod socket
12 Body cap .388
5
