.MICROSCOPE. VI Basic Operations
6 Using the Microscope Control
- 138 -

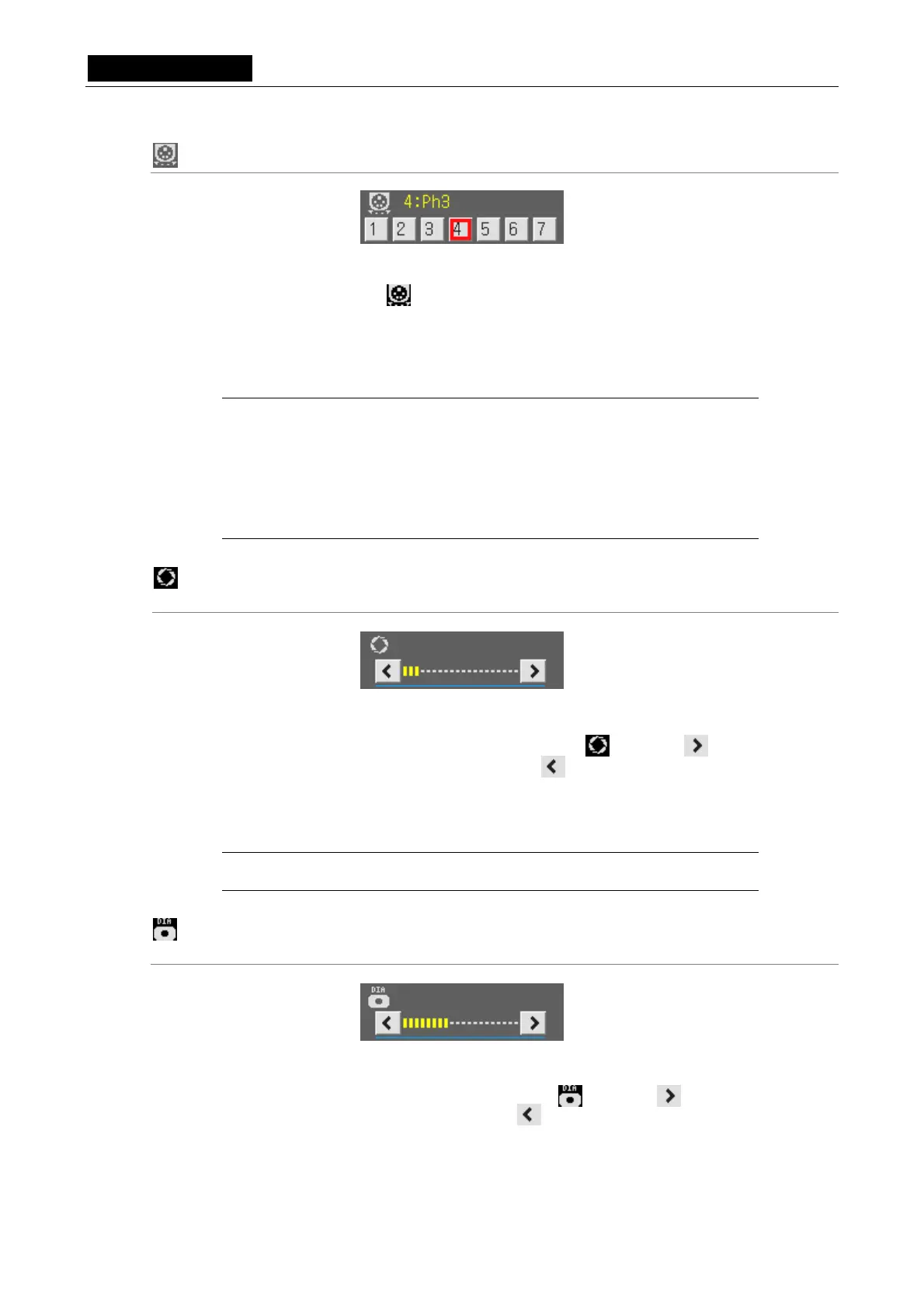

Condenser <Changes condenser module >
Compatible only with the Nikon 90i microscope.
1
）
In the condenser column , select a condenser number to which your desired condenser
is registered. The condenser will change to the one you select.
2
）
After switching condensers, confirm that the selected number icon is marked with a red
border and that the condenser number and name are displayed.
NOTE:
* Before using this function, you must set up the condenser information from
a PC with the setup software. For more information, refer to the instruction
manual for your microscope.
* Right-click on an icon representing a condenser number, and the names of
all registered condensers will be displayed. You also can select the desired
condenser from within this display to change condensers.
Diascopic illumination aperture diaphragm
<Adjusts the diascopic illumination aperture diaphragm>
Compatible only with the Nikon 90i microscope.
1
）
In the diascopic illumination aperture diaphragm column , select the icon to open
the diaphragm in increments of 0.1. Or select the
icon to close the diaphragm in
decrements of 0.1.
2） Briefly depress the mouse button to adjust the diaphragm in three-increment steps.
NOTE: The level indicator shows the current aperture of the diaphragm in
increments of 1.4 in the range 2.0 to 30.5.
Diascopic illumination field diaphragm
<Adjusts the diascopic illumination field diaphragm>
Compatible only with the Nikon 90i microscope.
1
）
In the diascopic illumination field diaphragm column , select the icon to open the
diaphragm in increments of 0.1. Or select the
icon to close the diaphragm in
decrements of 0.1.
2
）
Briefly depress the mouse button to adjust the diaphragm in three-increment steps.
