Chapter 4 Assembly
48
17

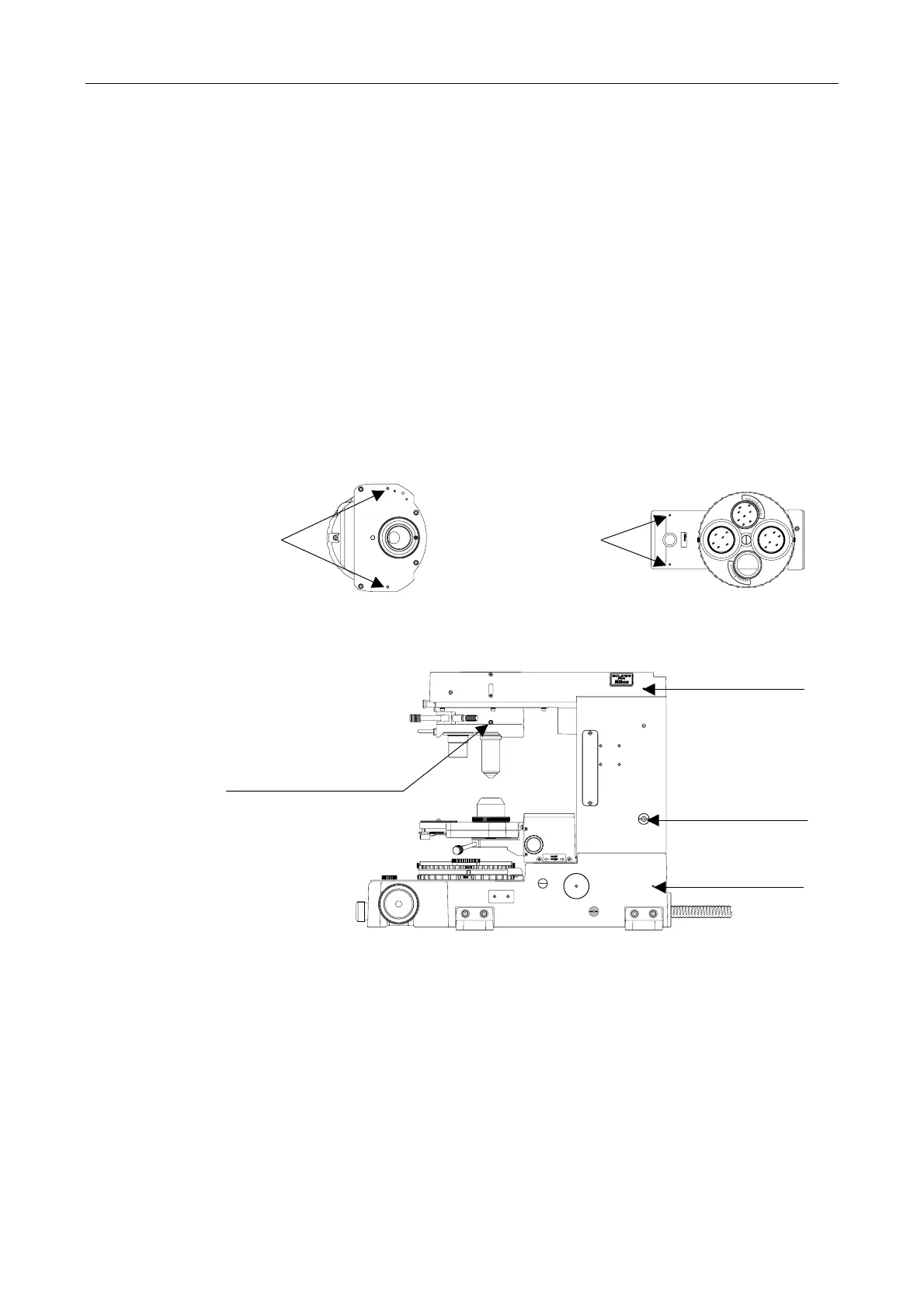

Attaching cables to reduce noise
There are screw holes on the microscope body and on the accessories to attach cables to
reduce noise.
Microscope body
Eyepiece tube mount part: one M3 screw hole on the right side
Mainstay: one M4 hexagonal socket head bolt on the right side
Lower part of the body: one M3 screw hole on the right side
Sliding nosepiece: two M3 hexagonal socket head bolts on the both sides
LWD condenser: two M4 screw holes on the bottom side
Polarizer turret: two M3 screw holes
JAPAN
FN-PT
Microscope body
18
Attaching option accessories
To attach option accessories such as the photomicrographic equipment or so on, refer to the
instruction manuals for them.
M4 screw holes
M3 screw holes
M3 hexagonal socket head bolt
(both sides)
M3 screw hole
M4 hexagonal
socket head bolt
LWD condenser (bottom side)
Polarizer turret
M3 screw hole
