Nikon eclipse fn1 - Part Names and Components; Main Microscope Parts

12
Part Name
1
If the microscope is not assembled yet, refer to Chapter 4, "Assembly" and assemble the microscope beforehand.
For details about assembling and handling the power supply and the light source, see the instruction manuals for
them.

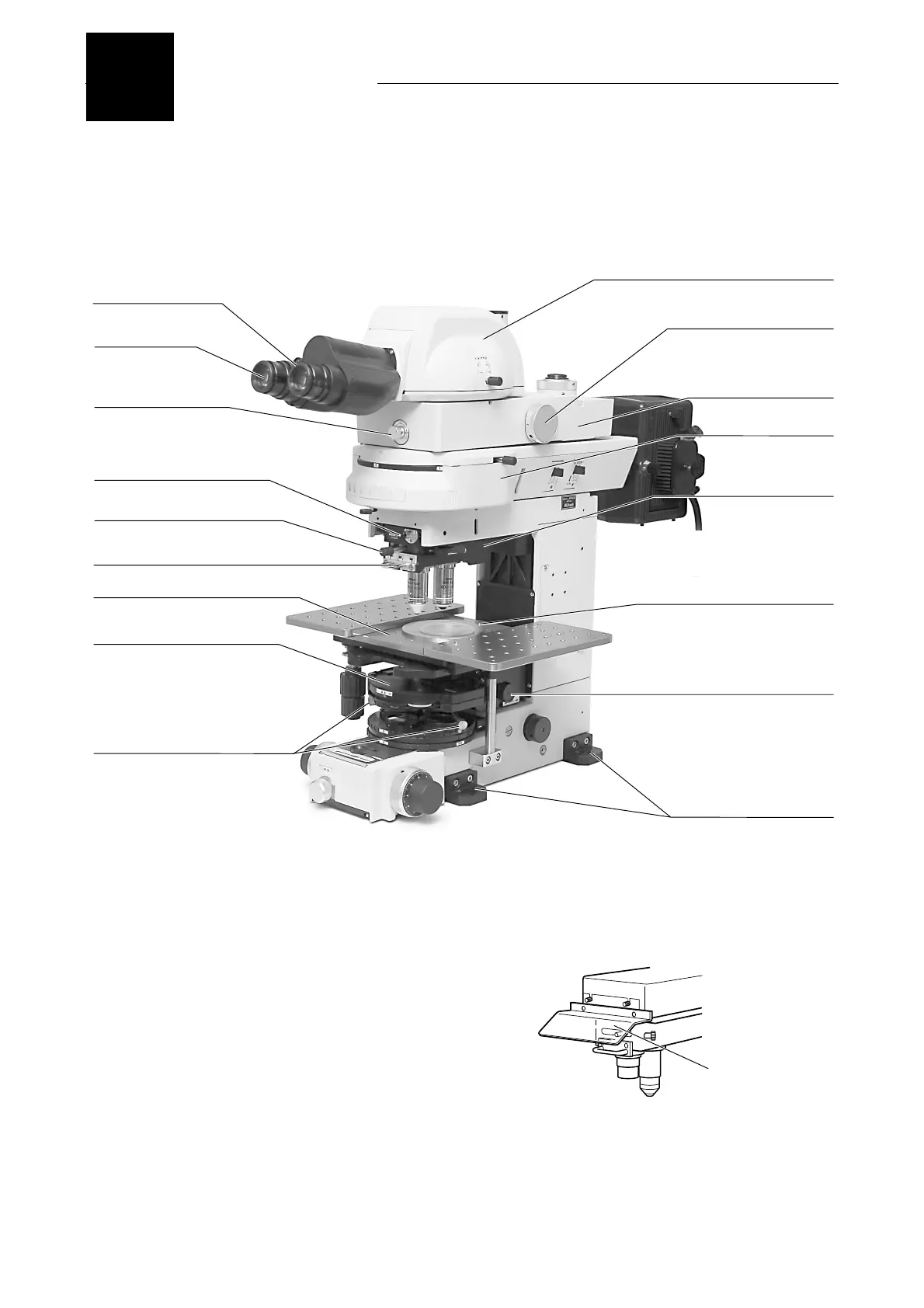

1. Main part of the microscope
This photo depicts the ECLIPSE FN1 microscope configured with the epi-fl attachment, the variable magnification
double port attachment, and the ergonomic eyepiece tube.
* The product name for the variable magnification double port attachment is "Mag. Variable Double Port."
* The ultraviolet light shield is removed from the
microscope in the photo above. The following figure
shows the ultraviolet light shield.
Eyepiece
Eyepiece tube
Diopter adjustment
ring
Slide click release button
Sliding nosepiece
Objective vertical movement
lever
Condenser
Base auxiliary leg
Sliding nosepiece lever
Epi-fl attachmen
t
Condenser focus knob
Condenser centering screw
Optical path selector lever
Variable magnification
double port attachment *
Magnification selector dial
Rectangular stage
Chambe
r
Ultraviolet light shield
