13

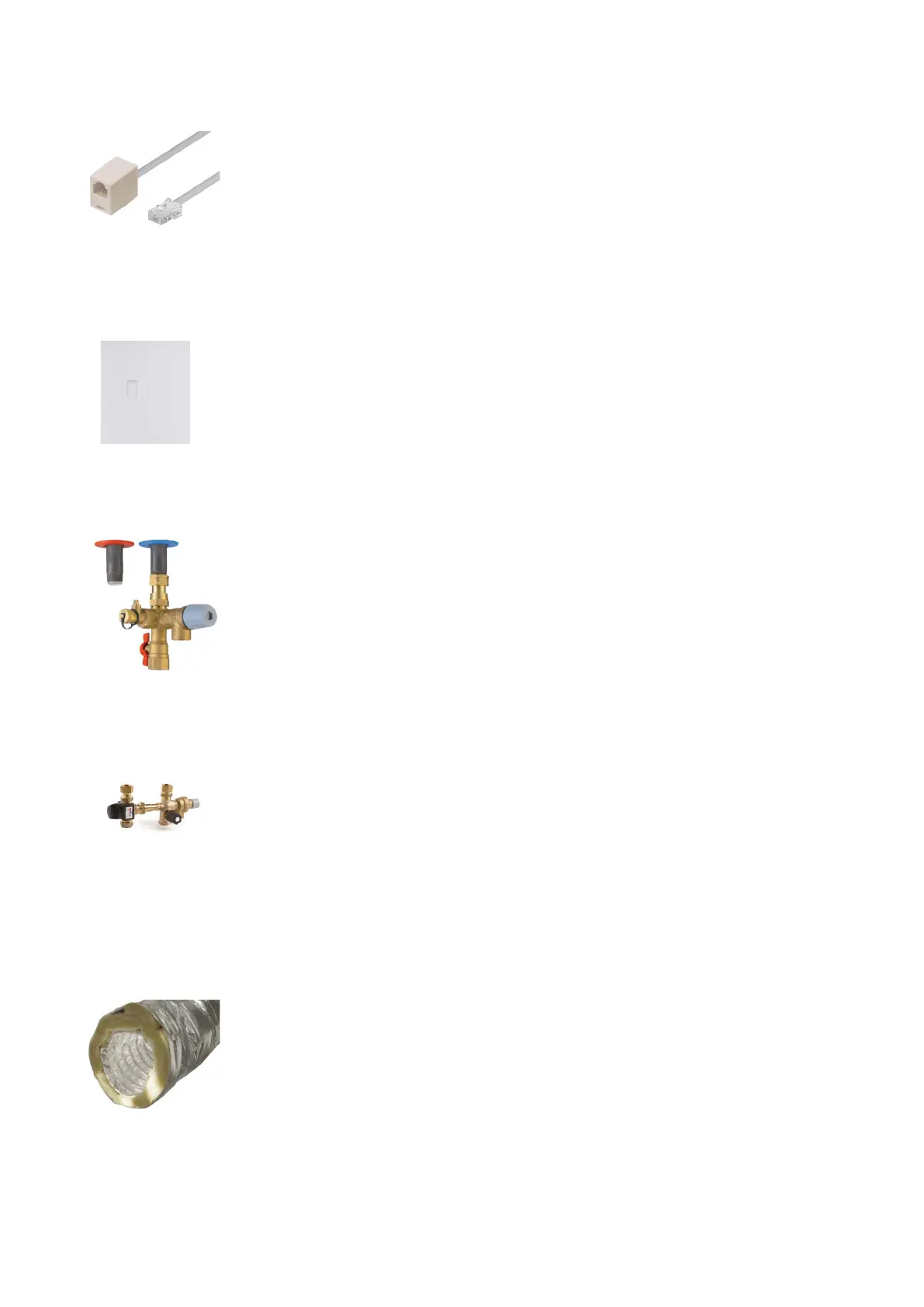

Extension cable HMI control panel
Cover plate HMI user panel
Safety group
Safety group with scalding protection
Flexible sound damper
The control panel for the ventilation unit is connected up with a short wire so it can be installed close to the
unit.
If you place the unit so the control panel is out of sight, for instance in a cupboard or in the loft, you can order
a 15 m extension cable with plug. This allows you to place the control panel where it is visible to the user.
It is important that the control panel is visible so the user can see alarms when, for example, filters need
replacing.
It is possible to move the HMI control panel away from the unit and place it in a more visible place.
A cover plate can be ordered to cover the hole where the control panel was located.
By law, a safety group must be fitted for the cold water connection to the hot water tank.
Nilan offers a safety valve in brass with the following functions:
• Safety valve
• Check valve
• Stop valve
• Drain tab
The control has a software scald protection that ensures that the water in the hot water tank does not gets
too hot.
If you have a large cooling and / or heating need, it may be necessary to deactivate the software scald pro-
tection. The water in the hot water tank can be up to 90 ° C, which is why you need to install a safety group
with scald protection.
If a solar panel is used to heat the domestic hot water via the supplementary coil in the hot water tank, a safe-
ty group with scald protection must be fitted.
To make it esay to service the unit in the future, we recommend that you fit a flexible connection between
the unit and the duct system.
Nilan flexible sound damper absorbs sounds effectively from both the duct system and from roof stacks.
