23

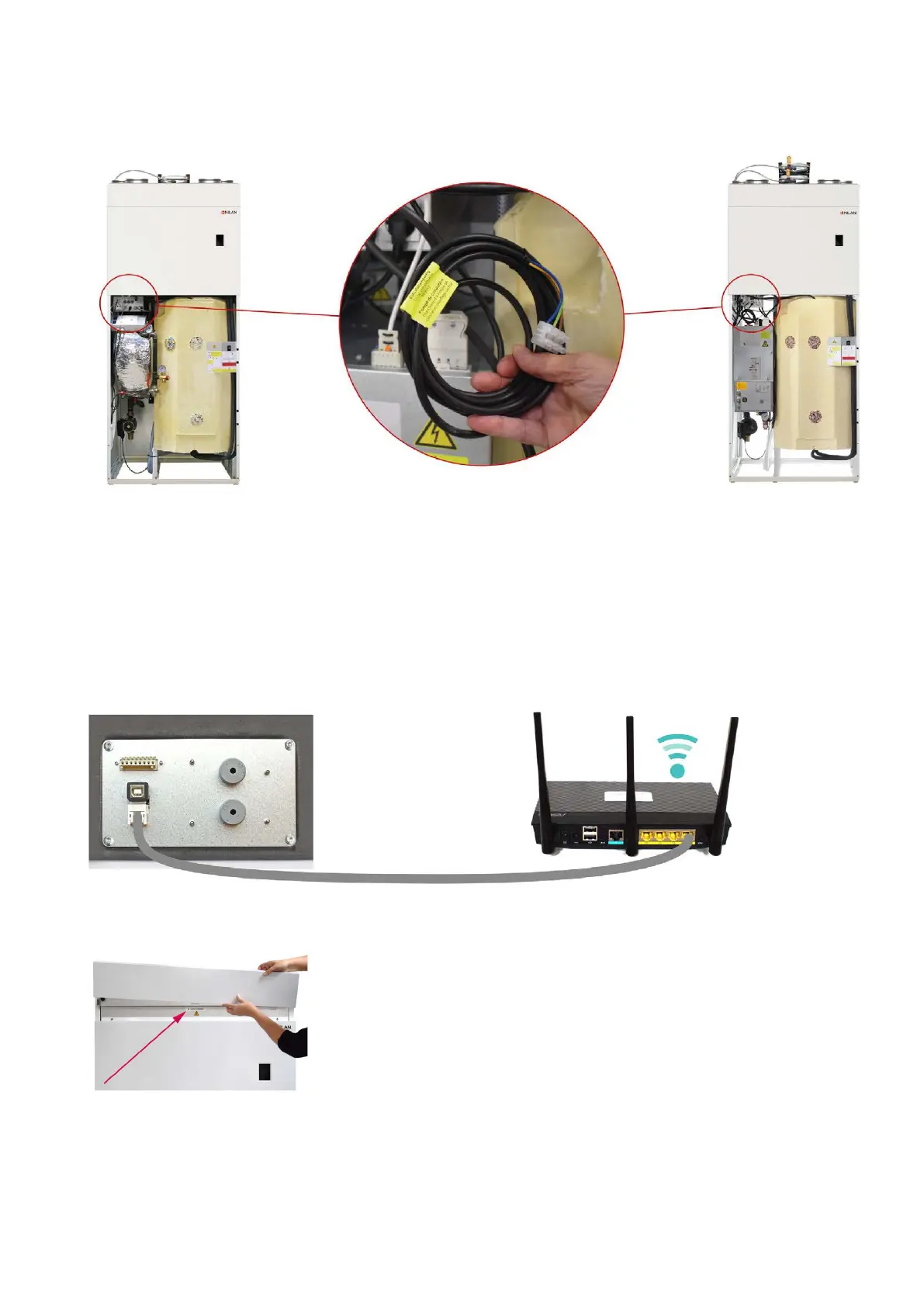

Circulation pump
In Compact P2 AIR and Compact P2 GEO, there is a Power supply cable for circulation pump for central circuit in the Electrical connec-
tion panel. The cable is marked with a sticker with the text "Circulation pump" and ends in 3 screw terminals.
Connecting a gateway
Connecting to the internet
Using an RJ45 LAN cable, you connect the gateway to a router with an internet connection (the cable is not supplied by Nilan). The con-
nection from the gateway is located at the top of the ventilation unit.
Location on the unit
Once a connection to the router has been established, you will have a secure cloud con-
nection. You can now communicate with the gateway via the Nilan User App. Additional
information can be found in the user manual.
On Compact P2 (AIR/GEO) units, the gateway is installed in the unit. The ID number of the
gateway is situated under the upper door at the front. You pull this outwards and lift it up.
The gateway arrives from the factory connected to power and to the Modbus connection
of the unit.
Compact P2 AIR
Power supply cable for circulation pump for
central circuit
Compact P2 GEO
