Plumbing installation
Condensate drain
Important information
Compact P2 is supplied with a reinforced 20 mm condensate drain tube with an integral water trap.
Once installed, check the function of the water trap in the following way (the unit must be connected up to the duct system):
Fill the condensate tray with water, close the unit door and start the ventilation unit at the highest fan speed level. Allow it to run for
several minutes. Open the door and check that the water has drained from the condensate tray.
ATTENTION
Run the condensate drain tube to the nearest drain, allowing an even fall of at least 1 cm per m.
The overflow from the safety valve for domestic cold water must likewise be led to a clearly visible drain.
ATTENTION
If the unit is set up outside the climate screen, it is important to protect the condensate drain from frost.
Frost protection of the unit is the installer's responsibility.

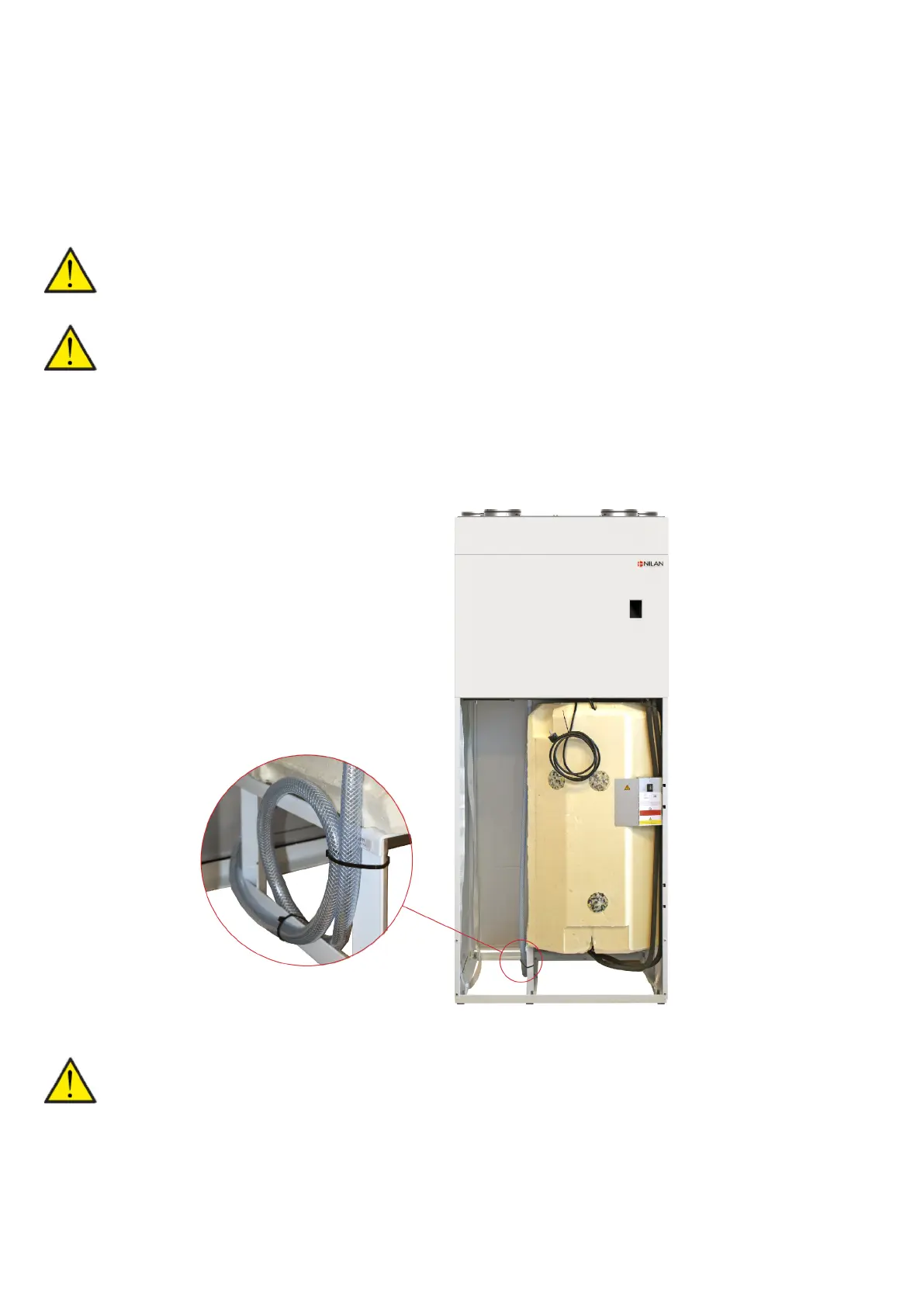

The loop on the tube from the condensate drain functions as a water trap. It has been fastened with tie strips that must
not be cut or removed under any circumstances.
