nilan Compact P2 Installation Instructions

9

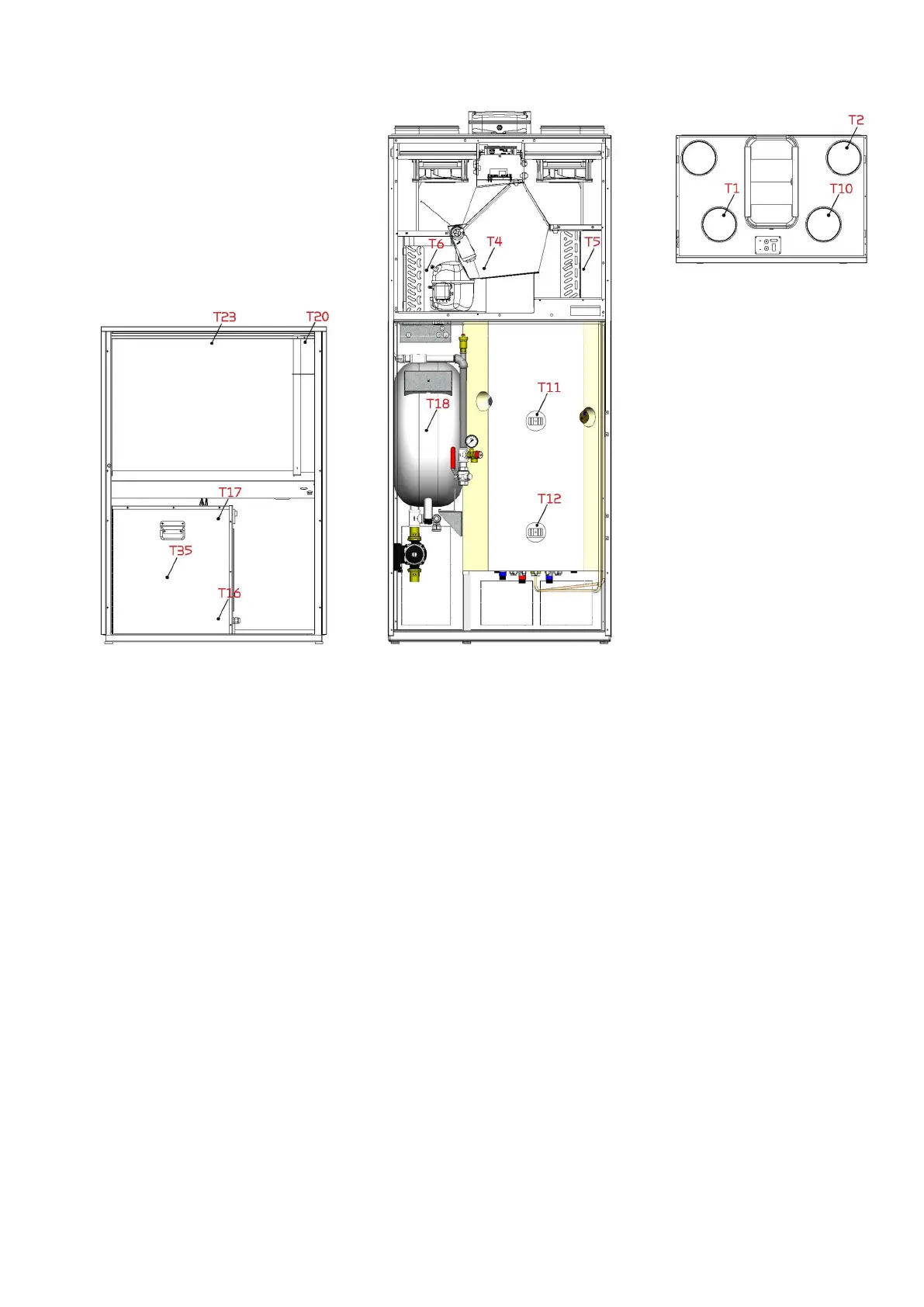

Temperature sensor overview
Temperature sensor in the AIR outdoor unit
T16: Before the condenser (to outdoor unit)
T17: After the condenser (from outdoor
unit)
T20: Outdoor temperature
T23: Evaporator temperature
T35: Pressure pipe temperature
Temperature sensor in the AIR indoor unit
T18: Buffer tank (supply flow)
Temperature sensor in Compact P2
T1: Outdoor air
T2: Supply air
T4: Extract air after the exchanger
T5: Condenser
T6: Evaporator
T10: Extract air
Temperature sensor in the hot water tank
T11: Top of the tank
T12: Bottom of the tank
Temperature sensor outside the unit
T7: Supply air after the after-heating
element (accessory)
T8: Outdoor air before pre-heating el-
ement (accessory)
T9: On the after-heating element (ac-
cessory)
