38

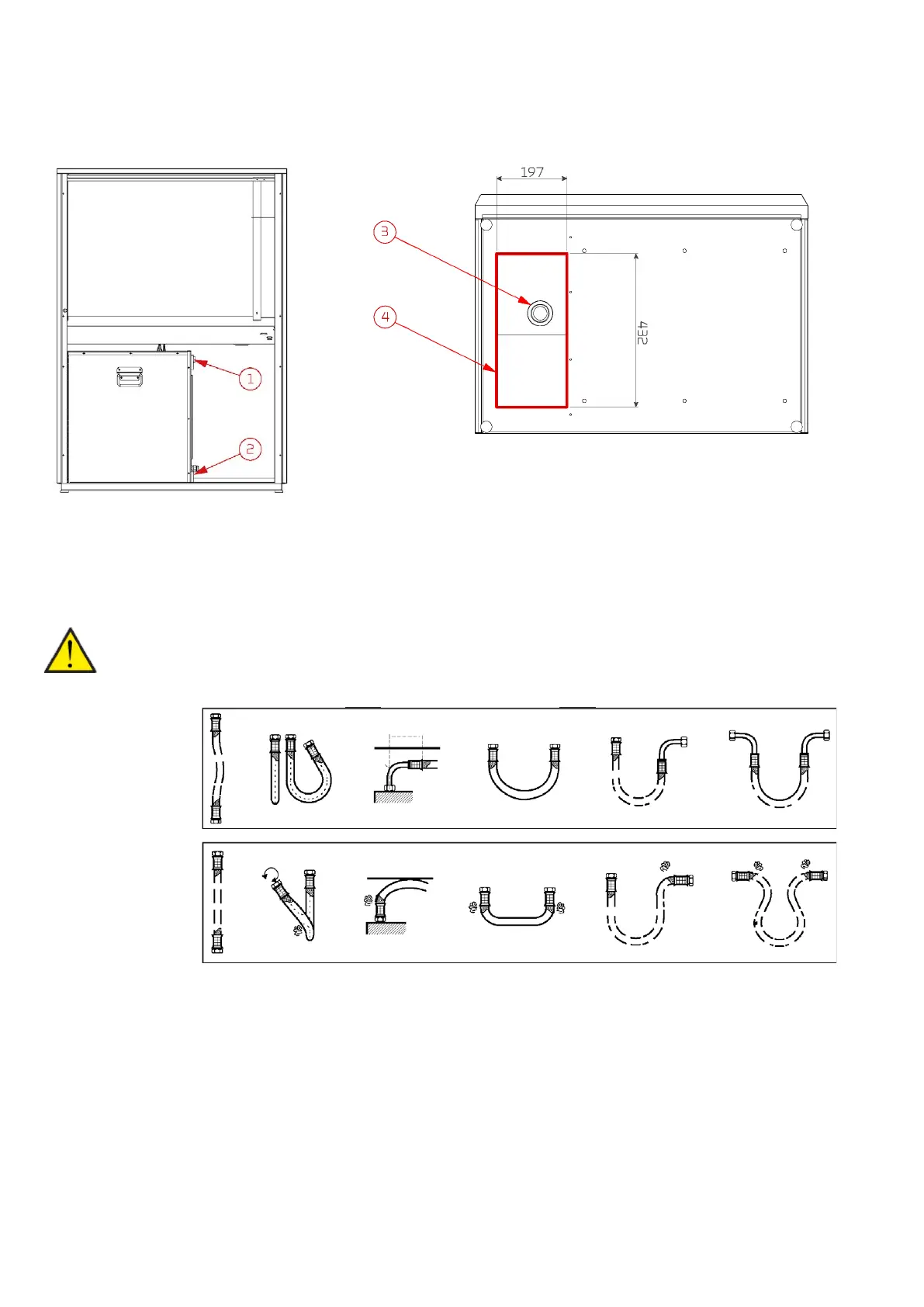

Connections overview outdoor unit
AIR outdoor unit rear side: AIR9 outdoor unit seen from below:
1. Supply flow to indoor unit (hot), fitted with a 1" flexible hose
2. Return flow from indoor unit (cold), fitted with a 1" flexible hose
3. Condensate drain
4. Hole for connections
ATTENTION
The illustration above on the left shows an example of an AIR outdoor unit. The outdoor unit is available in different ver-
sions. See the dimensional drawing for details.
CORRECT
WRONG
