21

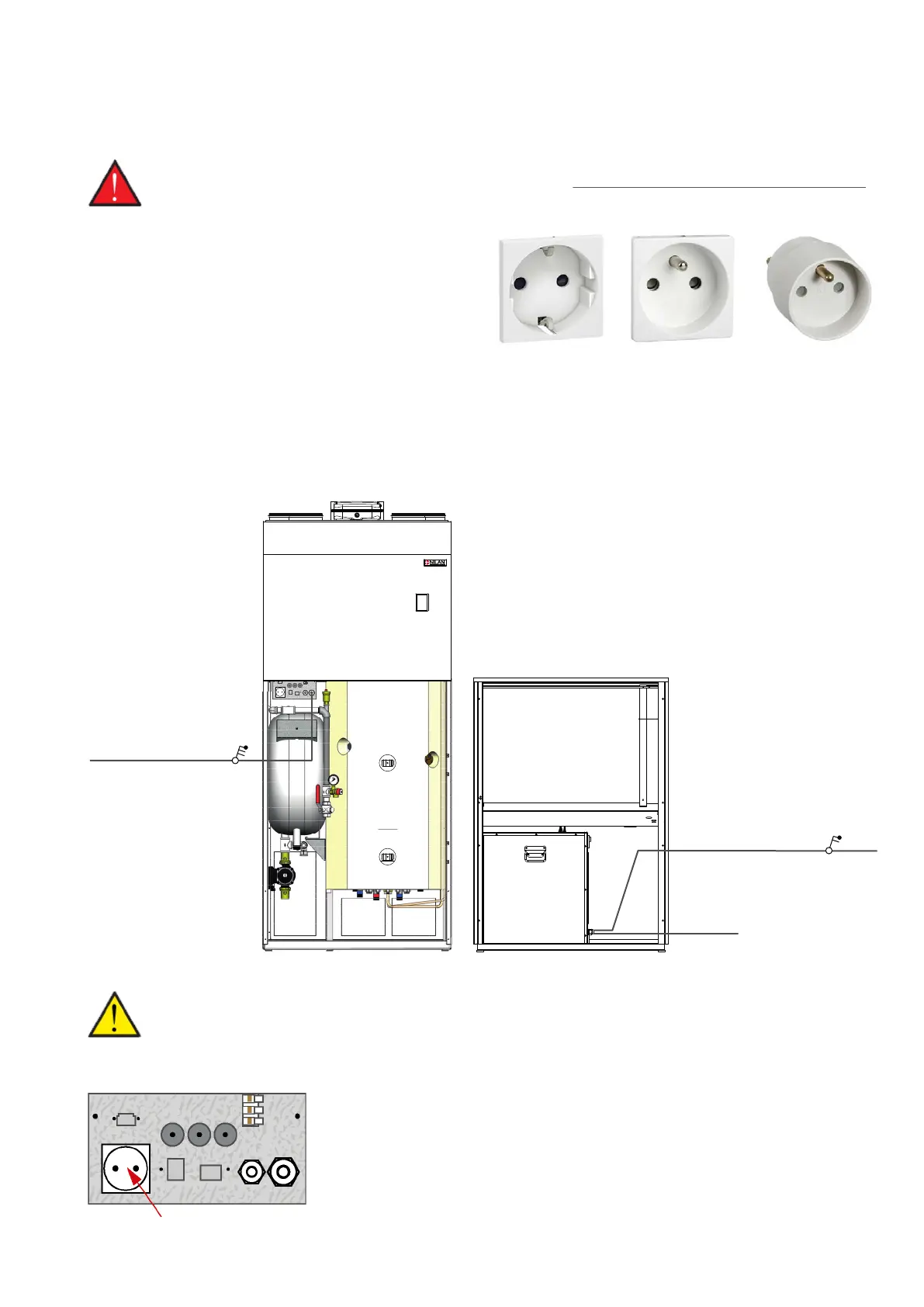

Electrical connection unit
Power supply
Compact P2 AIR
CAUTION
The power supply is plugged into a 230V socket with a safety switch. It is important that the unit has earth connection.
The ventilation unit is supplied with an EU Schuko plug for 230V
power supply.
This means that if you have not installed a shoko socket with
side earth or pin earth, an Adapter schuko plug with pin earth
must be used.
This Schuko adapter can be plugged into the ventilation unit's
Shuko plug and then into a socket with earthing.
Schuko socket
with side earth
Schuko socket
with pin earth
Example of Adapter
Schuko plug with pin
earth
ATTENTION
Due to the risk of faults caused by inductive influence, the communication cable must be routed in a separate pipe with
a minimum of 100mm distance to other live cables.
Heat pump, AIR indoor unit Heat pump, AIR outdoor unit
230V 50Hz 16A
(Schuko plug)
Remember Safety switch
20m communications cable with
plug connector for indoor unit
One electrical connection
for the whole unit:
3 x 400V, N, Ground, 16 A
Remember Safety switch
Power connection for Compact P2, ventilation and hot water
This power connection via Schuko socket allows to measure the power consumption of the
ventilation separately, as well as the possibility that the hot water part does not have the
same connection as the heat pump.
