Unit - the outdoor unit
Front: Closed and open
Rear side: Closed and open

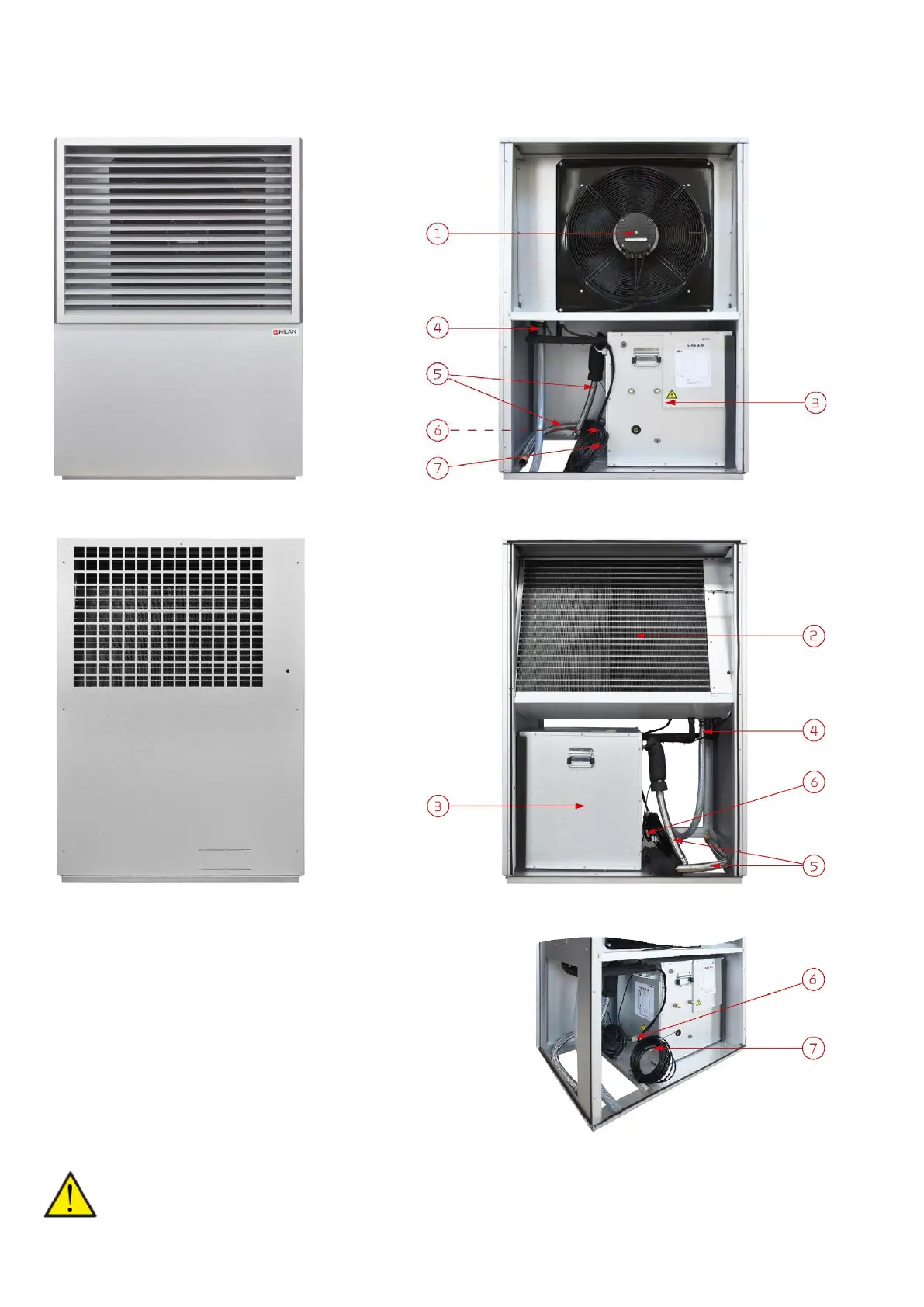

AIR outdoor unit:
1. Fan
2. Evaporator
3. Heat pump
4. Condensate drain with integral heating cable
5. Connections to/from the indoor unit (liquid)
6. Electrical connection cable for AIR heat pump outdoor unit (screw ter-
minal)
7. Communication cable with connector for connection to the indoor unit
(RJ45)
Side: Open
ATTENTION
The illustrations above show an example of an AIR outdoor unit. Different versions of the outdoor unit are available.
