15
Set-up
Mounting
Transport into the building
The ventilation unit is delivered fully assembled and wrapped on a pallet.
You can lift the unit from the pallet and transport it into the building by using a Nilan lifting dolly. You thereby avoid heavy lifting.
Positioning the unit
Set up the unit so it is level on a firm surface free of vibrations. You need to have easy access to the unit for servicing and filter replace-
ment.

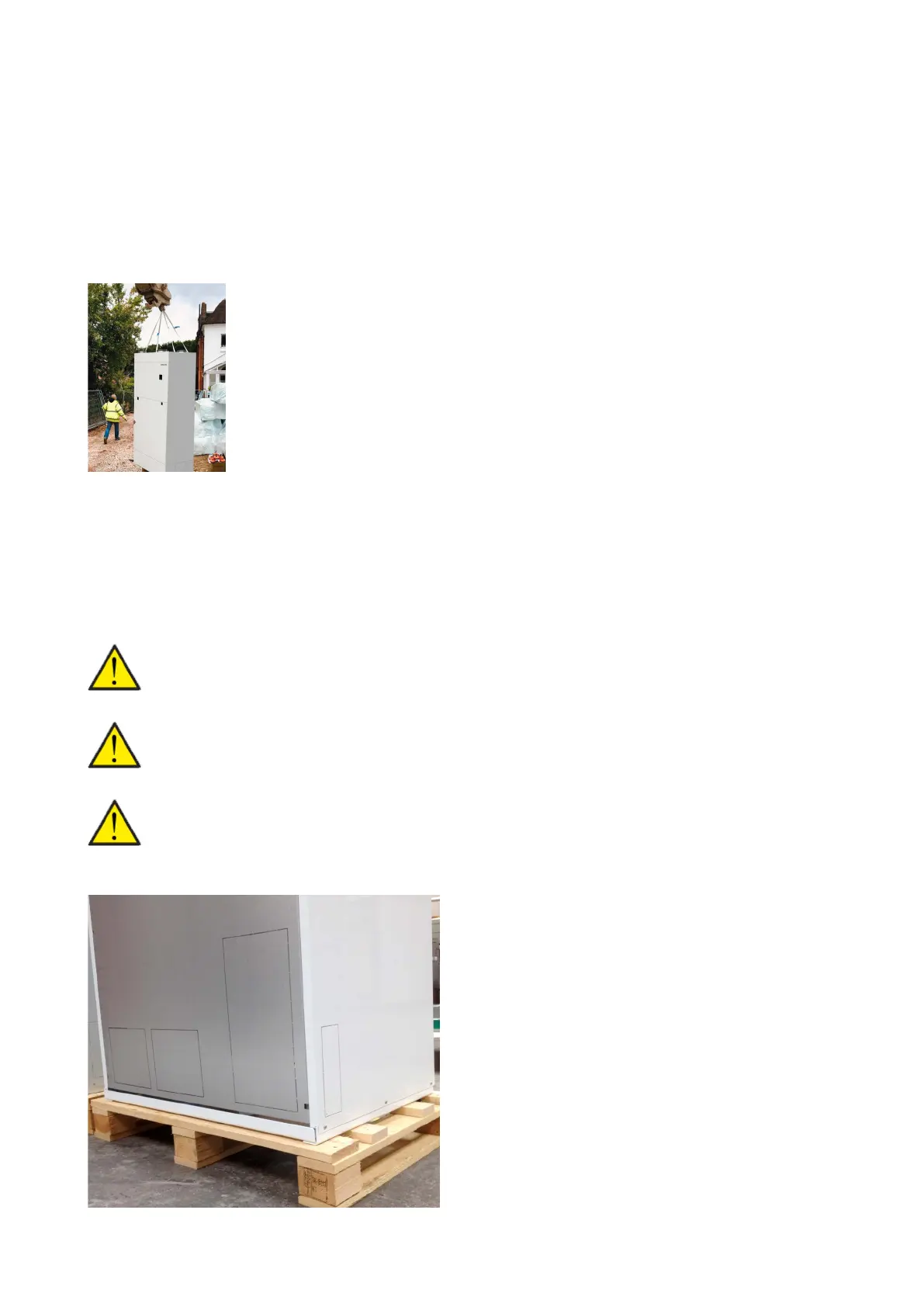

The unit is delivered from the factory fitted with 4 lifting straps, one in each corner.
This gives you the option of lifting the unit inside using a crane, which can be a considerable advan-
tage, if the ground is not suitable for a lifting dolly.
When lifting the unit using the attached straps, these must be at an angle of 45° from vertical.
ATTENTION
When positioning the unit, you should take into account future services and maintenance. We therefore recommend a
minimum of 60 cm of free space in front of the unit.
ATTENTION
The unit must be level to ensure proper drainage from the condensate tray.
ATTENTION
If flashings are fitted above the unit, these must be easily removable.
Near the bottom on the sides and at the back of the unit, the metal
has been punched out so you do not have to cut any holes yourself.
If you detach the metal angle from the base frame at the rear side of
the unit, you will be able to push the unit closer to the wall and
thereby hide connections for water.
