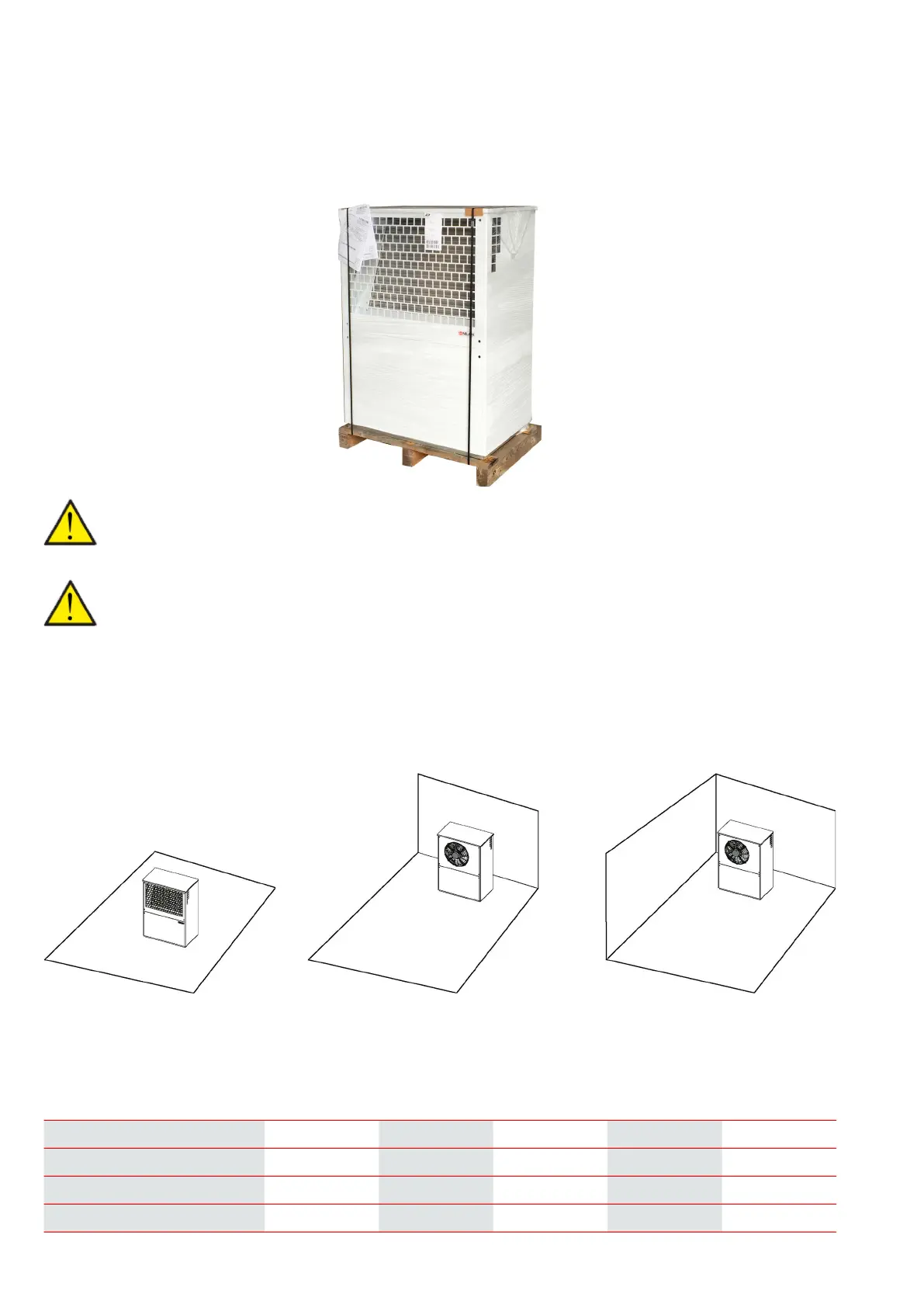

Mounting outdoor unit
Transport into the building outdoor unit
The AIR outdoor unit is delivered wrapped in foil and fixed on a transport pallet with strapping bands.
If the surface is suitable, we recommend that you use a lifting dolly to move the unit.
Sound data AIR9
The sound propagation from the AIR outdoor unit depends on the location of the unit in relation to the building, as well as its supporting
surface and its surroundings.
Sound power LWA dB(A) 7/6 ºC - 30/35 ºC = 46 db(A) in accordance with EN14511, EN12102 and EN3743/1
Sound pressure LpA dB(A) calculated in accordance with EN13487:2003:
ATTENTION
If you use a crane to lift in AIR, please be aware that the weight is not evenly distributed at the front and at the back.
ATTENTION
The outdoor unit must not be lifted by the doors, which is why these should be removed during transport.
Q = 2 (freestanding) Q = 4 (up against a wall) Q = 8 (in a corner)
Distance in metres 1 2 6 10 21
Location factor 2 38 32 22 18 12
Location factor 4 41 35 26 21 15
Location factor 8 44 38 28 24 18
