29

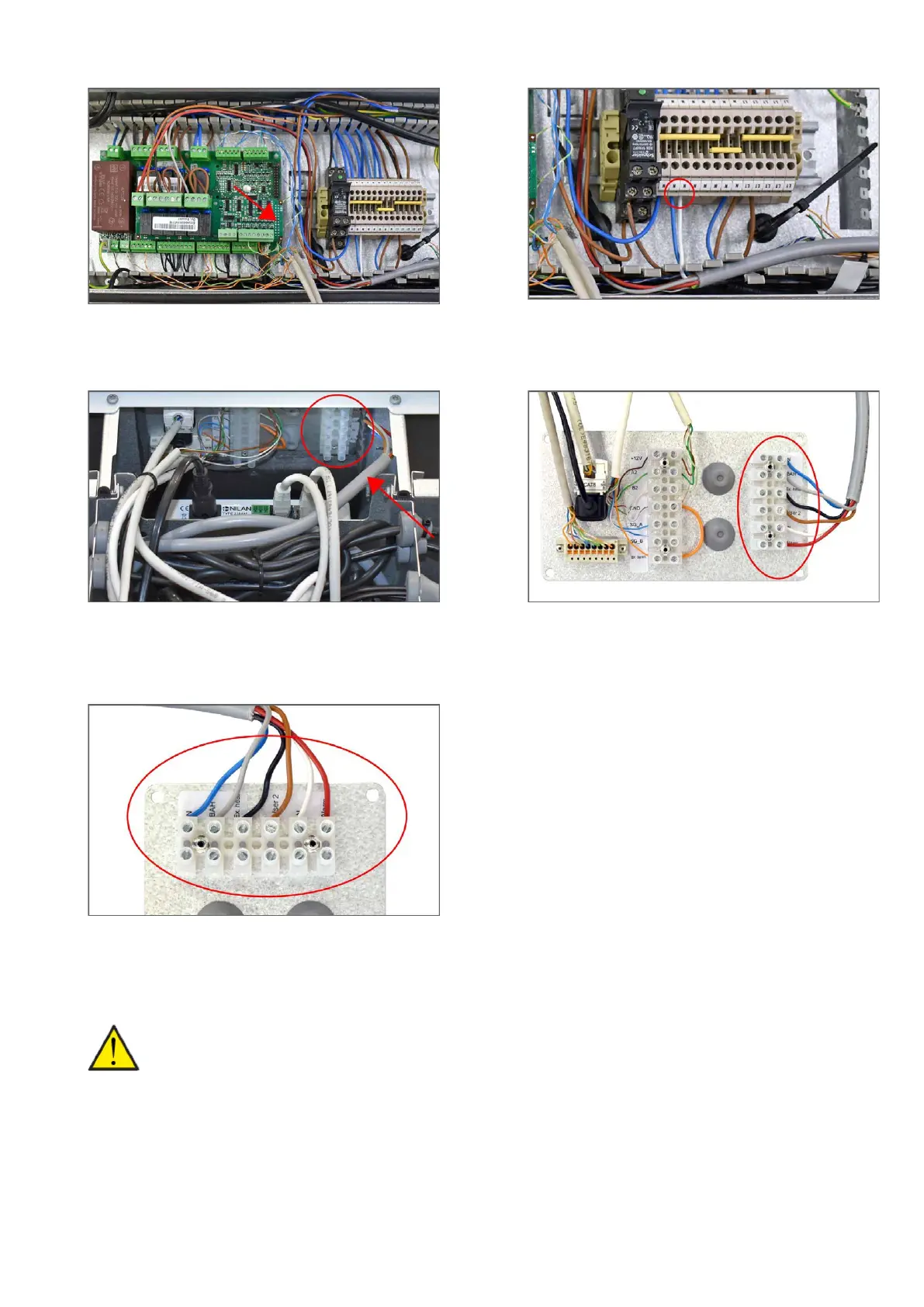

7. Mount the expansion PCB on the CTS602 circuit board.
Mount the other wires on the expansion PCB in accord-
ance with the wiring diagram.
8. Connect up the white and the blue wires to the fuse as
shown on the wiring diagram.
9. Run the cable in front of the gateway together with the
other wires from the circuit board and mount them in the
terminal block situated at the top of the Compact.
10a. Connect up the cable as depicted here. See also the
wiring diagram provided. You can loosen the plate and
access it from the top of the Compact. This makes instal-
lation easier.
10b. Connect up the cable as depicted here. See also the
wiring diagram provided. You can loosen the plate and
access it from the top of the Compact. This makes instal-
lation easier.
ATTENTION
The expansion PCB and the connections must be installed by a certified electrician.
The expansion PCB is an accessory to the CTS602 circuit board. Nilan does not supply external components.
