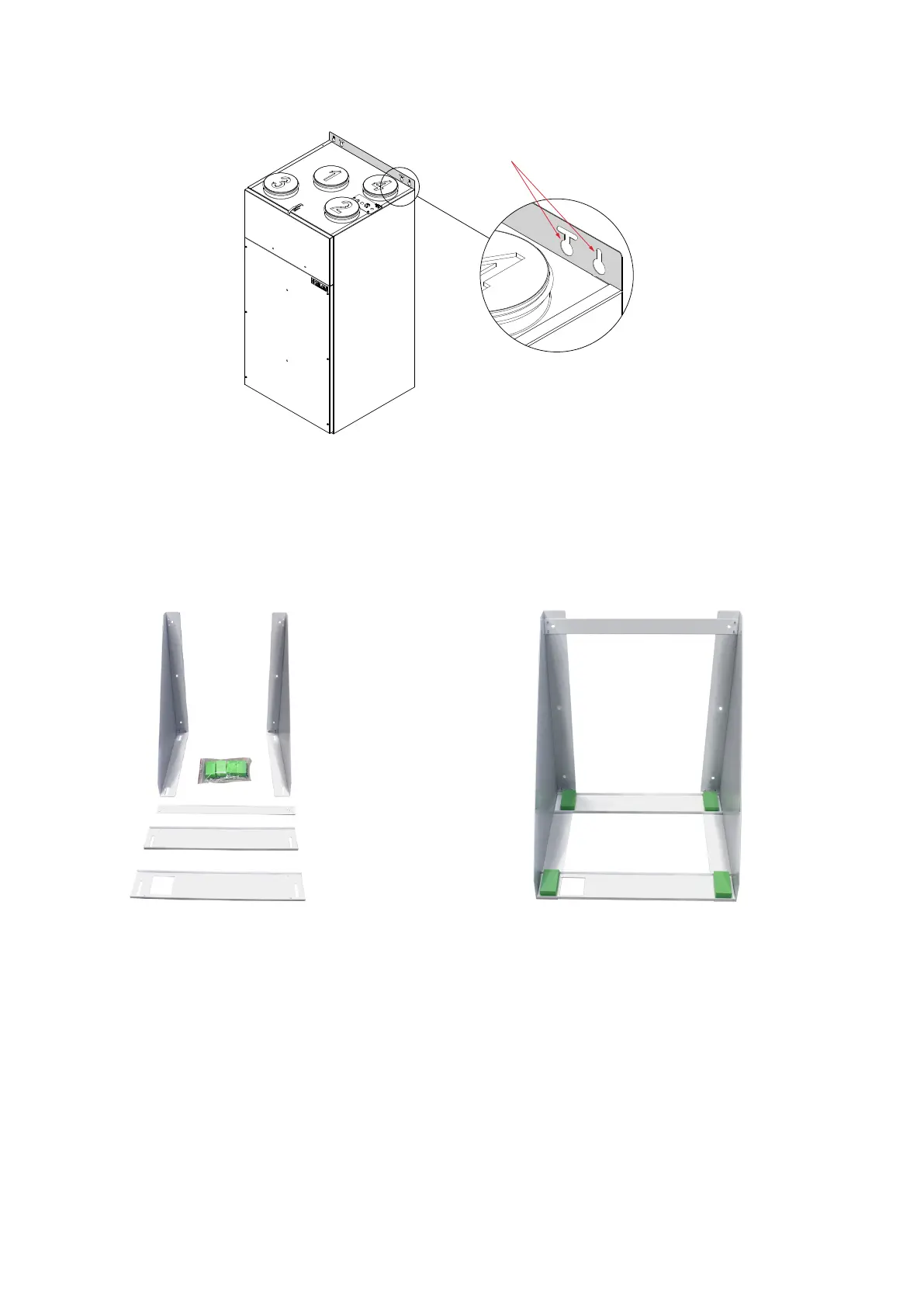

Mounting the ventilation unit
The unit is equipped with mounting brackets with holes for wall mounting at the top back of the unit.
Wall brackets for mounting unit
You can purchase wall brackets to use for mounting Top ventilation units.
Included are 4 sylomers (vibration absorbers) that will ensure effective absorption of potential vibrations from the ventilation unit
to the underlying surface/wall.
Contents: 2 side pieces and 3 brackets.
Bag with 4 vibration absorbers and 12 rivets for Ø5 mm holes.
Rivet the wall mount with a rivet gun as described in the
instructions that are supplied with the wall mount.
The wall mount bracket has 6 holes for installation on the wall.
Finally, place the vibration absorbers one in each corner and
place the ventilation unit on the wall mount.
