User panel
HMI User panel
The user panel comes with 1.5 meter cable.
Wall bracket
Mount the HMI panel on the wall using the integrated wall bracket..
The panel should be placed in a visible spot so it is possible to change settings and to monitor warnings or alarms regarding operation
of the unit.
ATTENTION
If you want a longer cable, use a standard LAN cable, max 50 meters.
Nilan offers a 15 meter cable with plugs on both ends.

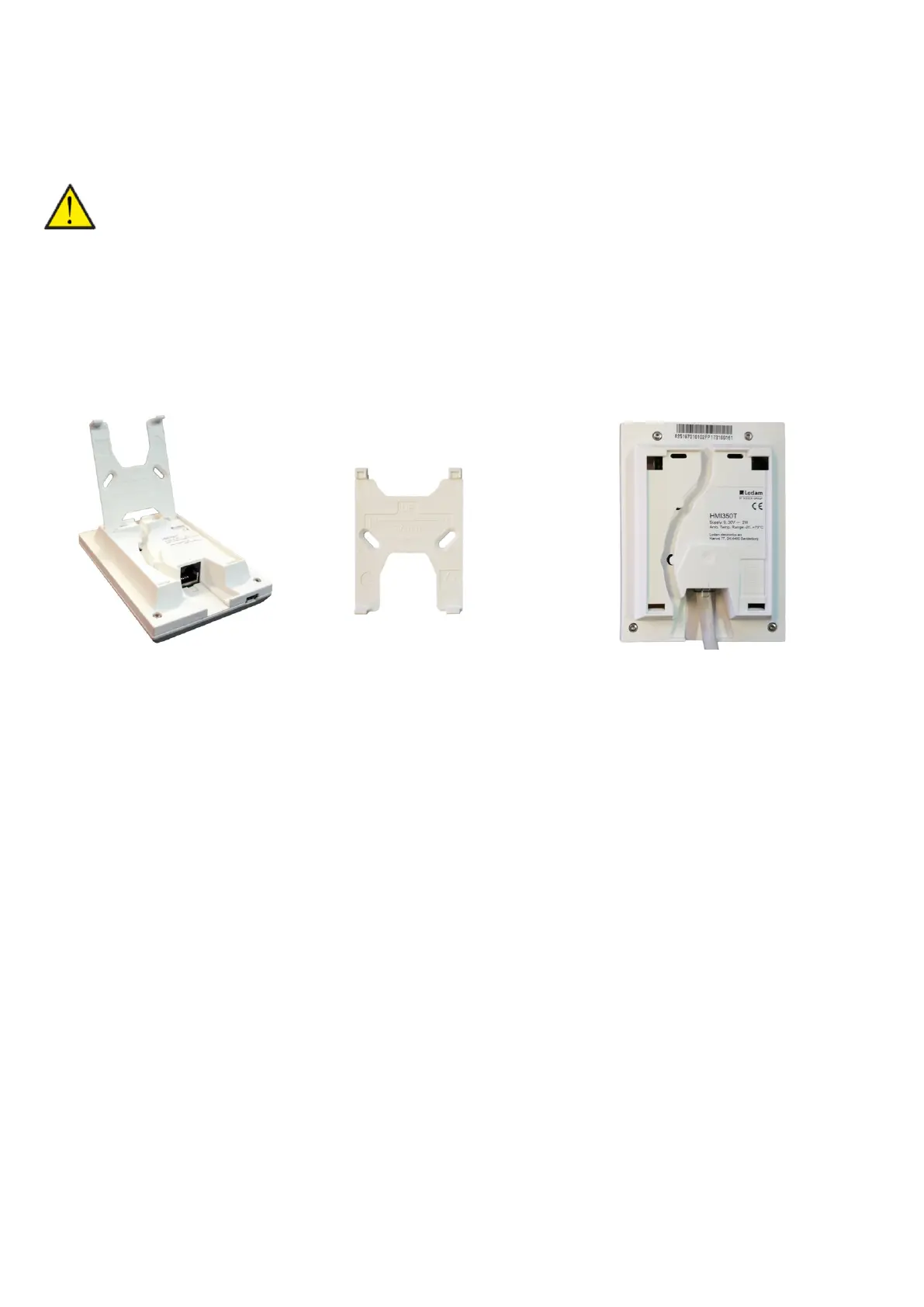

The wall bracket is located at the back of
the panel. You can detach it by loosening
the bracket at the bottom of the panel.
You can remove it.
Mount the wall bracket on the wall using
2 screws.
Click the RJ12 plug into place at the
bottom of the HMI panel. The wire can run
down along the wall, into the wall or
through the groove at the back of the
panel.
