29
Water after heating element
An after-heating element is necessary, if you want to control the supply air temperature.
The water after-heating element can be purchased for installation in the supply air duct. The required sensors and connectors for the
unit are included.

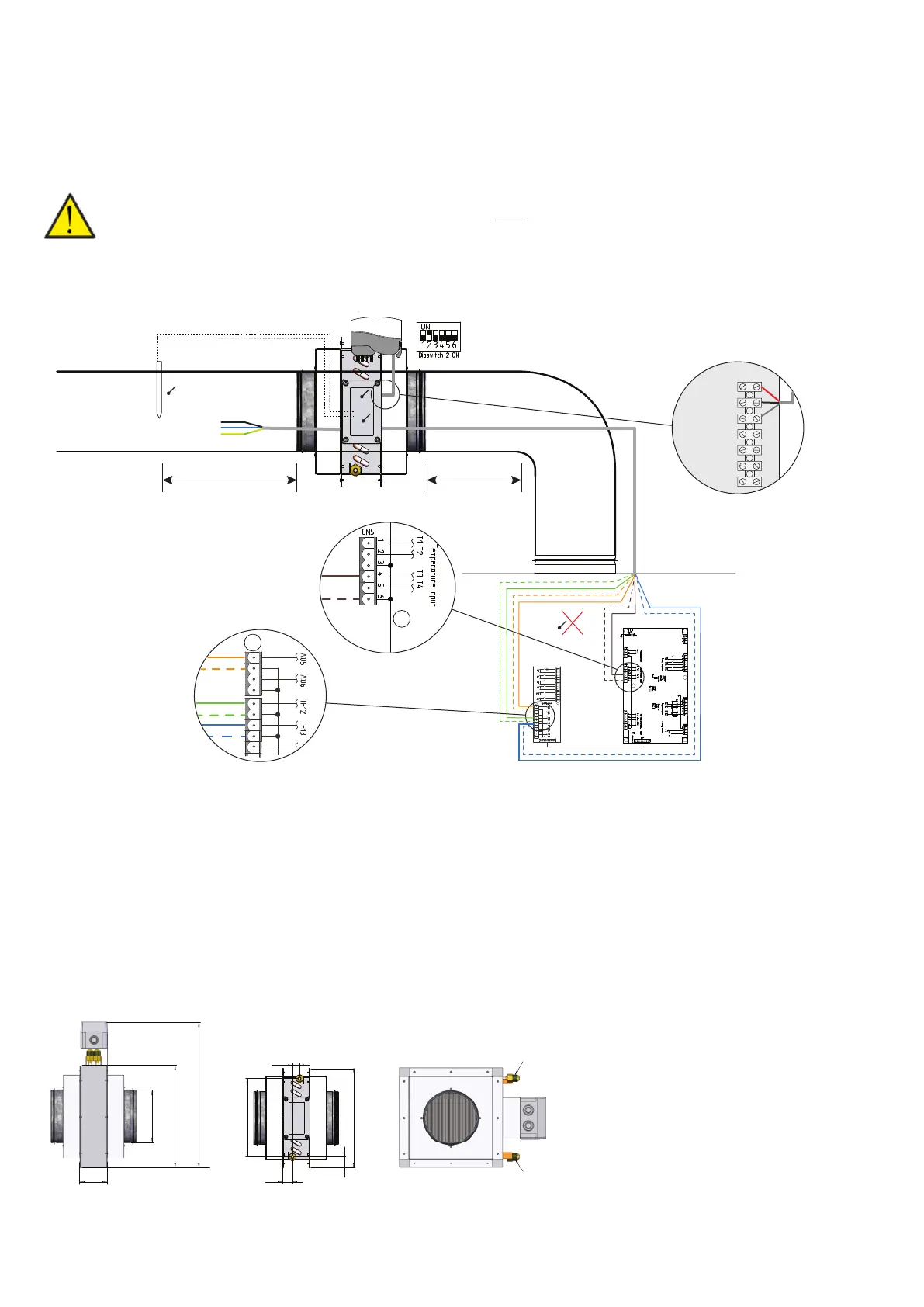

Run the wires along the duct and through a grommet on the unit down to the circuit board. Connect the wires in accordance with the
wiring diagram.
Dimensional drawing Ø125/Ø160/Ø200:
ATTENTION
T7 temperature sensor is mounted at the air heater. T2 sensor must
detached in the PCB and T7 connect the sensor
where T2 sensor was connected.
A
Connection to the CTS602 PCB board:
0-10V (Orange) - GND (Orange/white)
B3: Frost protect. (Green) - GND (Green/white)
T9: Temp. sensor (Blue) - GND (Blue/white)
B
Connection to the CTS602 Light board:
T7: Temp. sensor (Brown) - GND (Brown/white)
C
Connection of the reg. valve:
0-10V (Grey)
GND (Black)
24VAC (Red)
T7
1x230V ~ 50 Hz max. 16A
24VAC
GND
0-10V
T9
T9
T7
T7
Min. 50 cm
T7
Min. 2 x Ø
CTS602 Light
Optionsprint
T2
T9
B3
C
B
A
GND
T7
B3
GND
0-10V
GND
GND
T9
83
310
440
Ø
238
22
32
31
300
3/4" RG
3/4" RG
