23
External connections

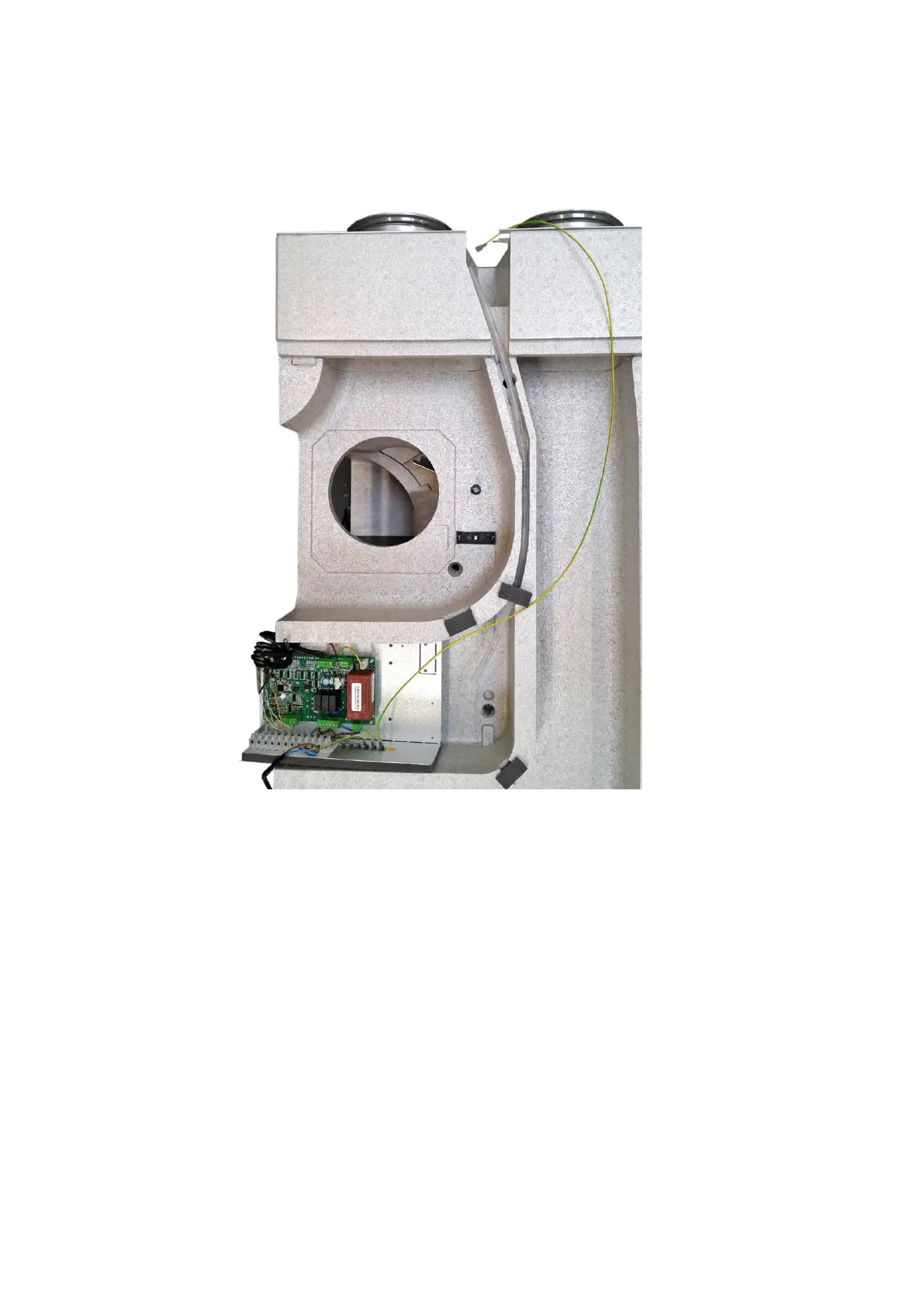

When connecting external components, run the wires through the built-in guide tube and directly to the control board. Remove the
cover plate so it is easier to see where the guide tube starts.
Run the wire to point 4 (See connections overview). Connection through frommet to external connections.
