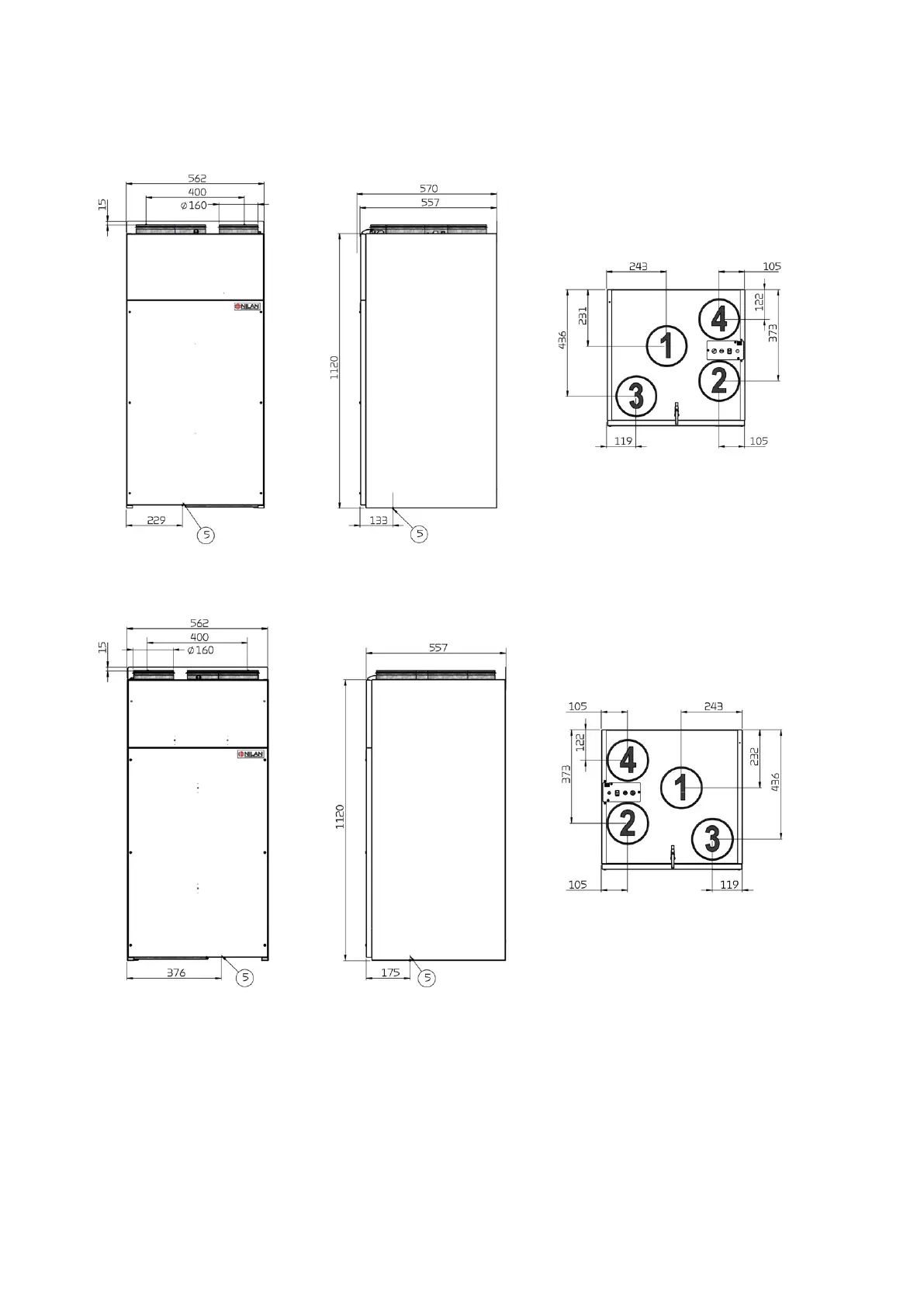

Dimensional drawing
All listed measurements are in mm.
Right model:
Left model:
Connections:
11. Outdoor air
12. Supply air
13. Extract air
14. Discharge air
15. Condensate drain
