Show data
The actual operation data can be read in the ”Show data” menu.
See review of thermometer sensors at page 5.
SHOW
DATA
FRESHAIR
T1 40°C
STATUS
HEATING
PANEL
T15 20°C
INLET
T7 50°C
EXTERNAL
T
10 9
°C
Room temperature
recorded by T15
(sensor in CTS 600
control panel).
The software version
used by the system.
The software
version used by
the controls.
INLET
FLOW 3
SOFTWARE
1 2.21
EXHAUST
FLOW 3
EVAP
T6 40°C
SOFTWARE
2 1.02
ENTER
COND
T5 25°C
TYPE
VPM/28EC
T10 is an external sensor that can be
installed in an exhaust fitting in the
sitting area. T10 can be chosen as a
controlling room sensor in the service
menu. See the installation instruction
For systems without
heating element, T2 is
shown. For systems
with heating element,
T7 is shown.
HUMIDITY
%
100
WATER
T9 25
°C

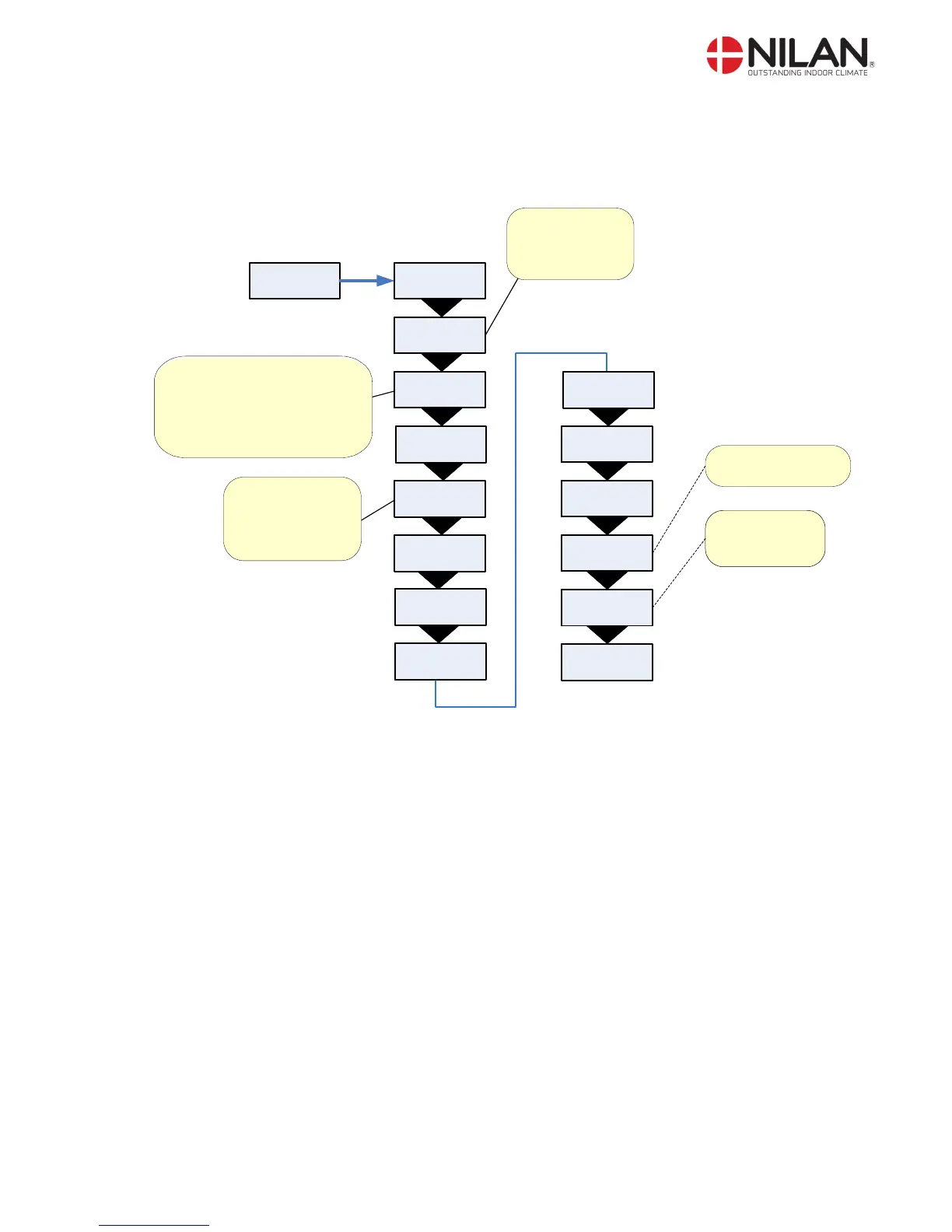

Figure 7: The ”Show data” menu
