Use of t he CTS 600 panel :
- pr ess ESC t o go one st ep back i n t he menu
- pr ess qpt o move up or down i n a menu or t o
adj ust an act i vat ed menu
- pr ess ENTER t o act i vat e a menu
- pr ess ENTER t o conf i r m a menu
- pr ess OFF t o t ur n of f t he uni t
- pr ess ON t o t ur n t he uni t on

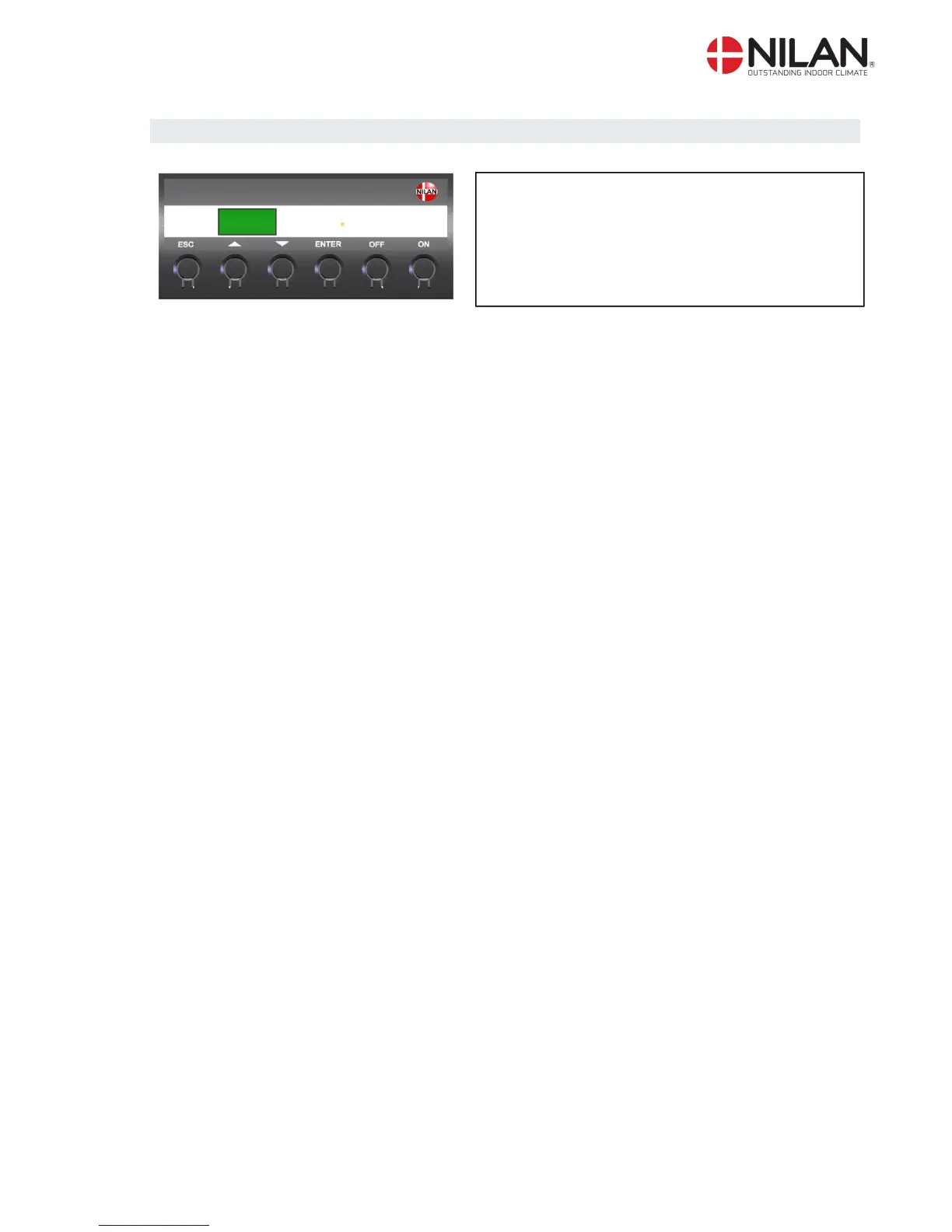

Figure 2: CTS 602 panel
The following is indicated by the light-emitting diode at the front of the CTS 602 panel:
Constant yellow light: the compressor is in operation
Flashing yellow: the unit is in alarm condition
The panel can show 2 lines of text with each 8 characters.
The upper line shows a guiding text.
The bottom line shows the matching values to the guiding text.
The text in the display in “on” as long as there is power to the unit and will not turn off even though
the unit is set to “off” or has not been operated for a longer period of time.
How to use the menu:
It is possible to adjust a value or a function by finding the matching menu via p or q.
To activate the desired menu press ENTER.
To adjust the settings of the value press ENTER until the value flashes.
The adjustment can now be done viapq.
To save the chosen value press ENTER.
It is advisable to have the panel and/or the review of the menus near by during the reading of the
menus.
If none of the press buttons are activated for one minute the control will automatically return to the
main menu.
If you are in the middle of the programming when the control returns to the main menu all data will
be saved if they previously are saved by pressing ENTER. It is always possible to return to the
programming to continue.
