User select
The menu CUSTOM OPTIONS overrides the operating mode of the main menu by activating an
external switch.
”VENTILAT”: There is a possibility here to run with a higher or lower speed on the air exhaust and
air inlet for a limited amount of time. The external pressure will activate the function. The function
has high priority.
”exhaust” and ”inlet”: These two options increase or reduce the velocity of the exhaust or inlet air
respectively for a limited period of time. The remaining functions of the operating mode remain
unaltered. An external switch activates the timer function.
Another external switch ensures that the fans remain at the desired ventilation level until the switch
is turned off.
”extend”: This option controls the velocity of the exhaust and inlet air and can be used to change
the temperature of the inlet air for a limited period of time. An external switch activates the timer
function.
“OFF”: Deactivates the external switch.
”ext offs”: Provides the possibility of choosing an afterflow time and changing the set point in exter-
nal rooms.

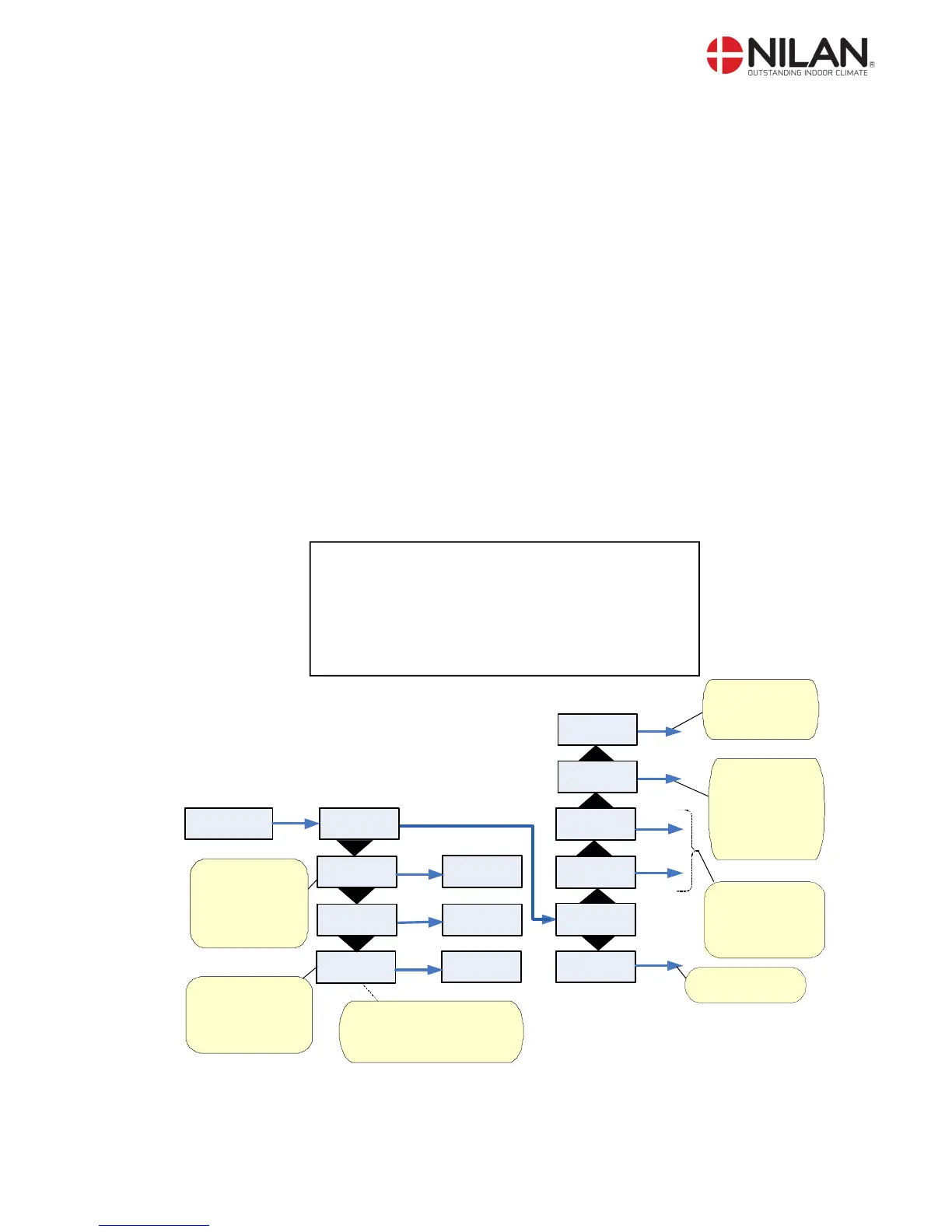

Use of the CTS602 panel:
- press ESC to go one step back in the menu
- press qpto move up or down in a menu or to adjust an
activated menu
- press ENTER to activate a menu
- press ENTER to confirm a menu
- press OFF to turn off the unit
- press ON to turn the unit on
Time and speed must
be set in the same
way as described
under SELECT
EXTEND.
Required period in
which the selected
function is to remain
operative: stated in
hours and minutes.
Max 8 hours.
Switches user option
off.
Required ventilation
step: 1-4.
OFF allows the system
to be shut down via an
external switch.
TIME
FLOW
ENTER
ENTER
TEMP
TIME
00:00
FLOW
>4<
TEMP
23
ENTER
ENTER
ENTER
”00:00"
”OFF”
ENTER
ENTER
ENTER
°C
”>4<”
”23" °C
SELECT
SELECT
SELECT
SELECT
”EXTEND”
”INLET”
”EXHAUST”
SELECT
”EXTEND”
USER
SELECT
Required room temperature
(5-30°C).
T15 is the temperature sensor to
be used to control the system.
”EXT OFFS”
ENTER
SELECT
Choose the
afterrunning and
displacement of
the setpunkt, for
externak heating.
See SELECT
EXTEND
”VENTILAT”
ENTER
SELECT
Possibility to run at
a higher or lower
rate. High priority.
