System dimensions

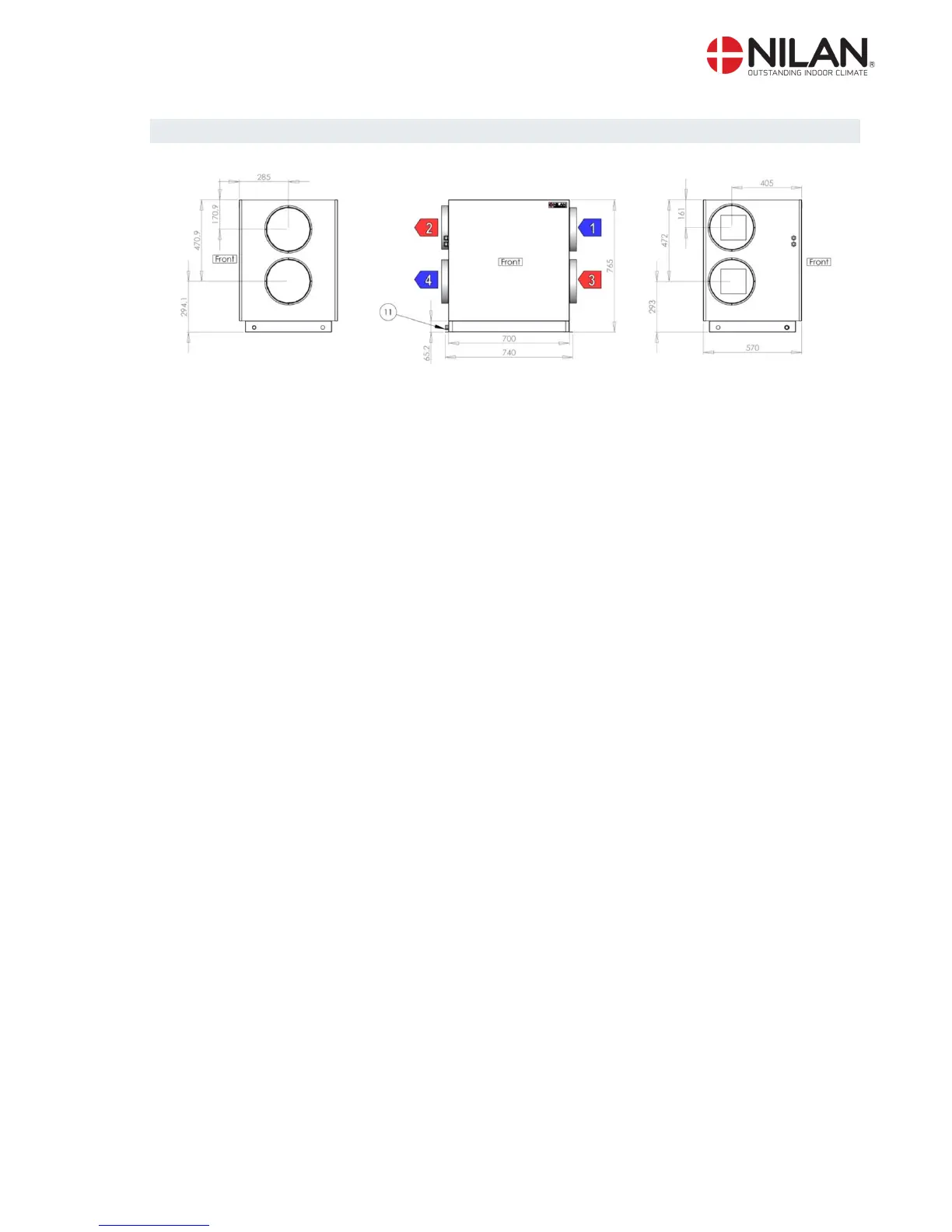

Figure 20: System dimensions
1: Udeluft, Fresh Air, Aussenluft, Air neuf
2: Tilluft, Air Inlet, Zuluft, Air pulse
3: Fraluft, Air Exhaust, Abluft, Air repris
4: Afkastluft, Air Discharge, Fortluft, Air extrait
11: Kondensafløb, Evacuation condersats, Kondensatmuffe, Vacuation des condensats
