May be subject to change page 4 of 27
Review of the thermometer sensors

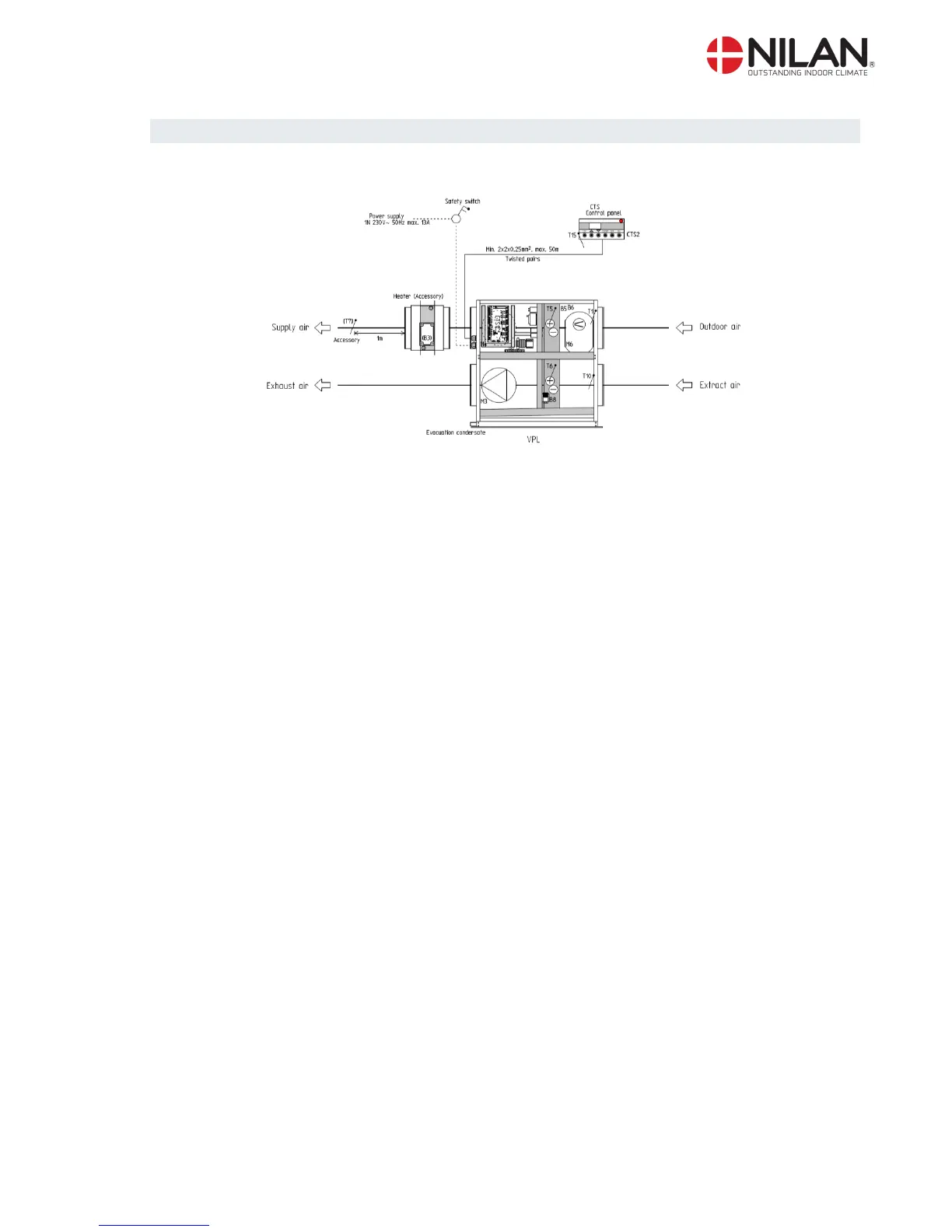

Figure 1: Thermometer sensors
Explanation for figure 1:
T1 - is the thermometer sensor for the fresh air and should be placed at the north side of the
building.
T2 - is the thermometer sensor for the inlet air at the fan (without heating surface).
T5 - shows the temperature of the condenser.
T6 - shows the temperature of the evaporator.
T7 - is the thermometer sensor for the inlet air after a heating surface.
T10 - is the thermometer sensor for the exhaust air in a room (accessory).
T15 - is the thermometer sensor in the CTS 602 panel.
The temperature of the sensors can be read in the “Show data” menu.
