Heating surface
The menu HEATING SURFACE is only accessible when the system has a heating surface in-
stalled and when the control has been set up to a heating surface in the SERVICE MENU.
” ” indicates that the menu point flashes and can be set to another value.
Use of t he CTS 600 panel :
- pr ess ESC t o go one st ep back i n t he menu
- pr ess qpt o move up or down i n a menu or t o
adj ust an act i vat ed menu
- pr ess ENTER t o act i vat e a menu
- pr ess ENTER t o conf i r m a menu
- pr ess OFF t o t ur n of f t he uni t
- pr ess ON t o t ur n t he uni t on
HEATING
SURFACE
SELECT
ON
SELECT
”OFF”
SELECT
”ON”
ENTER ENTER
ENTER
ENTER
When a heating surface is
installed T2 is replaced
with T7, which is the
sensor placed in the inlet
at the heating surface.
If you wish to disconnect the
heating surface this position should
be chosen.
The frost-protection is still active
and T7 is the active temperature
sensor for the inlet air.

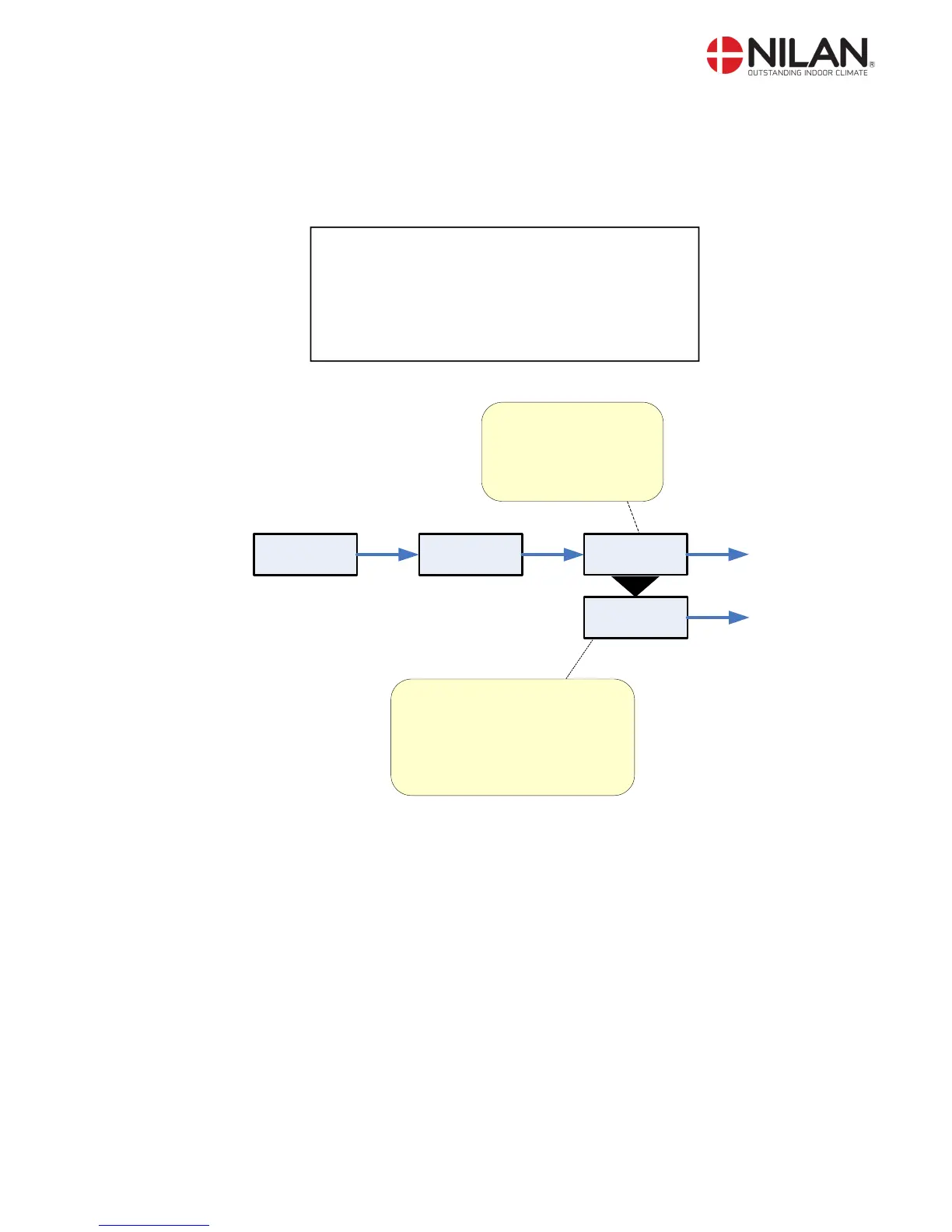

Figure 12: The ”Heating surface” menu
