INSTALLING THE PADS (REV SYSTEM)
1 Make sure the Scrub Deck is in the RAISED position. Make sure the Key Switch (A) is off (O).
CAUTION !
Turn the key switch off (O) and remove the key, before changing the pad
See Figure 4.
2 Daily Scrubbing: Slide a daily scrubbing pad (CD) or Microfi ber Pad (CA) under the pad driver, center it on the fi xed pad driver (CB) and lift it upwards and
press it onto the harpoon face of the pad driver.
3 Floor Finish Removal: Install a new red pad (CD) to the pad driver (CB) as described in step 2 above. If using the optional double sided Velcro (CE), attach
it to the center of maroon SPP pad (CC) and slide this assembly under the red pad and center it and then press upwards to attach this assembly to the red
pad. If the optional double sided Velcro is not used, install a new red as described in step 2 above and place a new maroon SPP pad on the fl oor centered
on the red pad. Lower the deck to the fl oor on top of the maroon SPP pad and check that it is centered.
If the optional double sided Velcro is not used: when the pad needs to be changed or fl ipped over, raise the scrub deck and remove both pads before
transporting the machine. This will prevent them from being run over.
NOTE: Never attach a maroon SPP pad directly to the pad driver, damage to the pad driver will result causing replacement.

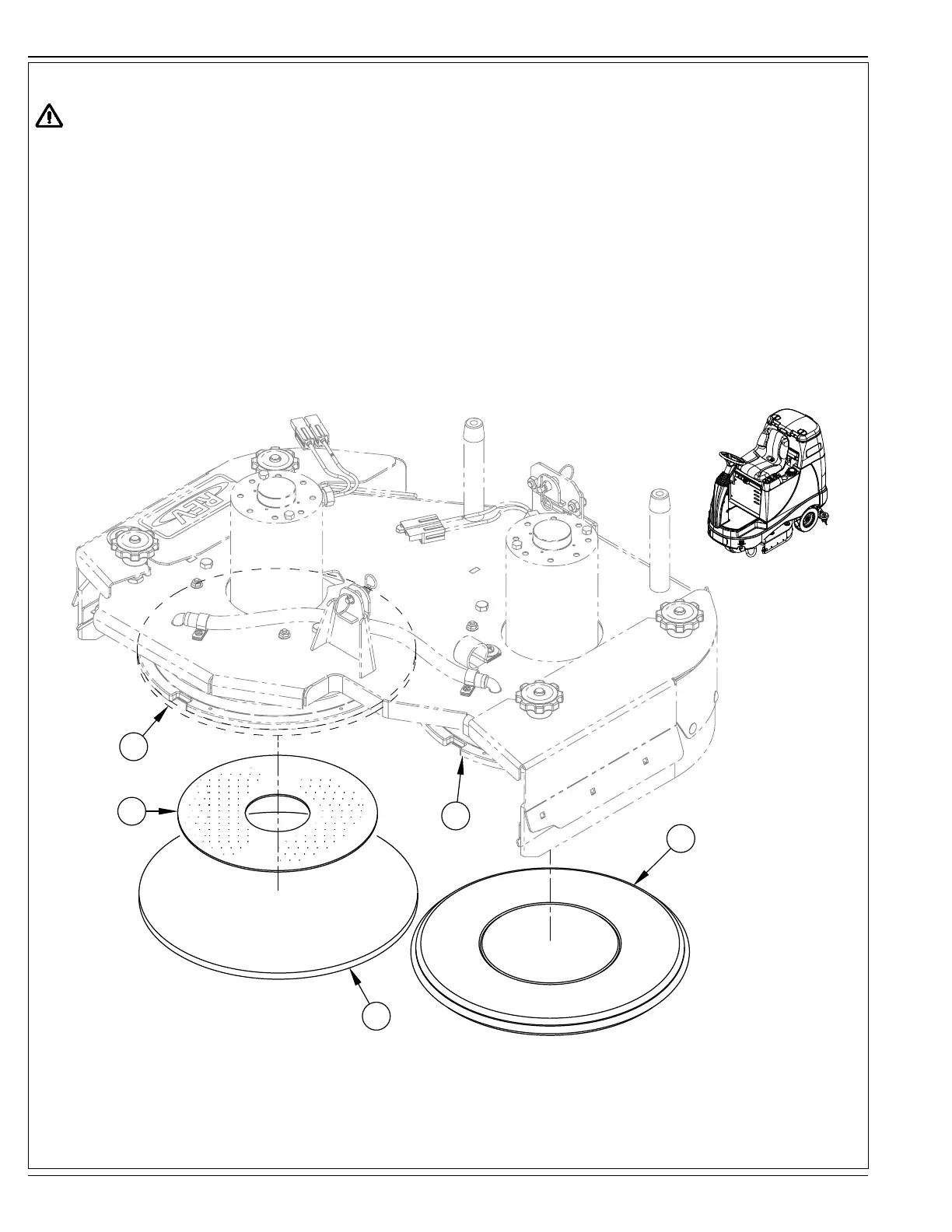

FIGURE 4
CA
CB
CC
CE
CD
