Service Manual: SC750, SC800, SC 750 ST, SC800 ST
Form Number 56043150 Page 110
Removal and Installation
Solution Valve
1. Work near a oor drain for convenient clean up if possible.
2. Turn the key switch on and lower the brush head by pushing the Scrub On/O switch.
3. Unplug the deck actuator to prevent deck from rising.
4. Turn the key switch o.
5. Close soluon shut o valve.

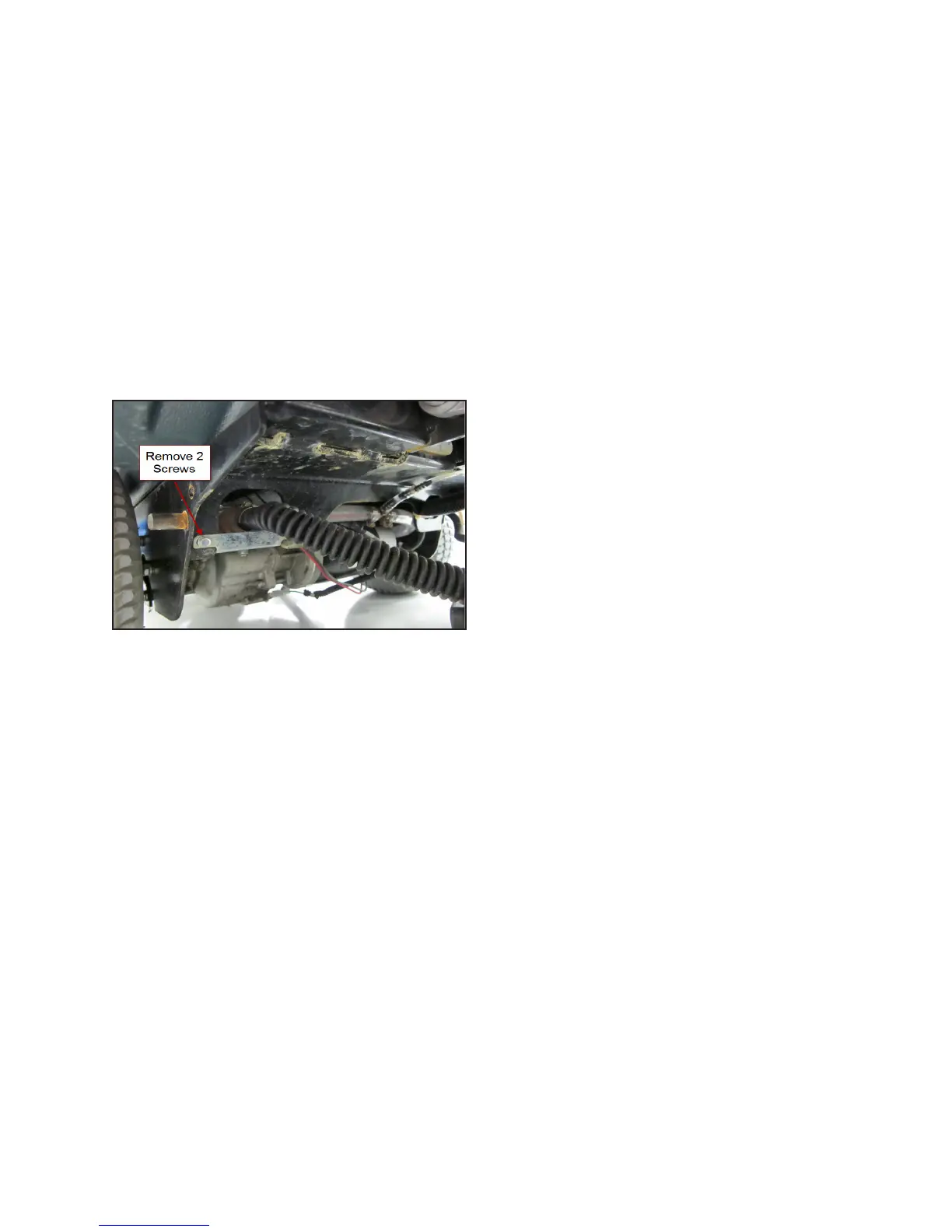

6. Remove soluon mounng plate screws.
7. Remove hose clamps and hoses.
8. Disconnect electrical connector.
9. Reassemble in reverse order.
Solution Tank
1. Empty recovery and soluon tanks.
2. Remove brush head.
3. Remove brush head actuator.
4. Remove recovery tank.
5. Remove baeries.
6. Remove brush head actuator support
a. Remove two top bolts.
b. Remove lower through bolt and nut.
7. Remove handle assembly.
