Service Manual: SC750, SC800, SC 750 ST, SC800 ST
Form Number 56043150 Page 74
Removal and Installation
Vacuum Motor
1. Turn o key switch, drain recovery tank and li recovery tank up.

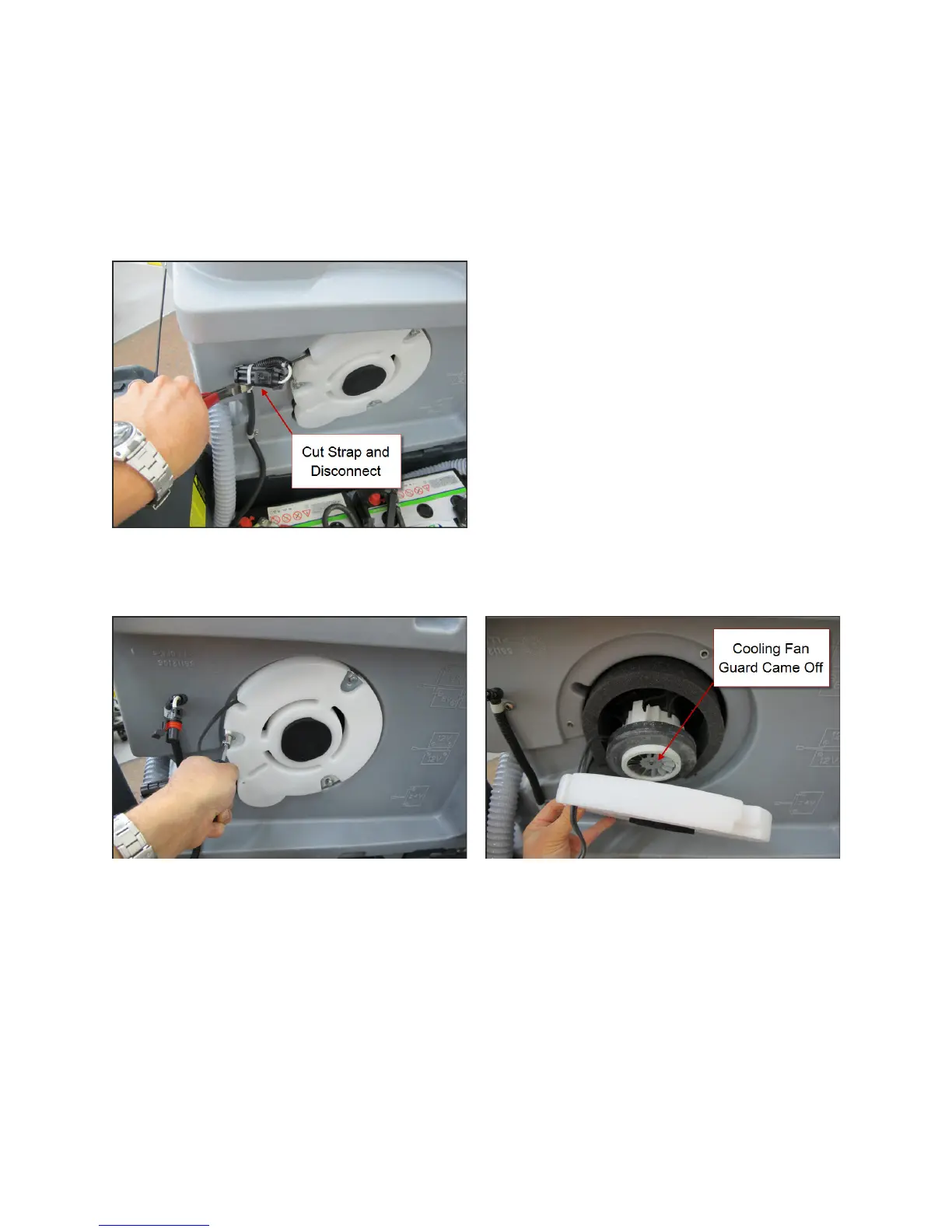

2. Cut e straps securing wiring and disconnect vacuum motor electrical connecon.
3. Remove vacuum motor cover mounng screws and cover. Note: The vacuum motor cooling fan guard may come
o the end of the motor. Do not run the motor without the guard in place. Make sure that it is put back on dur-
ing reassembly.
