Service Manual: SC750, SC800, SC 750 ST, SC800 ST
Form Number 56043150 Page 39

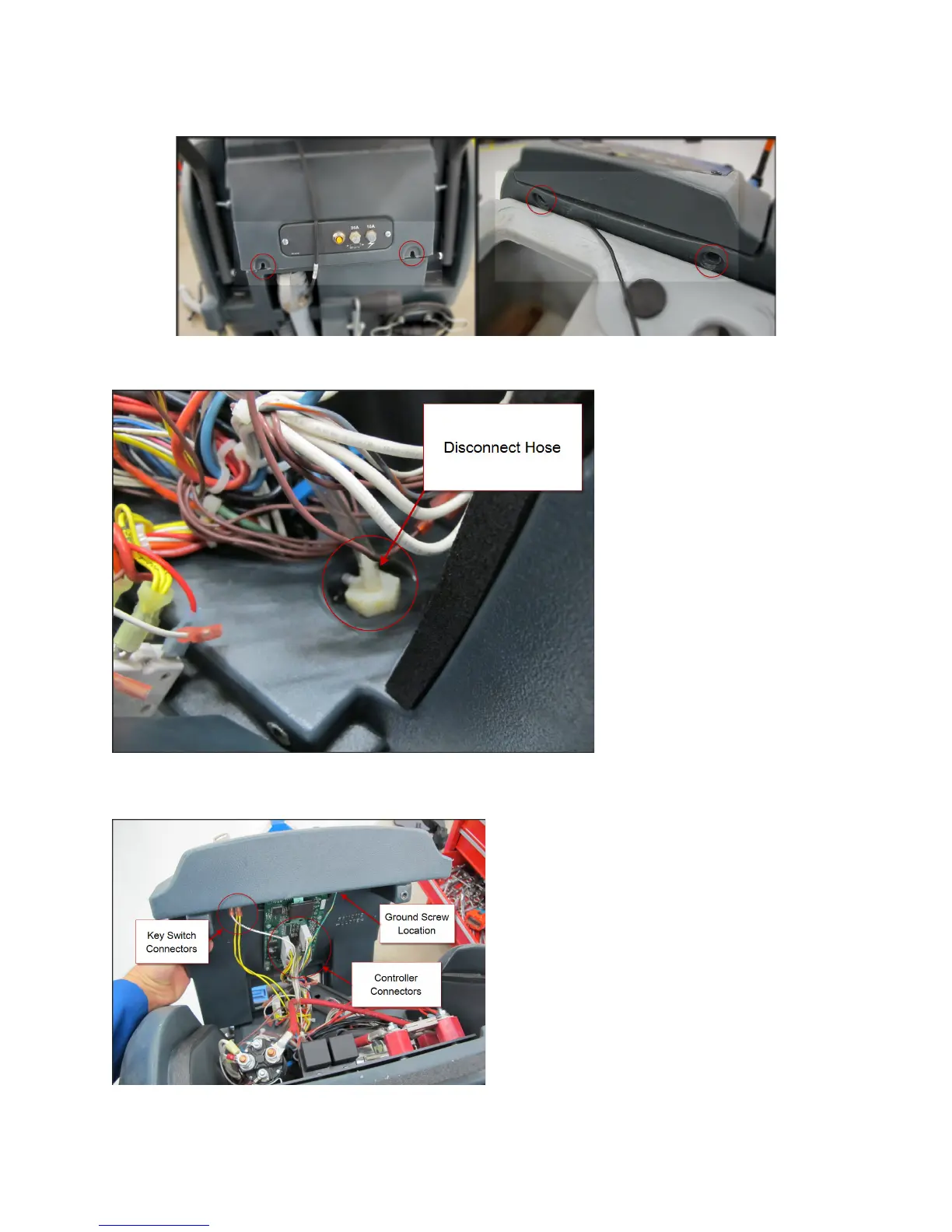

5. Remove electrical panel cover mounng screws.
6. Tip cover away from machine and disconnect the clear pressure sensor hose from the ng at the soluon tank.
DO NOT TRY TO DISCONNECT THE HOSE FROM THE CIRCUIT BOARD.
7. Disconnect electrical connectors from the Main Machine Controller and Key Switch. Remove screw securing
ground wire to control switch interface panel.
