9098684000(3)04/2016 A BR 652 - BR 752 - BR 752C
MACHINE DESCRIPTION
MACHINE STRUCTURE

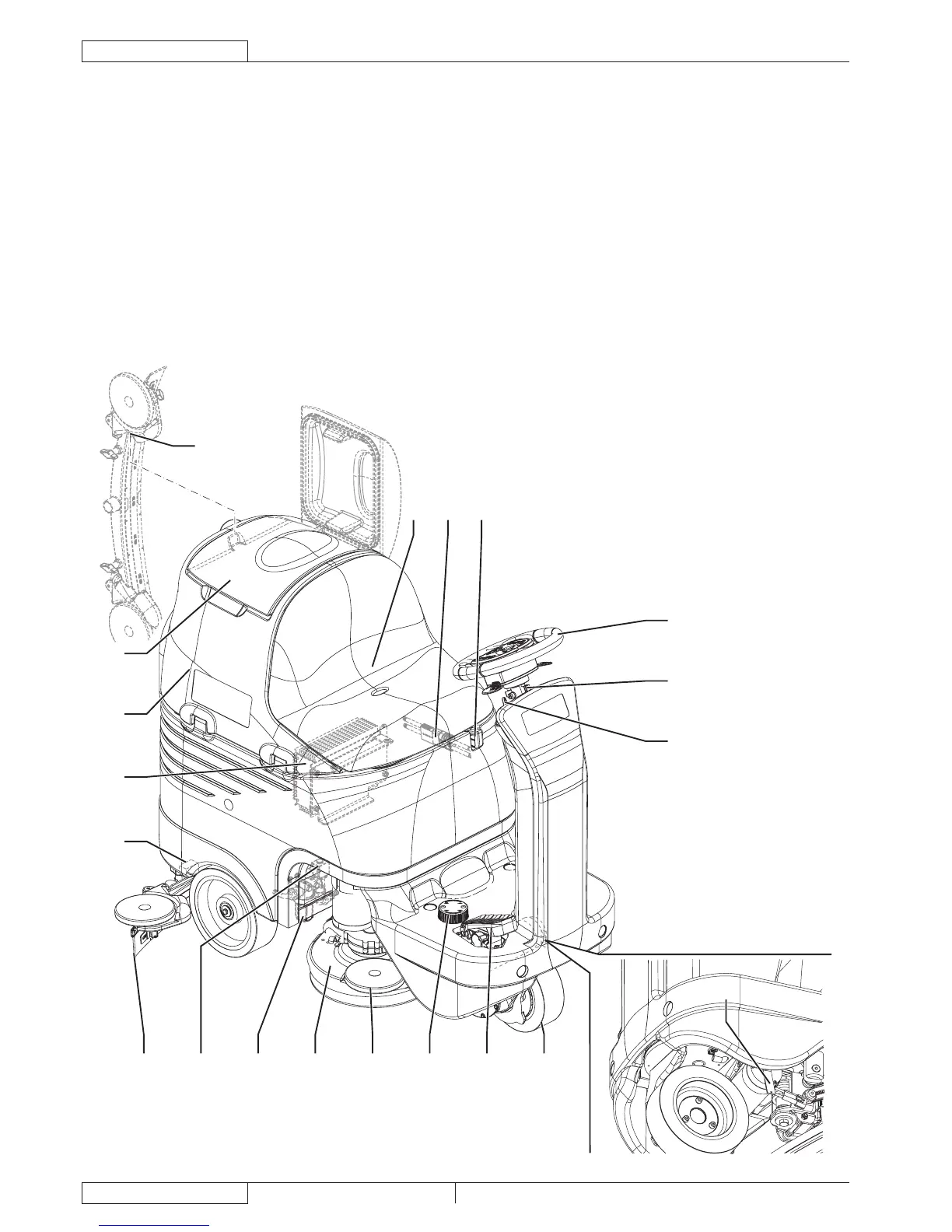

1. Steering wheel with control panel (see the following
paragraph)
2. Steering wheel height control lever
3. Ignition key
4. Drive pedal
5. Heel support height adjustment
6. Front steering, driving and braking wheel
7. Electromagnetic brake unlocking lever
8. Emergency push-button
9. Battery connector
10. Brush/pad-holder deck
11. Bumper wheel
12. Solution lter
13. Solenoid valve
14. Solution/clean water tank opening/closing valve
15. Squeegee hook
16. Battery charger (optional)
17. Seat
18. Squeegee blades assembly
19. Dumping recovery tank assembly
20. Recovery tank cover
18 13 12 10 11 546
7
17 98
15
