BATTERY INSTALLATION AND BATTERY TYPE SETTING (WET OR GEL/AGM)
Battery installation
1. Open the cover (20) and check that the recovery tank (19) is empty, otherwise empty it with the drain hose (24).
2. Close the cover (20).
3. Carefully lift the tank assembly (44).
4. Install the batteries and connect them according to the diagram (38).
Battery type setting
Set the electronic board of the machine and the battery charger (optional) according to the type of batteries installed (WET or GEL/
AGM) as shown below:
5. Turn the ignition key (58) to “I” and, in the very rst seconds of machine operation, detect the current setting by counting the
number of ashes of the battery warning lights (62), as shown in the following table:

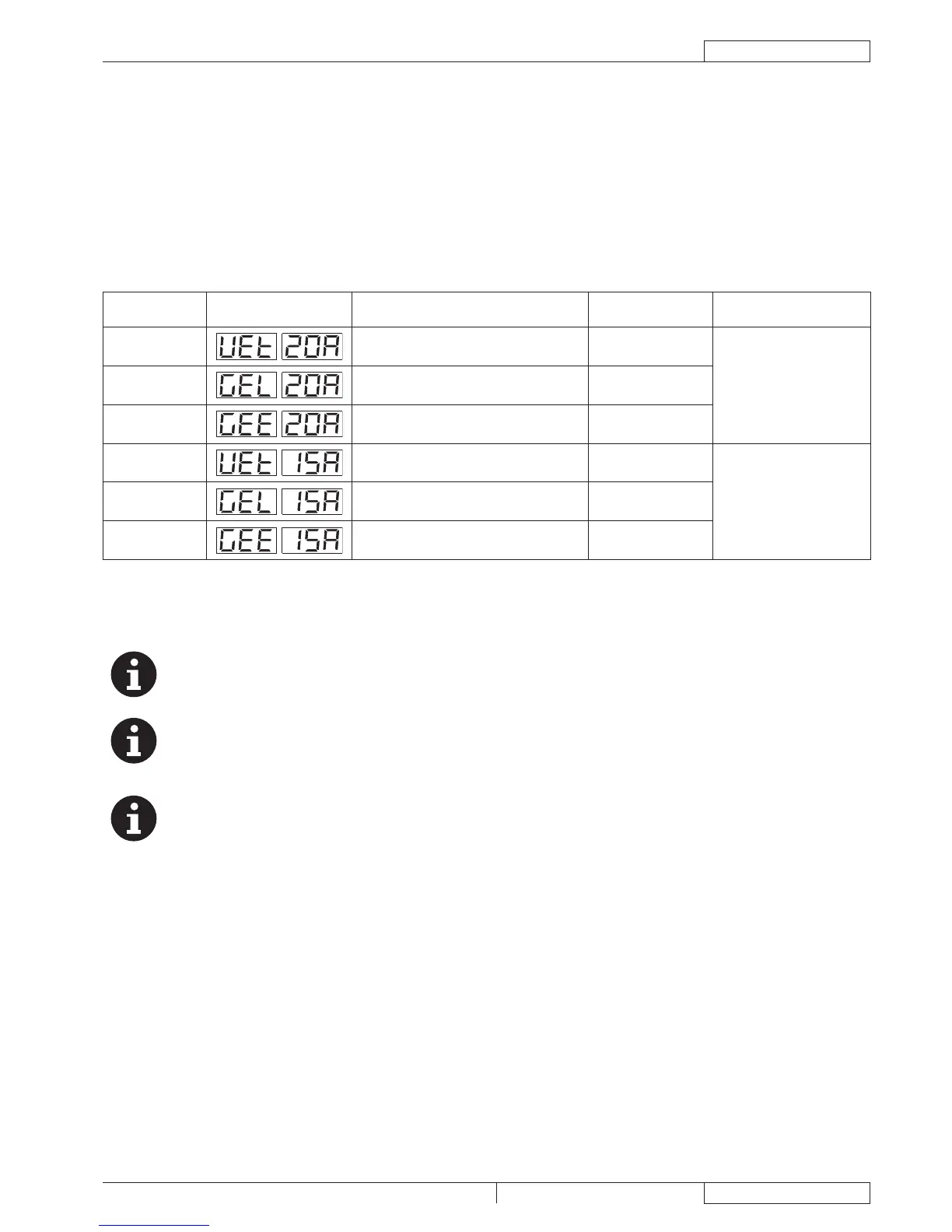

SETTING DISPLAY (71)
BATTERY WARNING LIGHT INDICATION
(62)
BATTERY TYPE CHARGING CURRENT
1 4 ashes of the red warning light WET
STANDARD2
4 ashes of the green warning light GEL-AGM
3
4 ashes of the yellow warning light GEL EXIDE
®
type
4
2 ashes of the red warning light WET
REDUCED (see note)5
2 ashes of the green warning light GEL-AGM
6
2 ashes of the yellow warning light GEL EXIDE
®
type
6. If the setting is to be changed, perform the following procedure.
7. Turn off the machine by turning the ignition key (58) to “0”.
8. Press and hold the switches (67) and (63) at the same time, then turn the ignition key (58) to “I”.
9. Release the switches (67) and (63) at least 5 seconds after starting the machine.
10. Within 3 seconds, shortly press the switch (63) to go to the next setting (1 to 6 in cyclic sequence).
NOTE
When performing steps 9 and 10, the settings are shown on the display (71) too, by the code in the table.
NOTE
When using batteries with a capacity lower than 160Ah@5h (in case of doubt, refer to the battery documents), to avoid
battery overheating during charging procedure, use the REDUCED charging current with setting 4, 5 or 6 shown in the
table, according to the type of batteries installed.
NOTE
The battery charger (optional) must be set according to the type of batteries.
Battery charging
11. Charge the batteries (see the procedure in Maintenance chapter).
