TRANSPORTING THE MACHINE
CAUTION!
Before transporting the machine on an open truck or trailer, make sure that . . .
• All access doors are latched securely.
• The machine is tied down securely - see tie-down locations (6).
• The machine parking brake is set.
TOWING OR PUSHING A DISABLED MACHINE
CAUTION!
OTHER MANUALS AVAILABLE
The following manuals are available for your Rider Scrubber/Sweeper:
• Parts List - Form Numbers 56042440 (main parts list)
56042445 (Hydraulic Systems)
56042449 (Options/Accessories)
56042478 (Engine Systems 2007 certied)
• Operation Manual - Form Numbers 56041580 (English, Spanish)
• Mechanical Repair Service Manual 56043094
• EngineManuals(TierI)
1.6L Industrial Engine Operator Manual (excerpt from 16LECSS) 56041564
1.6L Industrial Engine Service Manual 36100009*
1.6L Emission Certied Industrial Engine Emission Control System Service Manual 16LECSS*
• EngineManuals(TierII)
1.6L Industrial Engine Operator Manual (excerpt from 16LECSS) 56041564
1.6L Industrial Engine Service Manual 36100009*
PSI Tier 2 1.6L PFI Certied Engine Service Manual G/LP PSI1P6LPFI-A*
V1505 Kubota Diesel Engine Service Manual (WSM English) 97897-02432
V1505 Kubota Diesel Engine Service Manual (WSM English, French, German) 97897-01640
V1505 Kubota Diesel Engine Operator Manual (English, French, German, Italian, Spanish) 16622-8916-3
*Available in electronic format only
BOTTOM VIEW OF HYDROSTATIC PUMP
GENERAL INFORMATION
revised 7/08
The machine’s drive propelling pump is manufactured with a selectable
tow valve. This valve prevents damage to the hydraulic system when
the machine is being towed/pushed short distances without use of the
engine.
To access the valve, open the Engine Compartment Door (22) and lift off
the Right Engine Compartment Access Panel (37). Locate the valve as

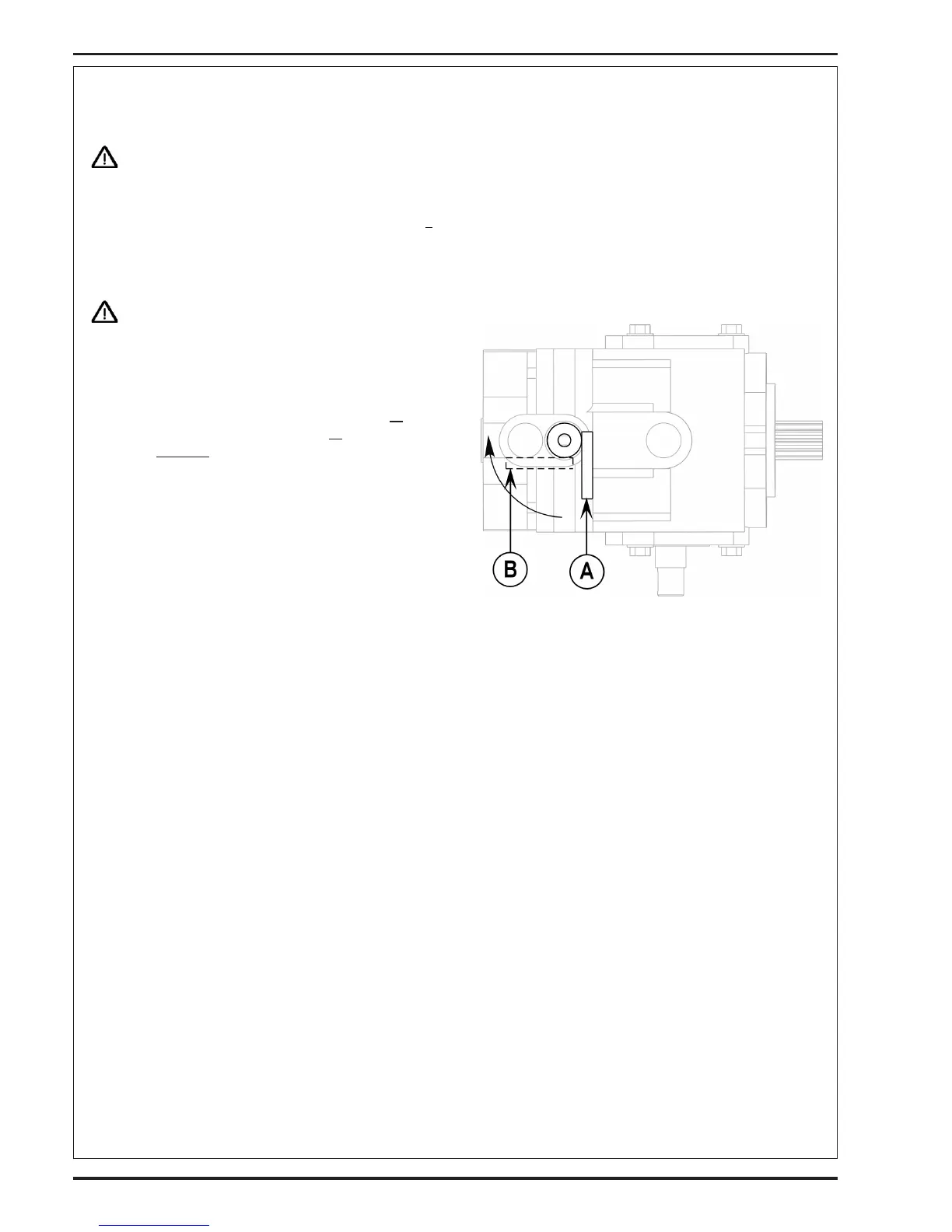

shown on the underside of the hydrostatic pump by reaching under the
radiator. Turn the valve 90 degrees, this disengages the hydrostatic lock
between the motor and pump.
The hydrostatic pump can be damaged if the machine is towed with
the valve in the normal working position (A). Reference the illustration
below for the normal working setting (A) and the free wheeling towing
setting (B). Note: If the tow valve is left in free wheeling (B) position the
hydrostatic pump can’t drive the machine FWD or REV. No damage will
result, just re-set valve to the normal working setting (A). Tow or push
machine no faster than a normal walking pace (2-3 miles per hour) and
for short distances only. If the machine is to be moved long distances
the drive wheel needs to be raised off the oor and placed on a suitable
transport dolly.
