Nilfisk-Advance Captor 4800 - Hydraulic Component Location

74 - FORM NO. 56043093 Captor
™
4300, 4800, 5400
HYDRAULIC SYSTEM

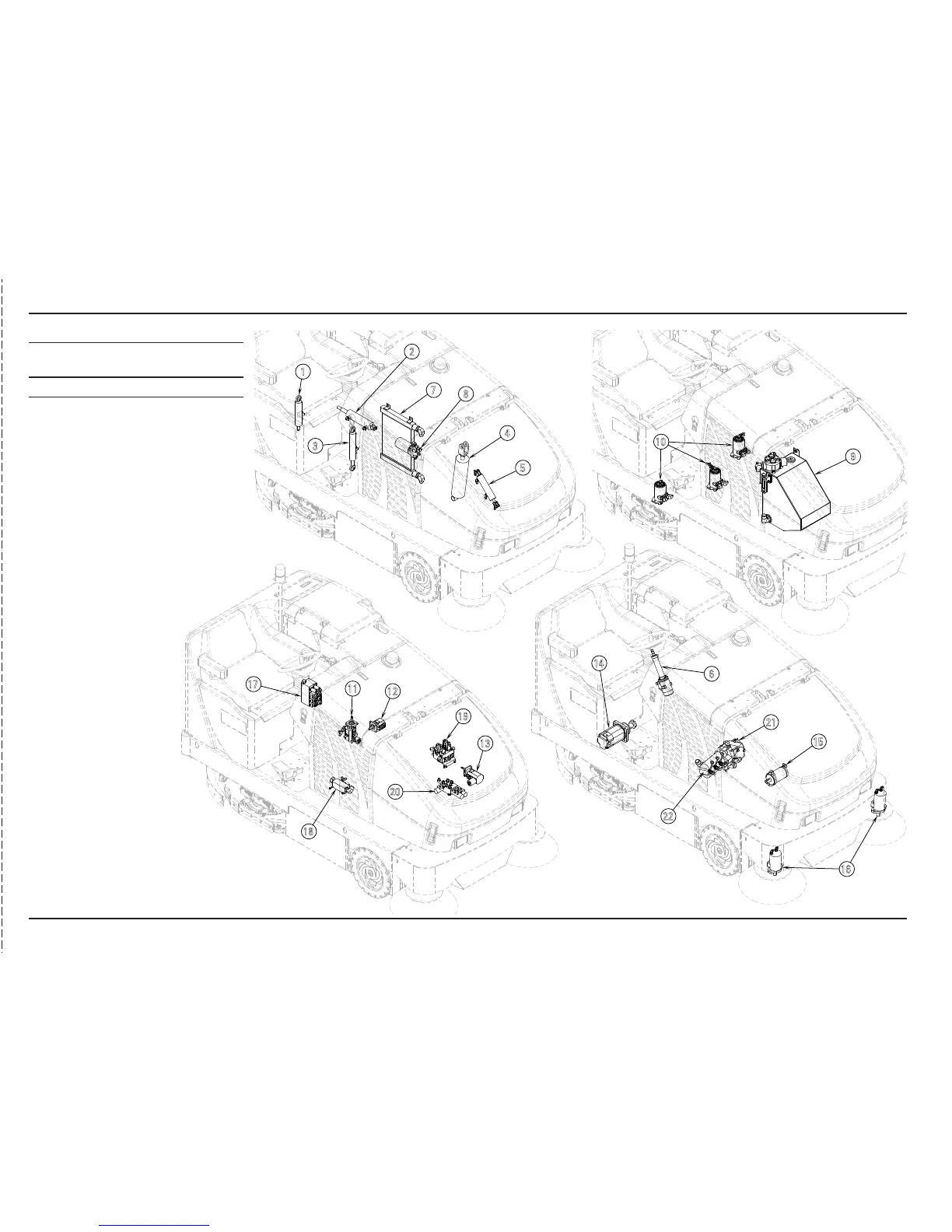

HYDRAULIC COMPONENT LOCATION
Item Qty Description
1 1 Squeegee Cylinder Assembly
2 1 Steering Cylinder Assembly
3 1 Scrub Cylinder Assembly
4 1 Hopper Lift Cylinder Assembly
5 1 Hopper Door Cylinder Assembly
6 1 Steering Unit Assembly
7 1 Oil Cooler Assembly
8 1 Oil Filter Assembly
9 1 Reservoir Assembly
10 3 Scrub Motor Assembly
11 1 Squeegee Fan Motor Assembly
12 1 Engine Fan Motor Assembly
13 1 Impeller Motor Assembly
14 1 Wheel Motor Assembly
15 1 Main Broom Motor Assembly
16 2 Side Broom Motor Assembly
17 1 Squeegee/Brush Cylinder Valve Block Assembly
18 1 Manifold Assembly
19 1 Main Relief and Broom/Scrub Motors Valve Block Assy.
20 1 Hopper and Side Broom Valve Block Assembly
21 1 Piston Pump Assembly
22 1 Triple Gear Pump Assembly
1
2
3
7
8
4
5
10
9
6
14
15
21
22
16
17
11
12
18
20
19
13
