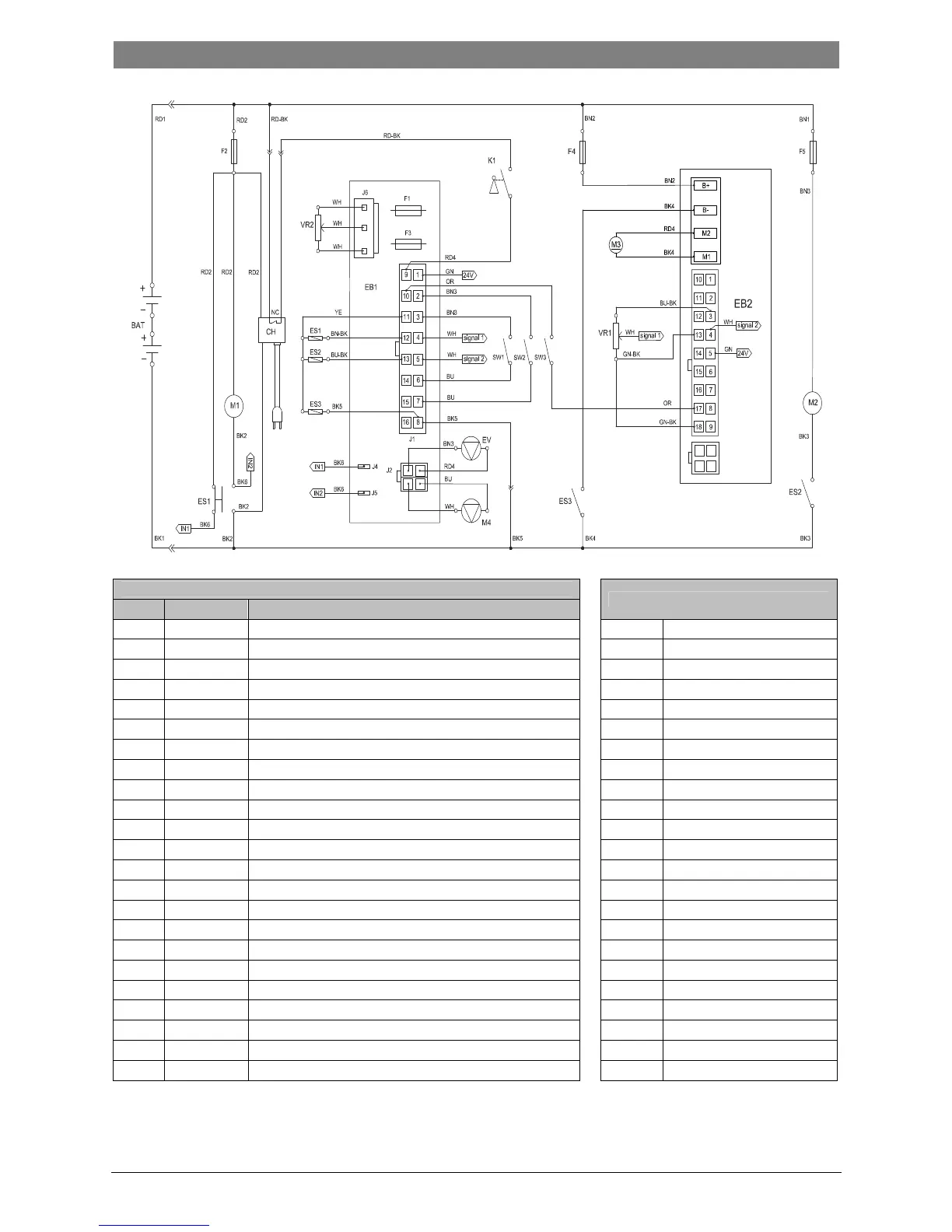

WIRING DIAGRAM (MACHINE WITH TRACTION)
COMPONENTS
WIRE ROD
Key CODE Description
BAT N/A 24V BATTERIES
RD1 RED/6AWG
CH VS10204 BATTERY CHARGER
RD2 RED/10AWG
EB1 VS13201 CONTROL PANEL BOARD
RD4 RED/20AWG
EB2 VS10209 ELECTRONIC BOARD (TRACTION SYSTEM)
BK1 BLACK/6AWG
ES1 9095127000
ELECTROMAGNETIC SWITCH 24V (BRUSH MOTOR)
BK2 BLACK/10AWG
ES2 VS10201 RELAY 24V (VACUUM MOTOR)
BK3 BLACK/12AWG
ES3 VS10201 RELAY 24V (TRACTION SYSTEM)
BK4 BLACK/14AWG
F1 VS13208 LOW POWER CIRCUIT FUSE
BK5 BLACK/20AWG
F2 ZD48320 CIRCUIT BREAKER (BRUSH MOTOR)
BK6 BLACK/16AWG
F3 VS13209 BRUSH RELEASE FUSE
RD-BK
RED-BLACK/20AWG
F4 VF99012 CIRCUIT BREAKER (TRACTION SYSTEM)
GN GREEN/20AWG
F5 ZD48320 CIRCUIT BREAKER (VACUUM MOTOR)
GN-BK
GREEN-BLACK/20AWG
K1 9100001354
KEY SWITCH
BN1 BROWN/12AWG
M1 VS10702 BRUSH MOTOR
BN2 BROWN/14AWG
M2 VF90520 VACUUM MOTOR
BN3 BROWN/20AWG
M3 VS11702 DRIVE MOTOR
BN-BK
BROWN-BLACK/20AWG
M4 VF90282 SOLENOID VALVE
BU BLUE/20AWG
M5 N/A DETERGENT PUMP (**)
BU-BK
BLUE-BLACK/20AWG
SW1 VS10202 SAFETY SWITCH (BRUSH/TRACTION)
OR ORANGE/20AWG
SW2 VS10202 SAFETY SWITCH (BRUSH/TRACTION)
YE YELLOW/20AWG
SW3 VS10202 REVERSING SWITCH
WH WHITE/20AWG
VR1 VS10213 SPEED POTENTIOMETER
VR2 N/A DETERGENT PUMP POTENTIOMETER (**)
(**) = For machines with Chemical Mixing System (Optional)
