FUSE CHECK/REPLACEMENT
1. Turn the ignition key (A, Figure. 26) to "0".
2. Disconnect the power supply cable (C, Figure. 26) from the
electrical mains.
3. Remove the screws (C .Figure27) on control panel (D), then
turn over the PCB to find the fuse (A, B, Figure 27).
4. Check/replace the following fuses:
A) F1 fuse, low power circuit fuse:(5A)
B) F3 fuse, Brush release fuse: (20A)
5. Perform steps 1 to 3 in the reverse order.
6. Check/press down or replace the following breakers:
E) F5breaker, vacuum motor circuit breaker: (30A)
F) F4 breaker, traction system circuit breaker: (12A) (*)
G) F2breaker, brush motor circuit breaker: (30A)
(*): Only for machine with traction

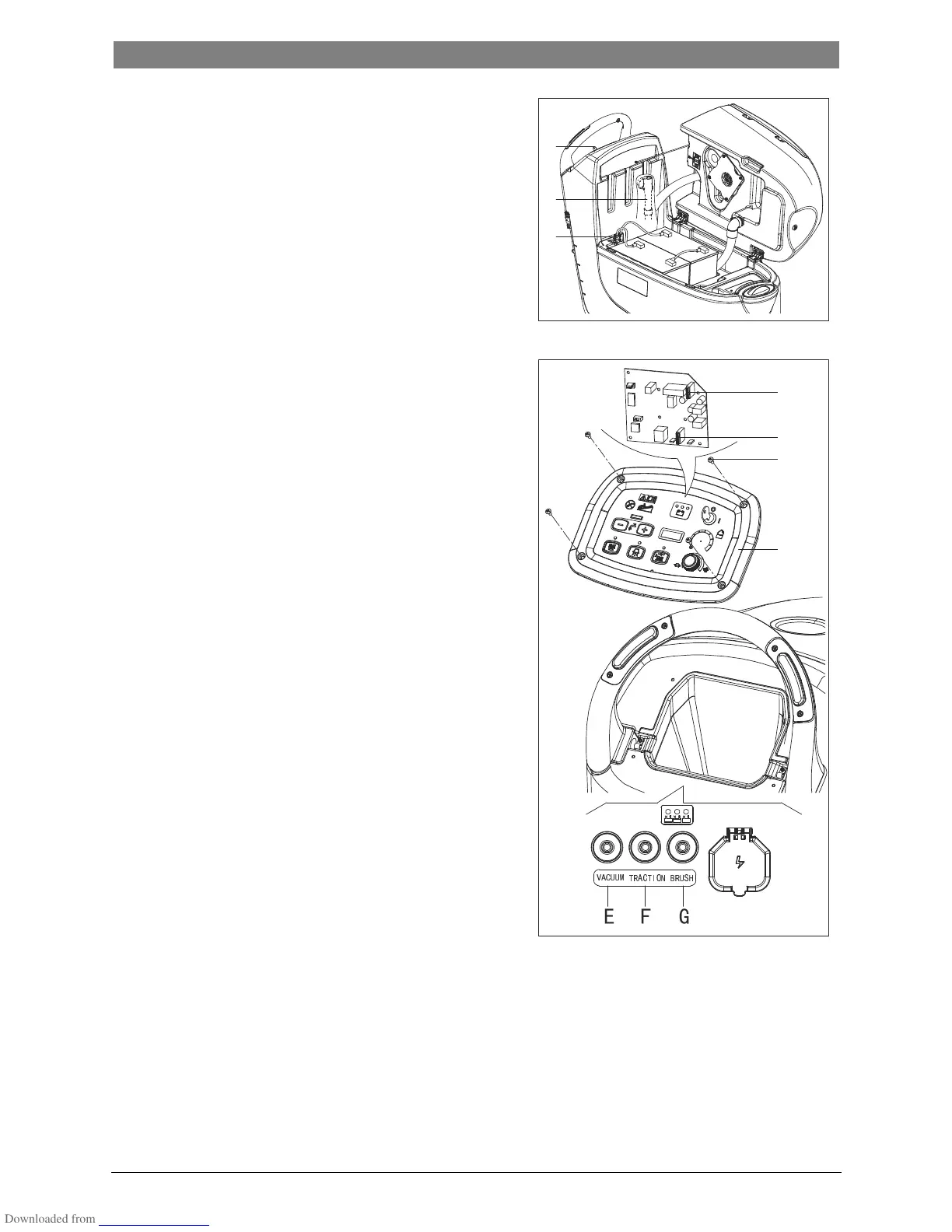

Figure 26
Figure 27
B
C
A
C
D
B
A
VACUUM
TRACTION BRUSH
E F G
