Electrical System 12Service Manual – SC100 - Scrubtec 130

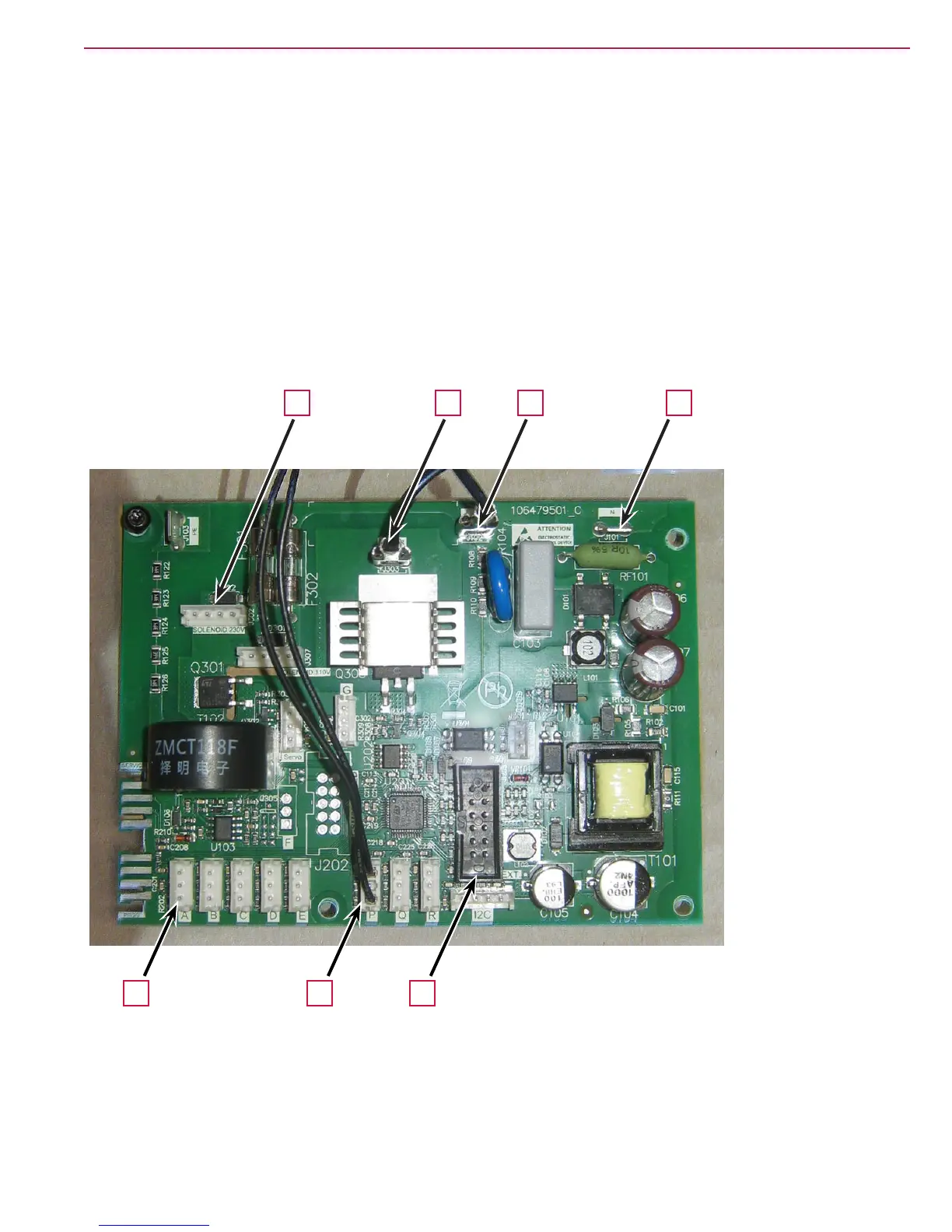

Function Board Connections

• (A) Power supply connection (blue cable).

• (B) Split power supply connection (brown cable) - Main motor (black cable).

• (C) Main motor connection (black cable).

• (D) Dosing pump connection (4-way connector - 2 cables).

• (E) Switch panel connection (12-way connector - 9 cables).

• (F) Solution level connection (3-way connector - 2 cables).

• (G) Parking position microswitch connection (3-way connector - 2 cables).

EFG
