Electrical System 22Service Manual – SC100 - Scrubtec 130

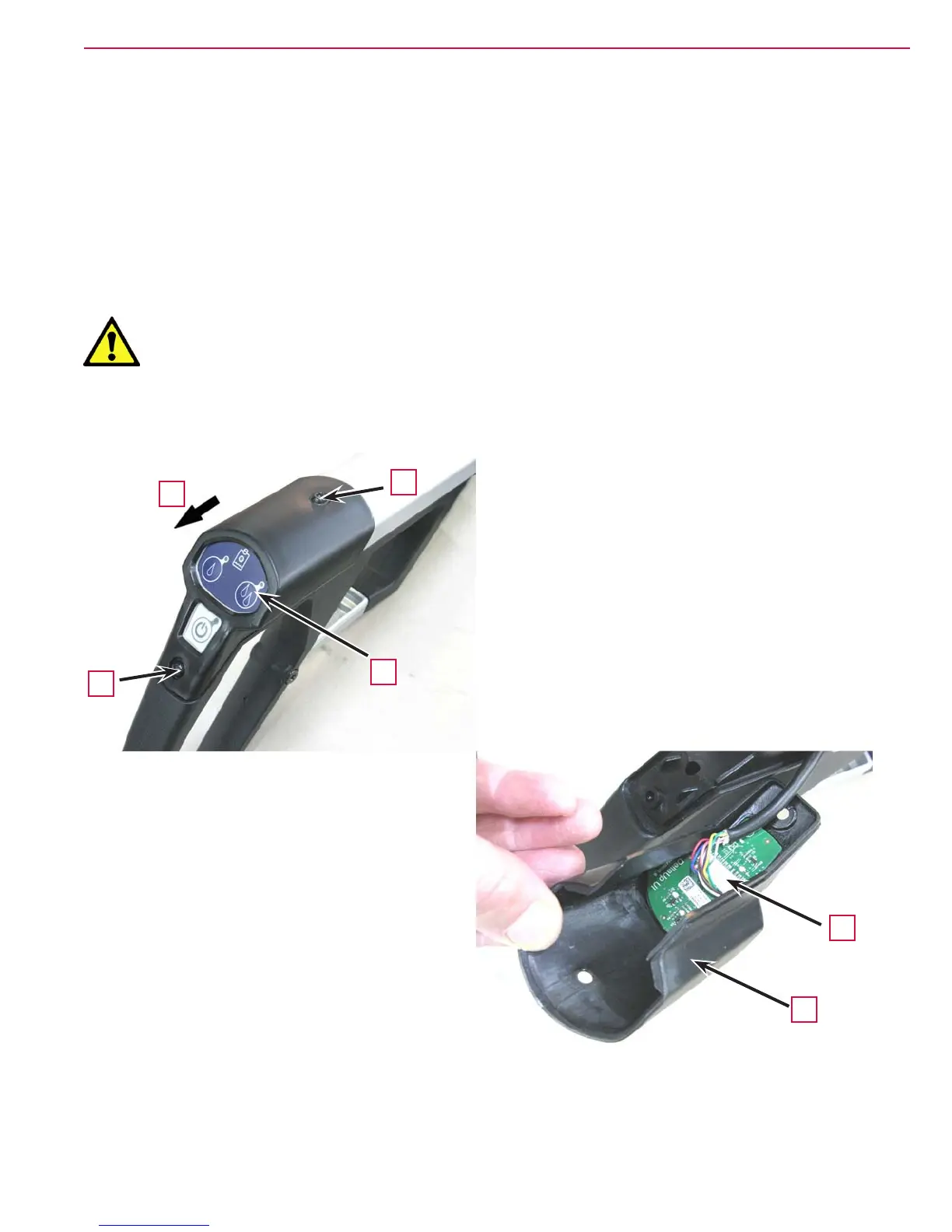

Switch Panel Disassembly/Assembly
Disassembly
1. Set the machine to stop position.
2. Make sure that the machine power supply cable is disconnected from the electrical mains.
3. Remove the screws (A) fastening the switch panel (B).
4. Remove the switch panel (B) by sliding it in the direction of the arrow (C).
5. Disconnect the electrical connector (D) and retrieve the switch panel (B).
Warning! Whentheswitchpanel(B)isreusedorreplaced,takecarewhenhandlingitto
preventitscircuitsandcomponentsfromdamage.
Assembly
6. Assemble the components in the reverse order of disassembly.
